5 | Analog and Frequency Inputs
14/112 Data Logger C 70 Manual Bosch Motorsport

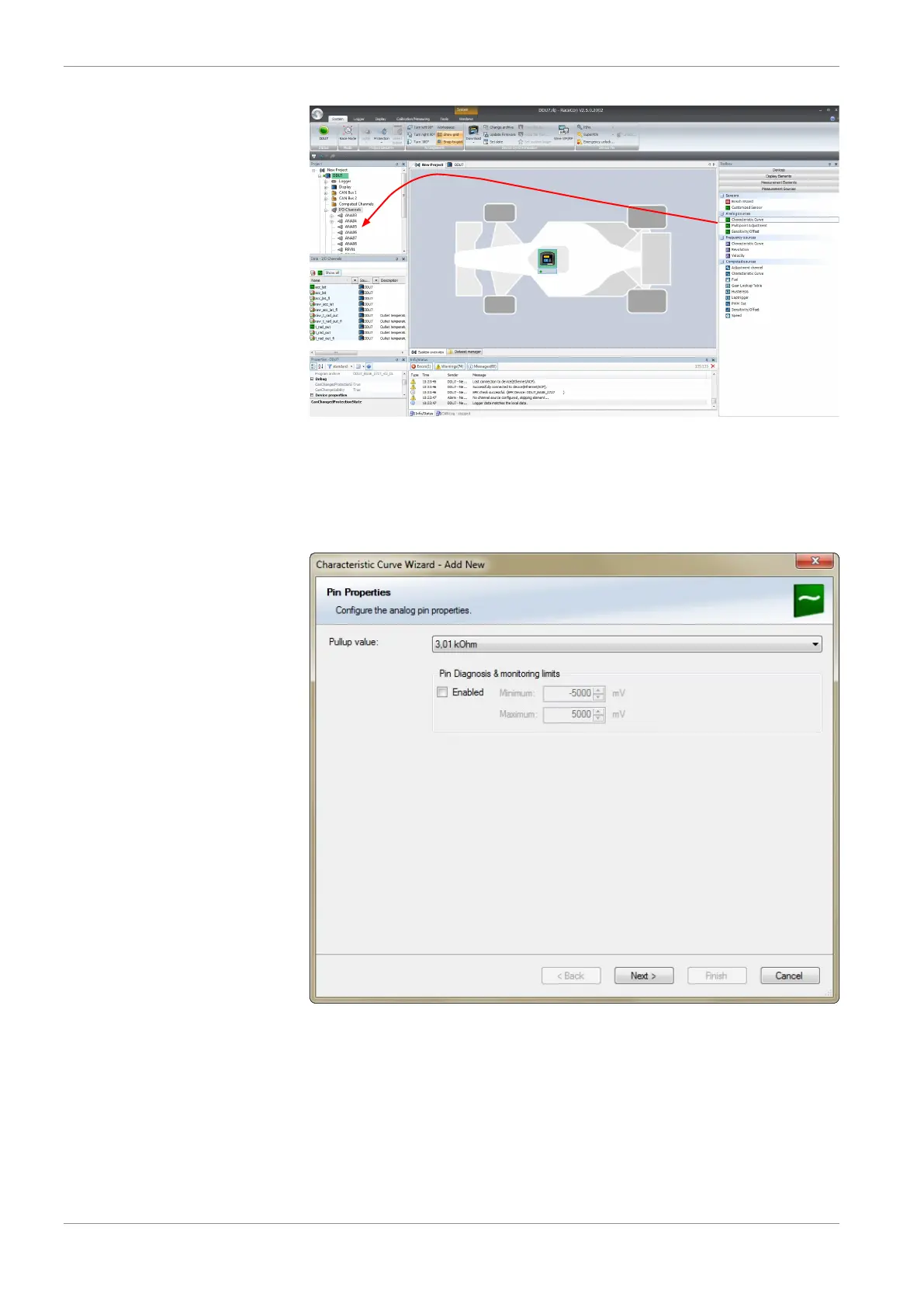

A “Characteristic Curve Wizard” opens.
4. To activate the internal pull up-resistor, check the box. The C 70 pull up-resistor is
used to get a 5 V signal at the analogue channel of the C 70. It allows you, to use a
push-button. The fixed value of the internal pull up-resistor is 3,010 Ohm. If using an
additional external pull up-resistor, set up the overall resistance.
5. Click ‘Next’ when done.
The second part of the “Sensitivity/Offset Wizard” opens.
