Analog and Frequency Inputs | 5
Bosch Motorsport Data Logger C 70 Manual 9/112
5.2 Configuring inputs
5.2.1 Configuring a predefined Bosch sensor with the
'Bosch Sensor Wizard'

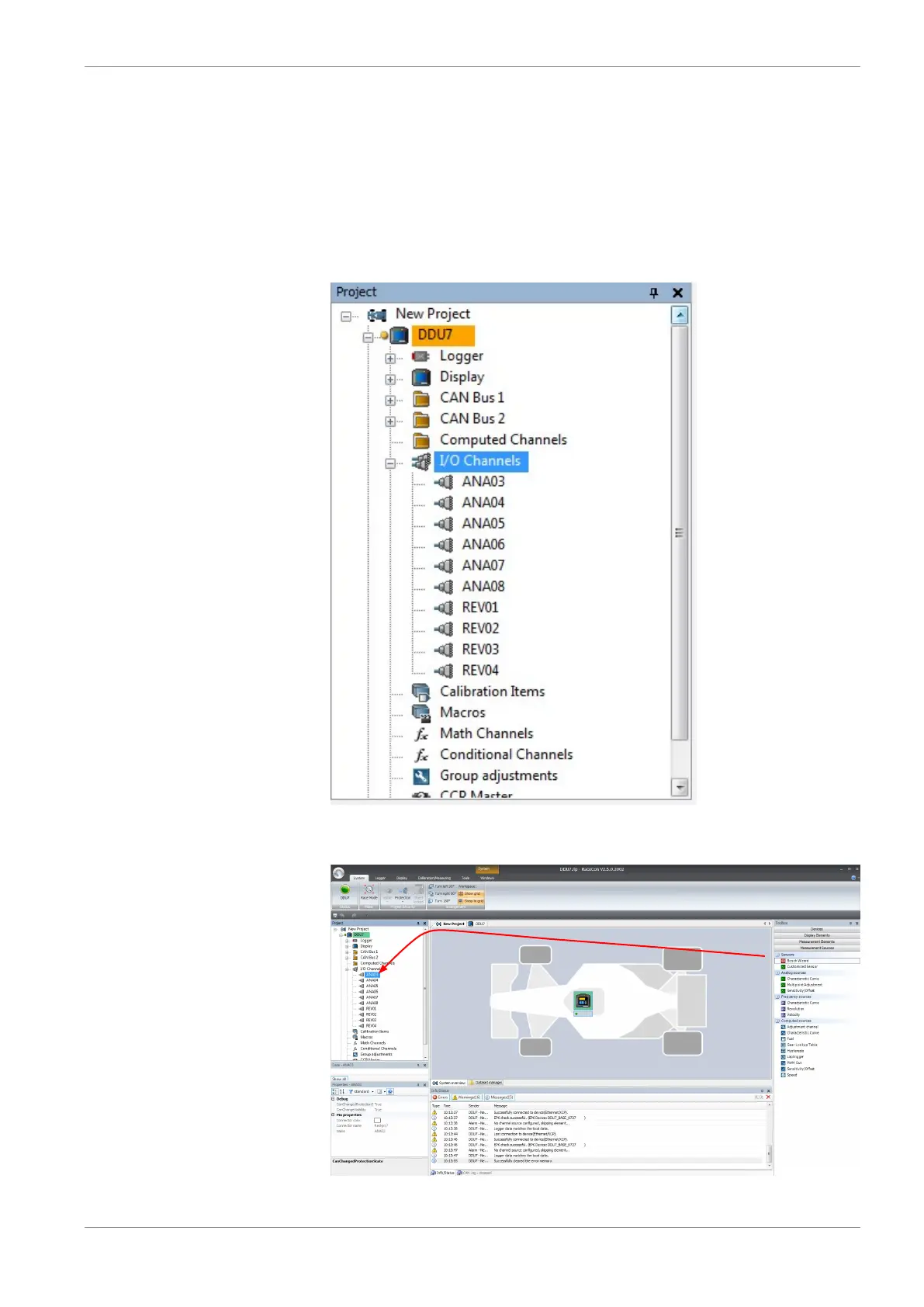

1. Click on ‘Measurement Sources’ in the Toolbox.
2. To expand the list of ‘I/O Channels’, click on ‘+’ in the C 70 Project Tree.
3. Drag the “Bosch Sensor Wizard” from the Toolbox and drop it on the desired analog
input channel in the C 70 Project Tree.
The “Bosch Sensor Wizard” opens.
