Online Measurement | 6
Bosch Motorsport Data Logger C 70 Manual 35/112

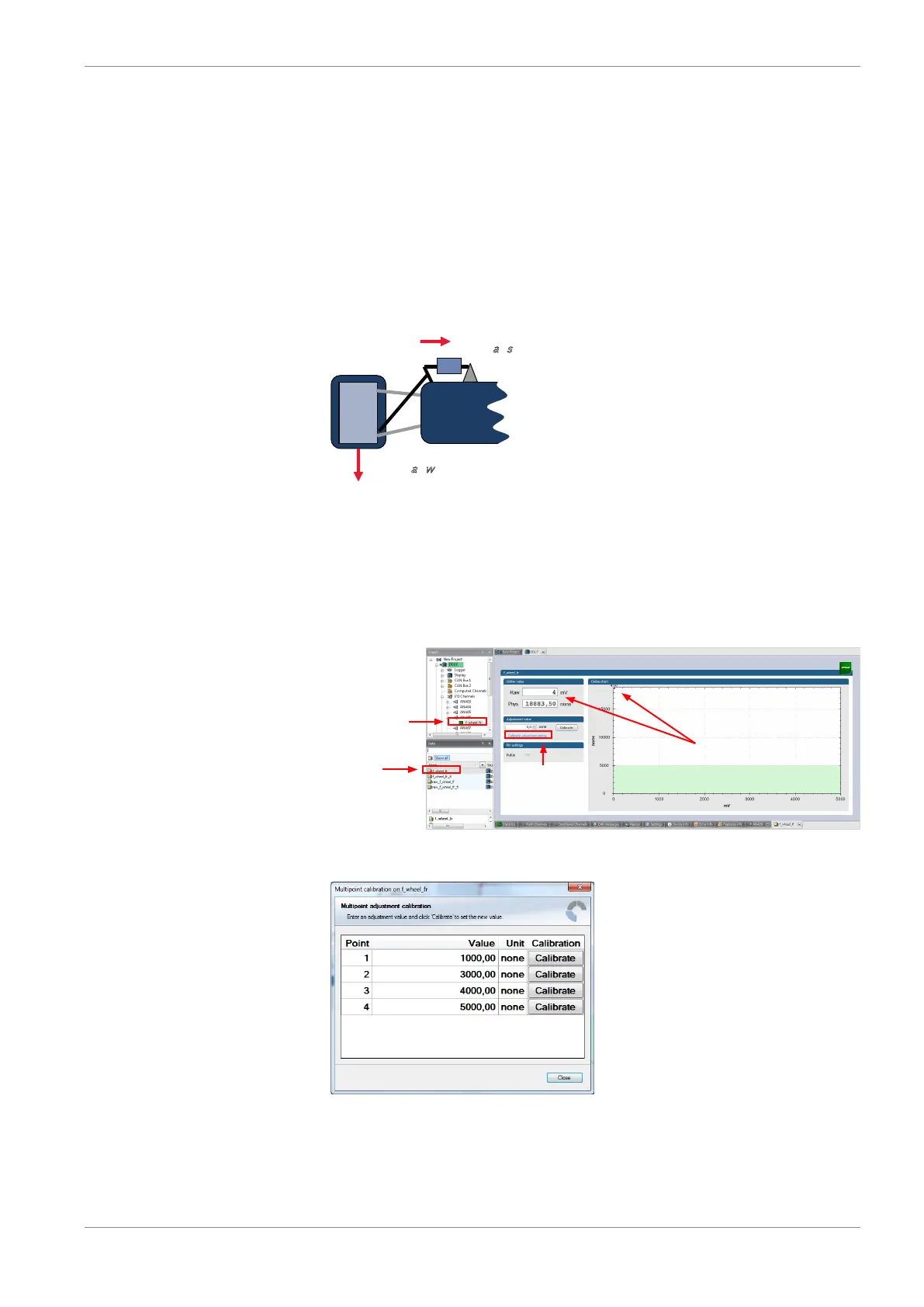

6.3 Online calibration of multipoint adjustment
channels
Example: measurement of wheel force
– Physical property ‘wheel force’ not directly measureable
– Load transfer through suspension kinematics
– Physical value at sensor position defined by vehicle
– Curve definition by online adjustment at vehicle
1. Create a multipoint adjustment measurement channel. To create a multipoint channel,
see chapter ‘Configuring a multipoint adjustment [}16]’.
2. Download the configuration on the C 70. To connect the C 70 to RaceCon, see
chapter ‘Setting up a new RaceCon Project [}51]’.
3. Click on the desired channel in the C 70 Project Tree.
4. Double-click on a measurement channel in the Data Area to open the online view.
Click to open
measurement
channels in data
view
Double-click
to open
online view
Click to open
calibration
window
Analog and physical
value
5. Click on ‘Calibrate adjustment points’ to open calibration window.
6. Apply the desired physical condition to the sensor (e.g. by applying a force on the
wheel).
7. Enter the physical value in the value column of the desired calibration point (e.g. 745
N).
