Recording | 13
Bosch Motorsport Data Logger C 70 Manual 73/112
13 Recording
13.1 Features
– Synchronized recording of C 70 analog and digital input channels, C 70 internal meas-
urement channels, ECU data, Data from external sensor interfaces
– Up to two independent recordings
– Measurement rate 1 ms to 1 s
– Two global start conditions (thresholds)
– Up to 16 measurement conditions (fast-slow-switches)
13.2 Configuration of recordings

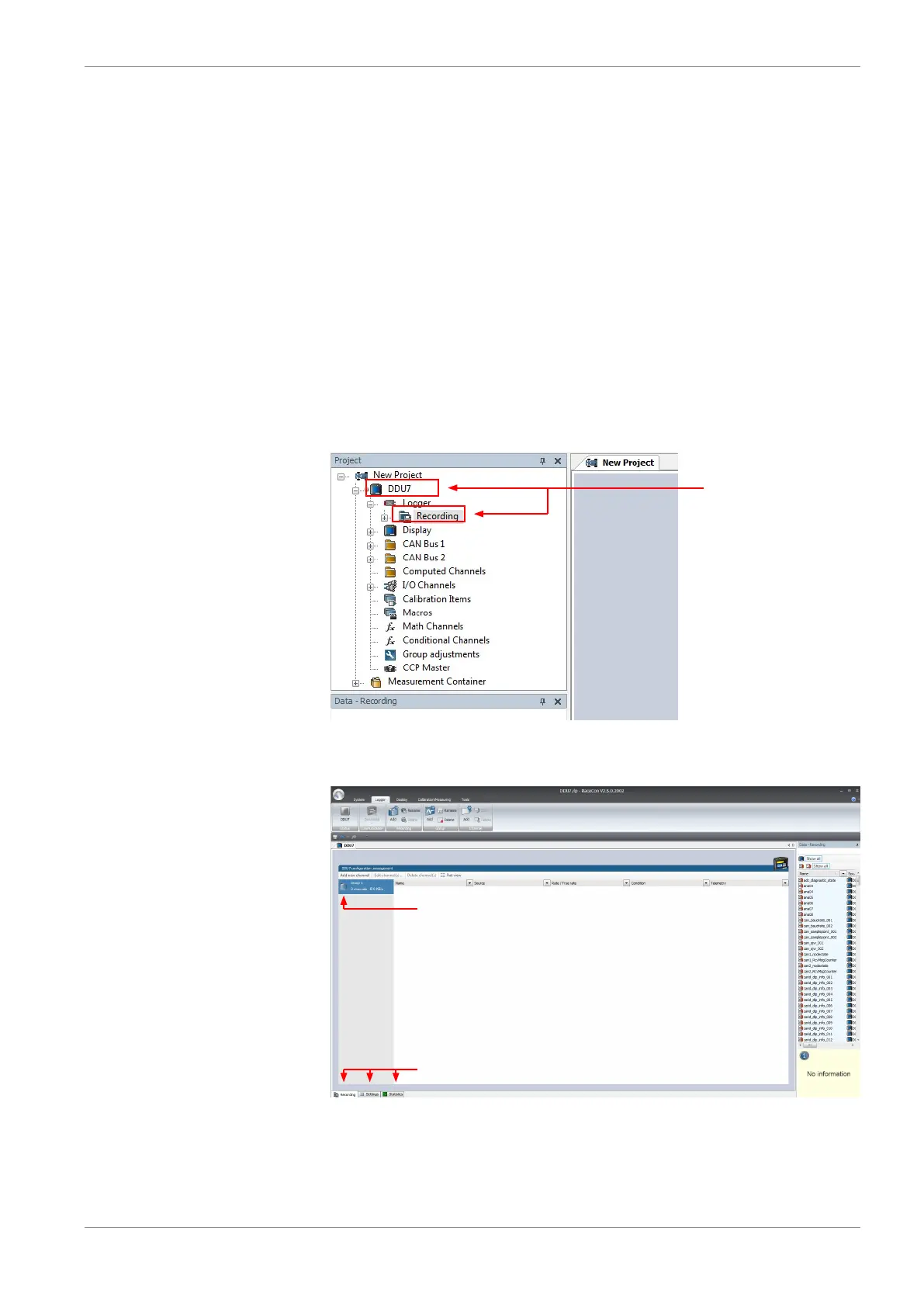

1. Expand the list of ‘Loggers’ by clicking on ‘+’ in the C 70 Project Tree.
Double-click to display
the configuration
(automatically change
to "Logger")
2. Double-click on ‘Recording’ in C 70 Project Tree. The recording configuration is dis-
played in the Main Area.
Variables can be grouped
Tabs to access conditions, settings and statistics
3. To add measurement channels to a recording, click ‘C 70’ in the C 70 Project Tree. In
the Data Area, the measurement channels are displayed.
4. Drag and drop desired measurement channels into recording group.
To Next Page
