a)
b)
c)
d)

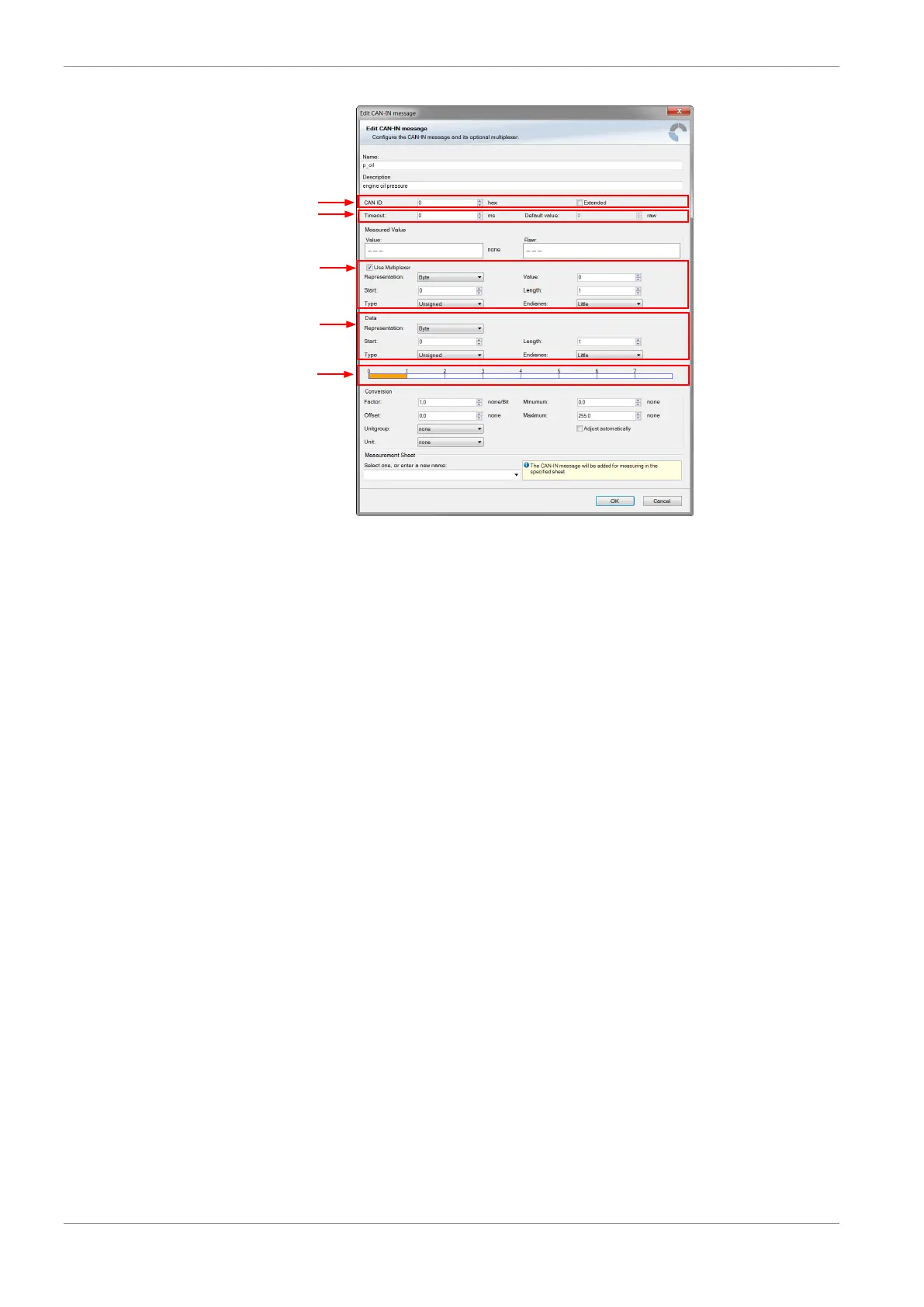

a) Enter CAN message ID. If extended IDs (29 bit) are used, check the box.
b) If replacement values are used, specify timeout period and raw value.
c) If a multiplexer (row counter) is used, check the box.
d) Enter data position, length and format.
e) The bargraph shows assignment of the bytes.
- Red colored fields show the assignment of the data bytes.
- Orange colored fields show the assignment of the multiplexer bytes.
e)
