Bosch CE025 - Earth Coupled Application

6 720 220 048
Revised 05-12 Subject to change without prior notice
19
CE Series

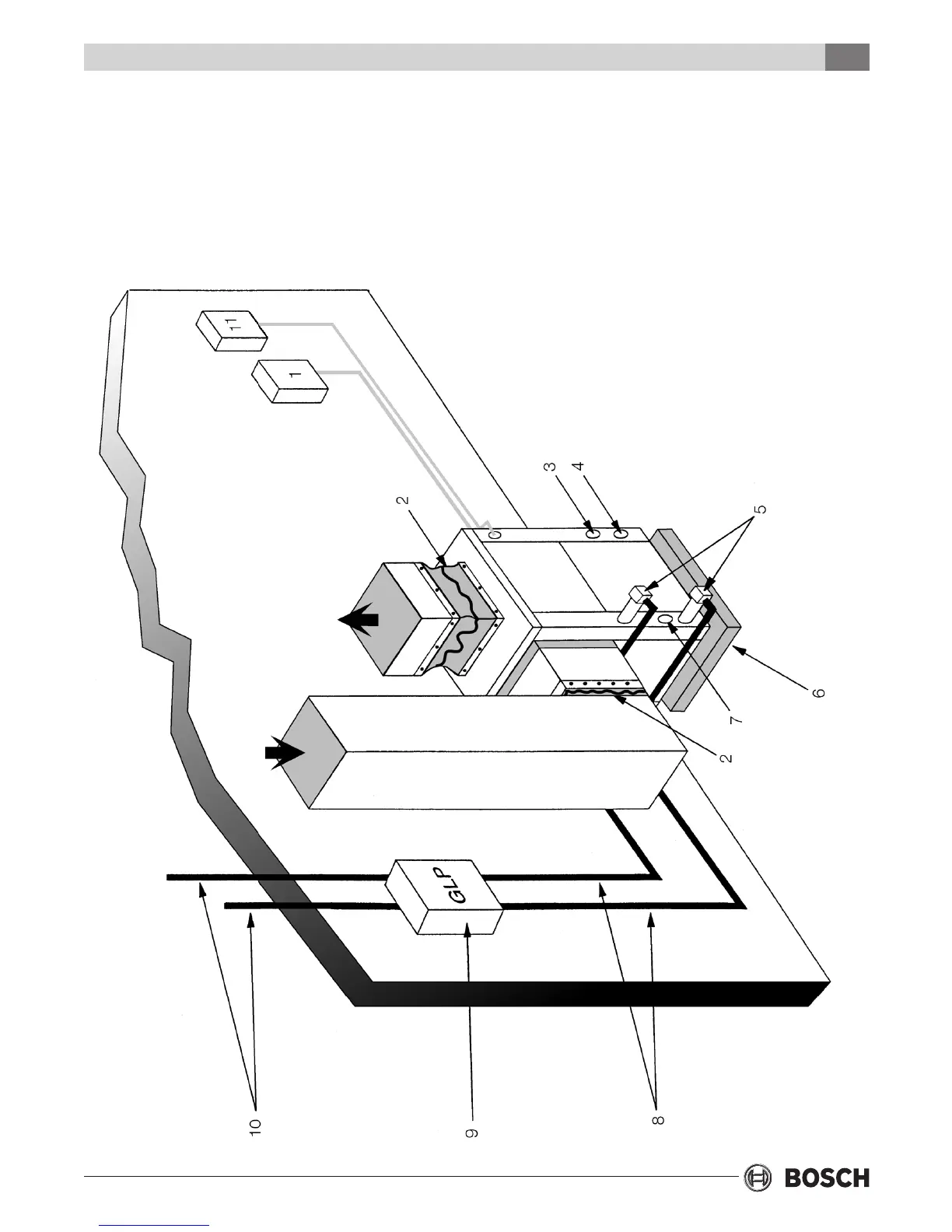

Figure 12: Earth Coupled Application
EARTH COUPLED APPLICATION 1. LINE VOLTAGE DISCONNECT (UNIT) 2. FLEX DUCT CONNECTION 3. LOW VOLTAGE CONTROL CONNECTION 4. LINE VOLTAGE CONNECTION (UNIT) 5. P/T PORTS 6. VIBRATION PAD 7. CONDENSATE DRAIN 8. GROUND LOOP CONNECTION KIT
(555-000,001)
9. GROUND LOOP PUMPING PACKAGE
(GL001-1 or 002-1)
10. POLYETHELENE WITH INSULATION 11. LINE VOLTAGE DISCONNECT (ELECTRIC
HEATER)
NOTE: SEE FIGURE #3 FOR CONDENSATE DRAIN CONNECTION
Earth Coupled Application
