Bosch CE025 - Wiring Diagrams

20
Subject to change without prior notice Revised 05-12
6 720 220 048
CE Series

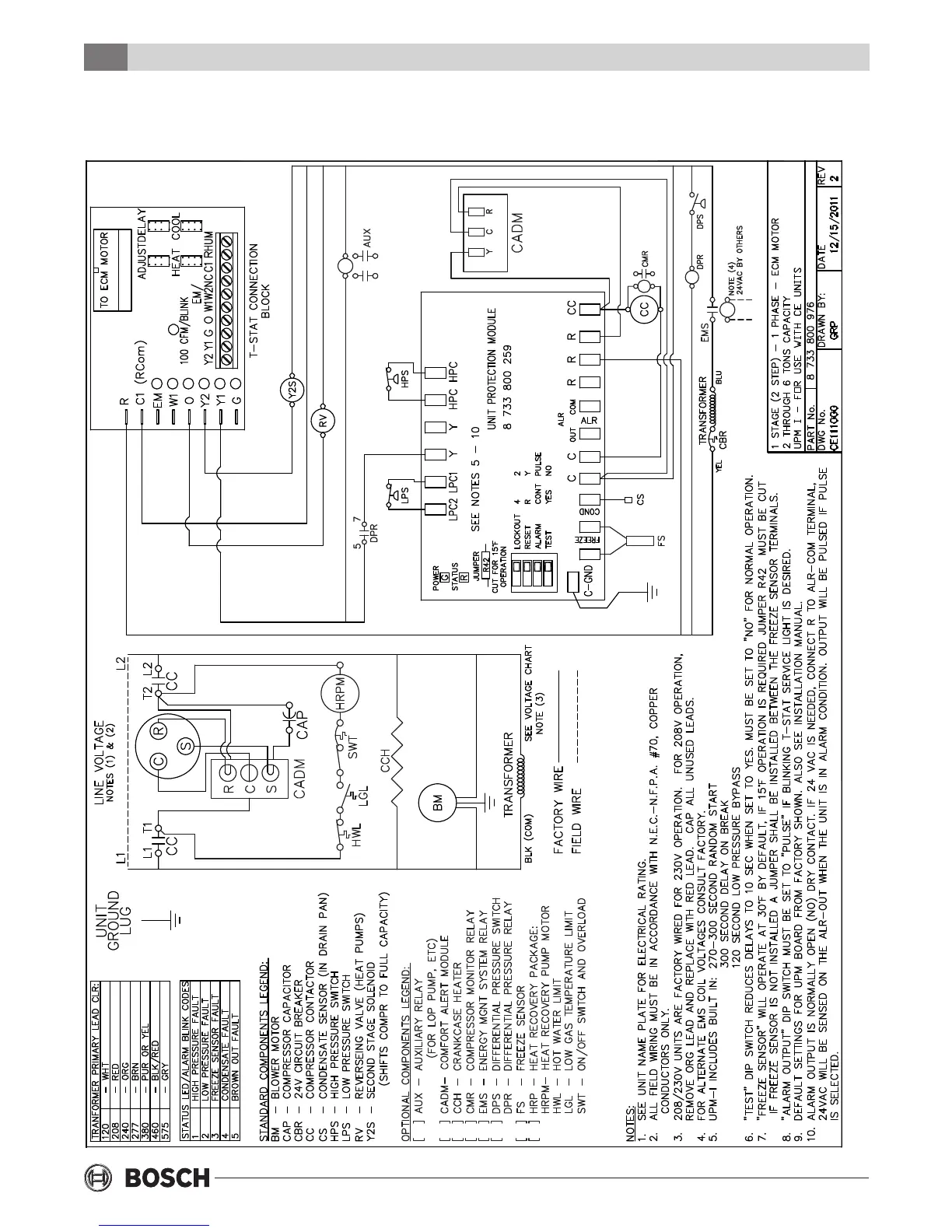

Figure 13: TYPICAL WIRING DIAGRAMS
Single Stage Two Step - Single Phase ECM Motor
Typical Wiring Diagram
