Attaching Loose Parts
To avoid possible injury,
disconnect plug from power
s
ource before performing any assembly,
adjustments or repairs.

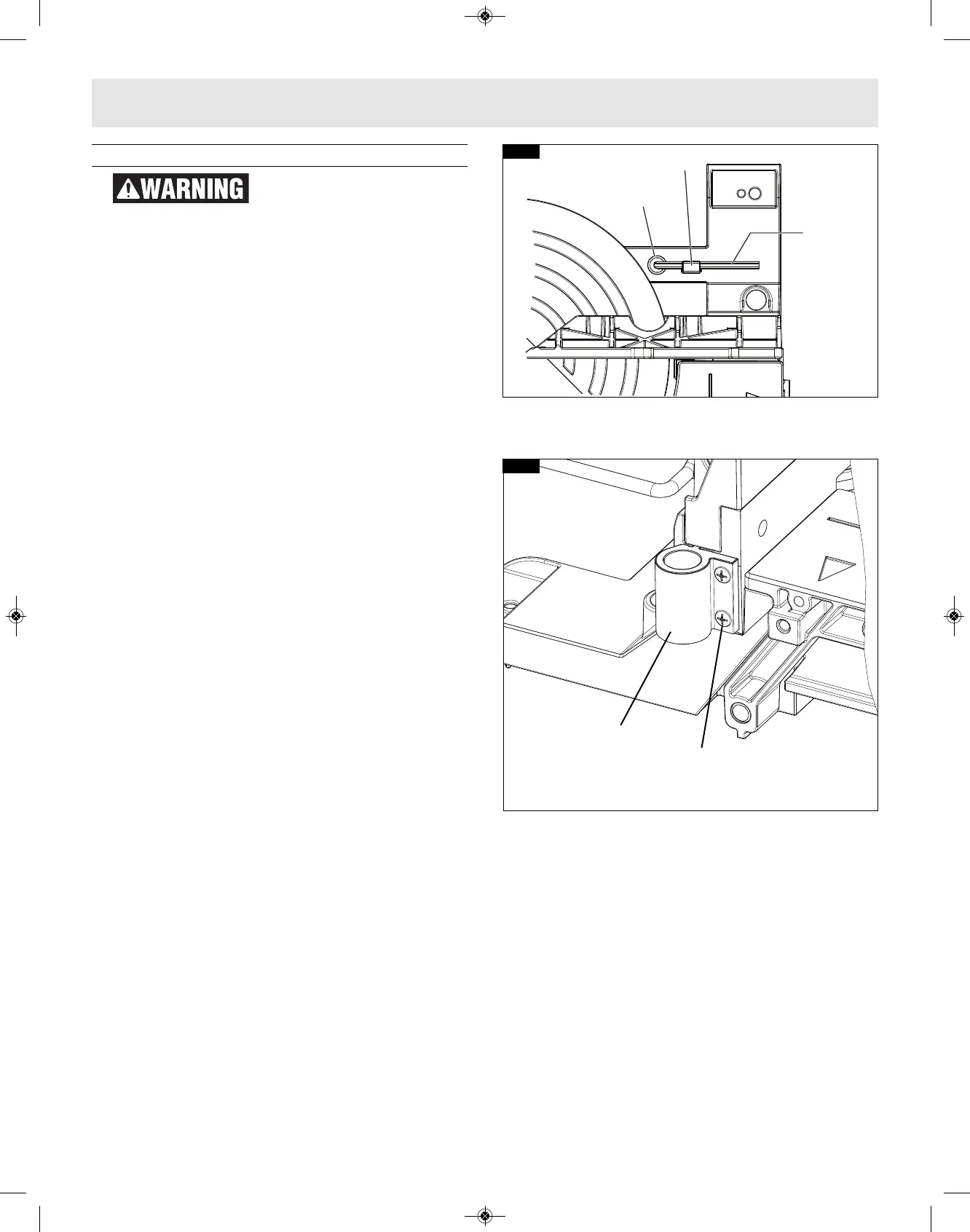

STORING THE 5MM HEX KEY
There is a storage location on the saw to store the
5mm hex key. Insert the short leg of the hex key
through the rubber grommet as shown. Rotate
long leg under hook (see figure 1).
NOTE: The 5mm hex key is needed to change the
blade and to make tool adjustments.
ATTACHING 60º AUXILIARY CLAMP HOLE
1. Position the 60˚ auxiliary clamp hole as shown in
figure 2.
2. Insert the screws provided into holes and tighten
with Philips screwdriver.
The 60˚ auxiliary clamp hole is used to
appropriately clamp material at angles from 55 ˚to
60˚ right see page 29 for clamping instructions.
