F 002 DG9 H12 | Bosch Automotive Service Solutions GmbH 2021-04-08
Interface Displays | CS LD 1.0 | 49 | en
User may now begin searching for
leaks.
Upon detection, concentric rings
illuminate and beep rate increases.
100%
A

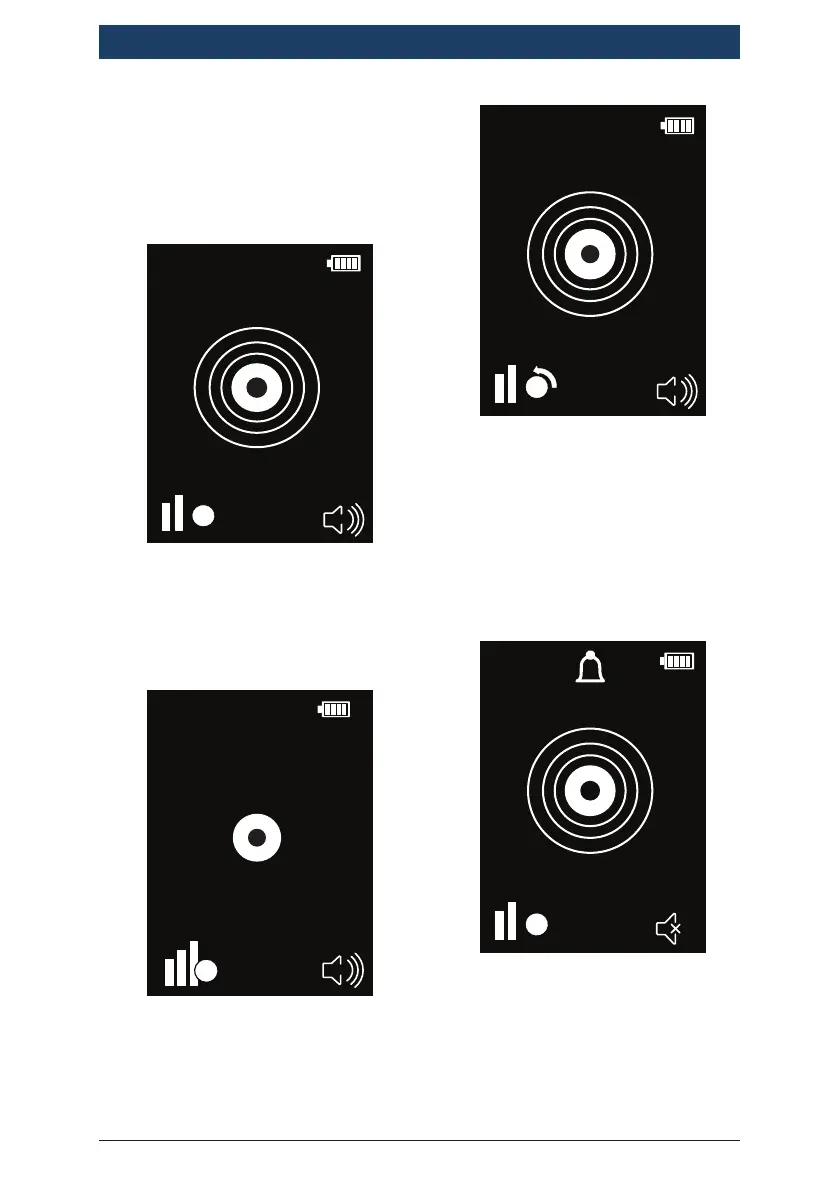

Fig. 26: Alarm condition, Audio ON
Refer to Section 6.1 to change sen-
sitivity levels and/or reset modes.
M
100%
Fig. 27: Manual mode icon when not
alarming
Fig. 28: Manual mode reset icon flashes
in sync with reset button press
Press Audio ON/OFF button to
mute speaker; alarm bell symbol
will appear during refrigerant de-
tection.
100%
A
Fig. 29: Alarm condition, Audio OFF
(Mute)
Press graph button for leak tracing
mode.
