8. Interface Displays
8.1 Leak detector user
interface flow chart
Power on displays logo, model and
SW version for 3 Seconds.
100%
SW VERSION
CS LD1.0

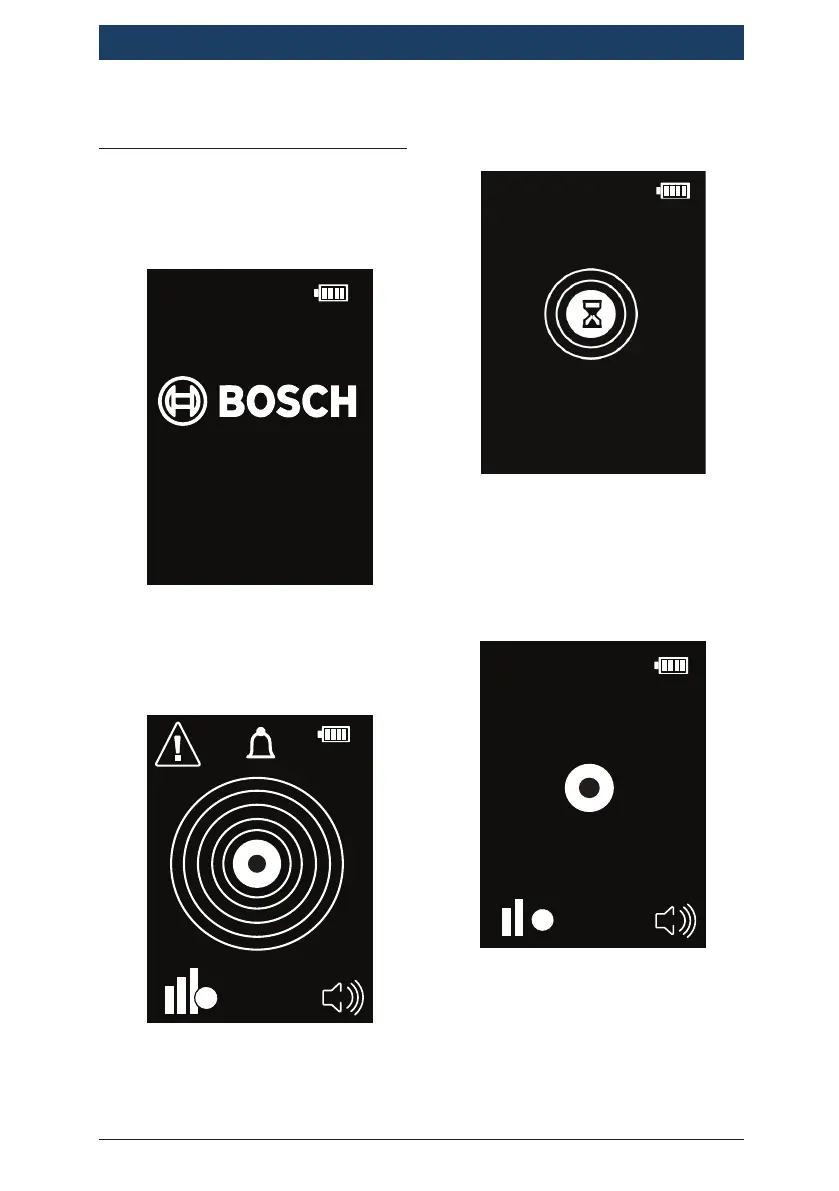

Fig. 22: Power on display
Splash screen with main icons
approximately 1 Second.
CS LD1.0
A
100%
Fig. 23: Splash screen display
No sound during warm up - Con-
centric rings show progress.
100%
Fig. 24: Warm Up display
Unit is ready when beeping begins
and only the center "bulls-eye" is
present.
100%
A
Fig. 25: Steady state display
Unit always defaults to Medium
sensitivity level and Automatic
mode.
