F 002 DG9 H12 | Bosch Automotive Service Solutions GmbH 2021-04-08
Commissioning | CS LD 1.0 | 35 | en

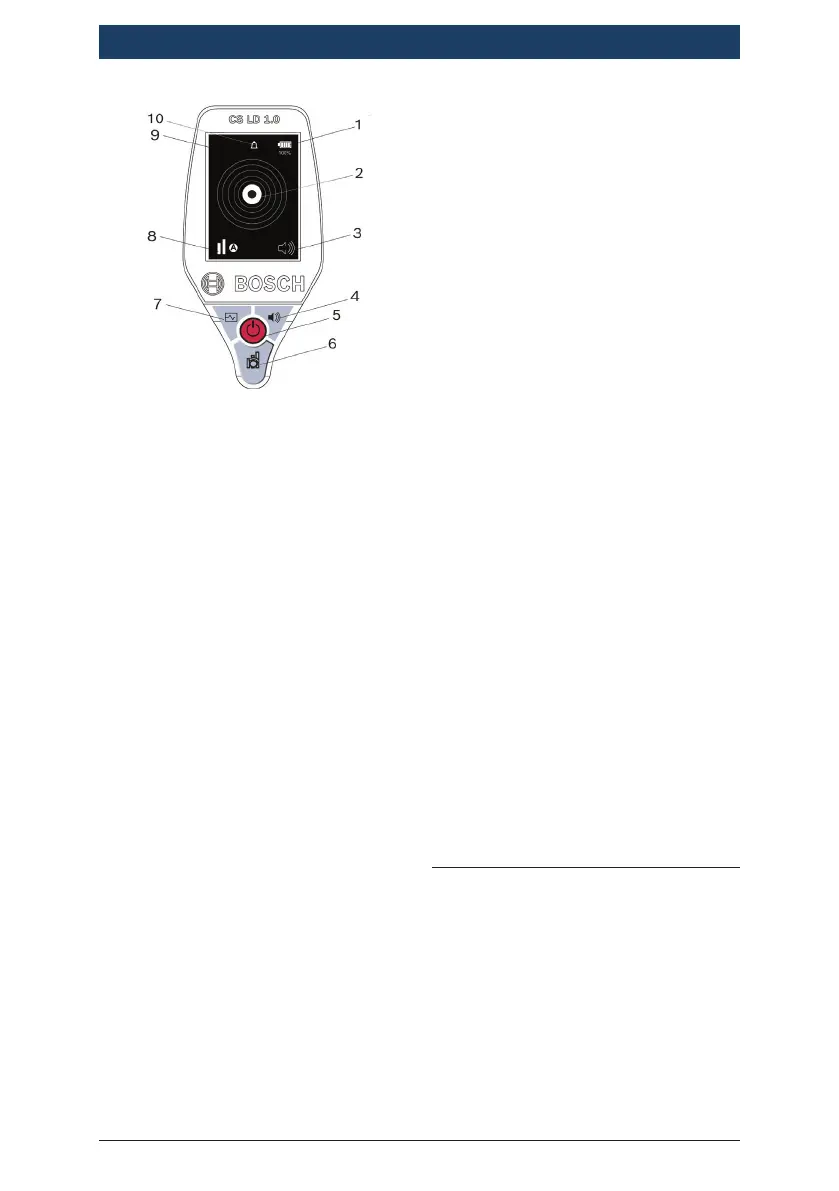

Fig 1.1: HMI View of CS LD 1.0
1. Battery status indicator
2. Status /Leak size indicator
3. Audio status indicator
4. Audio ON/OFF button
5. Power button
6. Sensitivity / Mode selection button
7. Leak tracing mode (Graph) button
8. Sensitivity level / mode indicator
9. LCD
10. Alarm Indication (Audio off only)
5. Commissioning
1. Remove the transport pa-
ckaging.
2. Check if all items have been
delivered as per section 4.2.
3. Check the CS LD 1.0 for dama-
ges. If there are damages, con-
tact Bosch customer service.
4. Read this operators manual.
5. Charge the CS LD 1.0 (refer
to Sec. 7.4.2) using the provi-
ded charging block and cable.
An alternate charger certified
according to local guidelines
with output rating of 5V DC
1A minimum may be used,
however charging time may be
increased.
6. Once connected to the charger,
the CS LD 1.0 LCD will illumi-
nate to indicate that the battery
is charging and shows % charge
status. If the display does not
illuminate, check the power
source or verify the charger
compatibility and/or connec-
tion.
ii Avoid discharging the battery
completely. Recharging a par-
tially discharged battery more
frequently is better for the life
of a lithium-ion battery.
ii Once fully charged, as in-
dicated on the display, the
CS LD 1.0 is ready for use.
6. Operating
Instructions
6.1 Understanding
sensitivity levels
and modes
6.1.1 Adjusting sensitivity
levels
