Bosch Security Systems | 2007-11 | 9922 141 70691 en
DCN Wireless | Installation and User Instructions | Contribution Devices en | 84
14.8.5 Attendance LED
14.8.6 Status LEDs
The status LEDs (refer to figure 14.6, no. 13) show the
condition of the wireless discussion unit.
• If the yellow LED is on, the wireless discussion unit
is out-of-range.
• If the red LED flashes, the battery pack of the
wireless discussion unit will be empty within 1 hour.
If a wireless discussion unit is out of range for more than
15 minutes, it will automatically switch off.
14.8.7 Status channel selector display
If the wireless discussion unit has a channel selector
display, additional icons show the condition of the unit
(refer to figure 14.16):
• If the antenna icon is shown, the wireless discussion
unit is out-of-range.
• If the battery icon is shown, the battery pack of the
wireless discussion unit will be empty within 1 hour.
If a wireless discussion unit is out of range for more than
15 minutes, it will automatically switch off.
table 14.9: Attendance LED
Attendance LED Condition
Yellow (flashing) The system requests
attendance registration.
Yel l o w ( on ) The attendance registration
is confirmed.

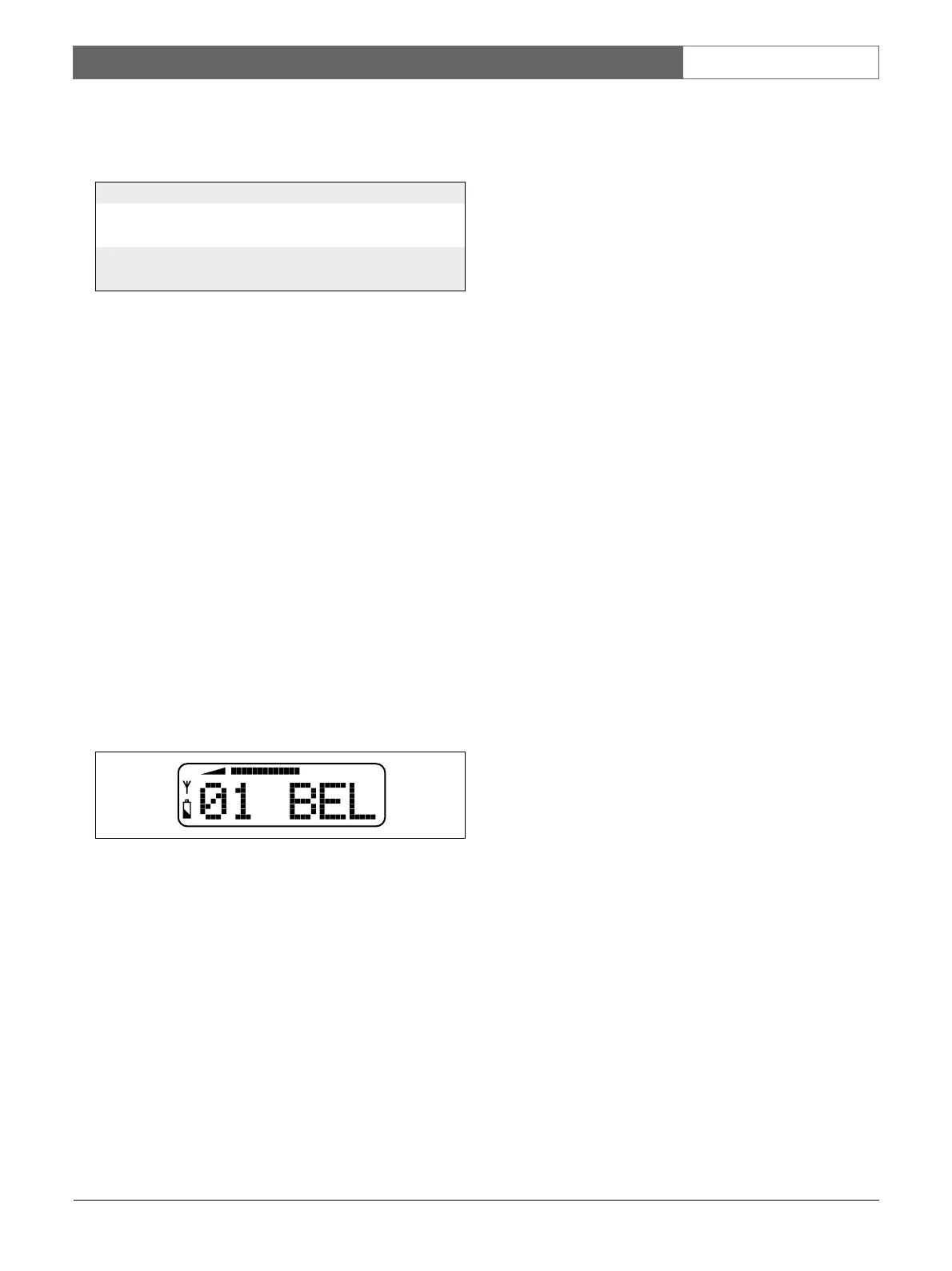

figure 14.16: Antenna and battery icon
