Bosch DCN - 17 DCN-WCH05 Battery Charger

Bosch Security Systems | 2007-11 | 9922 141 70691 en
DCN Wireless | Installation and User Instructions | Contribution Devices en | 89
17 DCN-WCH05 Battery
Charger
17.1 Introduction
The DCN-WCH05 Battery Charger charges the
DCN-WLIION Battery Packs. The battery charger can
charge a maximum of 5 battery packs at the same time.
17.2 Controls, connectors and
indicators
17.2.1 Front view
The front of the battery charger (refer to figure 17.1)
contains:
1 Ventilation grilles - Make sure that the
temperature of the battery charger does not become
too high.
2 Battery pack containers - Hold the
DCN-WLIION Battery Packs.
3 Charge level LEDs - Show the charge level of the
battery pack (refer to section 17.5).
4 Power on/off LED - Comes on when the power
cable is connected to the mains power supply.
17.2.2 Rear view
The rear of the battery charger (refer to figure 17.1)
contains:
5 Power inlet - Connects the battery charger to the
mains power supply with a power cable (refer to
section 17.4.1).
6 Loop-through socket - Connects the battery
charger to another battery charger with a power
cable (refer to section 17.4.2).

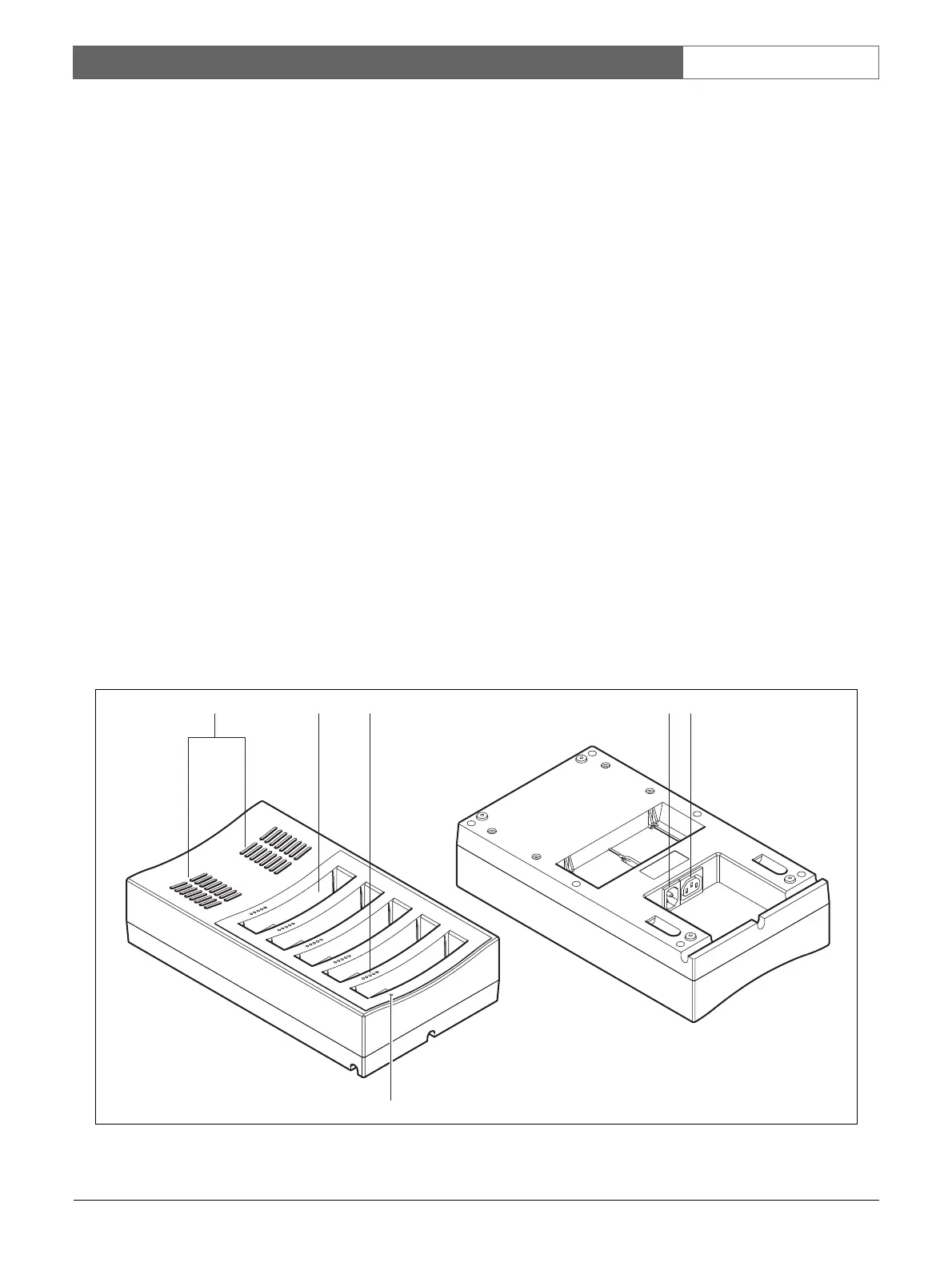

figure 17.1: Overview
4
1 2 3 5 6
