13 | Online Measurement
100/148 DDU 9 Bosch Motorsport

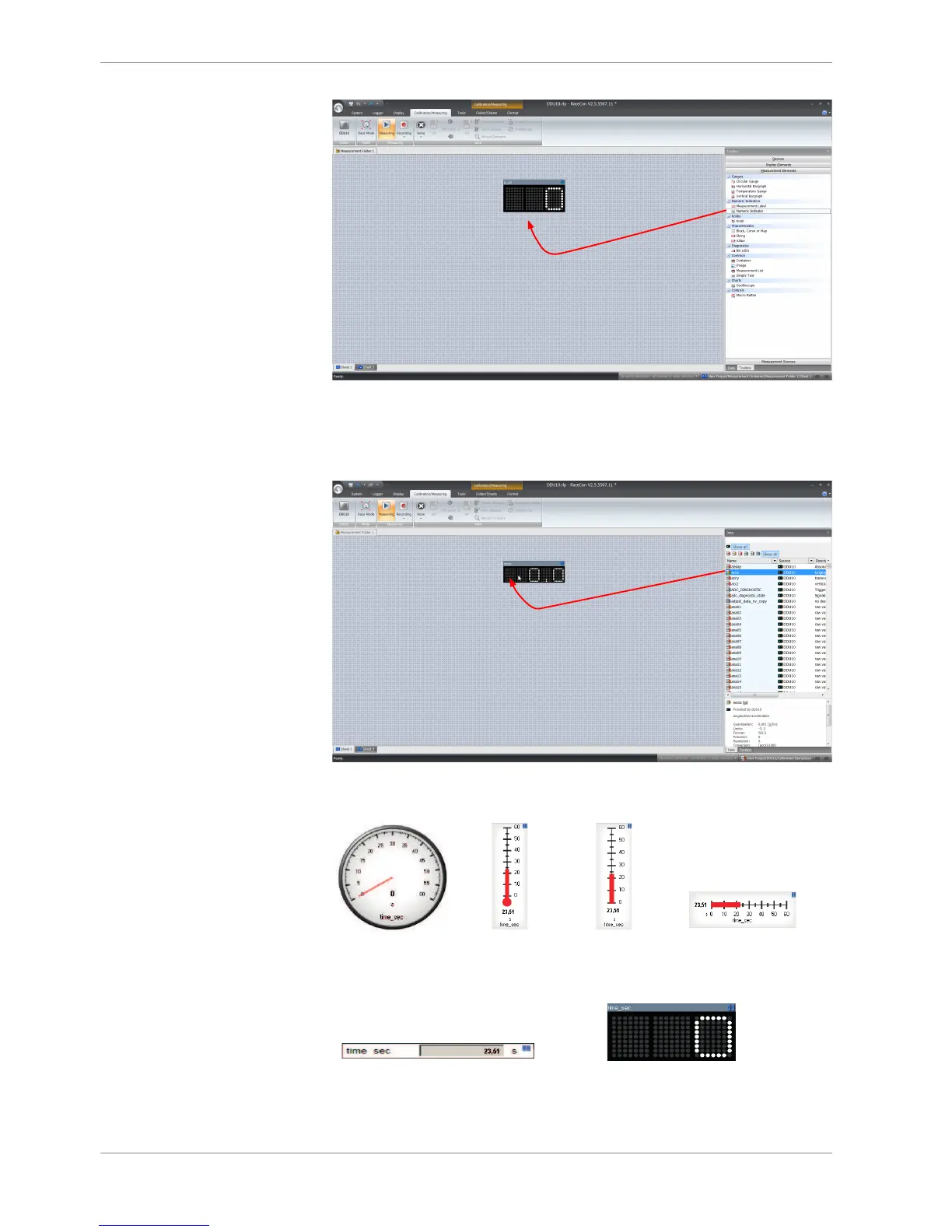

Drag + Drop
6. Select the desired measurement channel from the ‘Data’ area and drop it on the
measurement element.
If the DDU 9 shows the green status, the value is displayed.
Drag + Drop
RaceCon offers different types of measurement elements:
Vertical Bar
graph style
Temperature
gauge
Horizontal Bar
graph style
Circular gauge
Numeric indicator
Measurement label
