Display Configuration | 10
Bosch Motorsport DDU 9 53/148

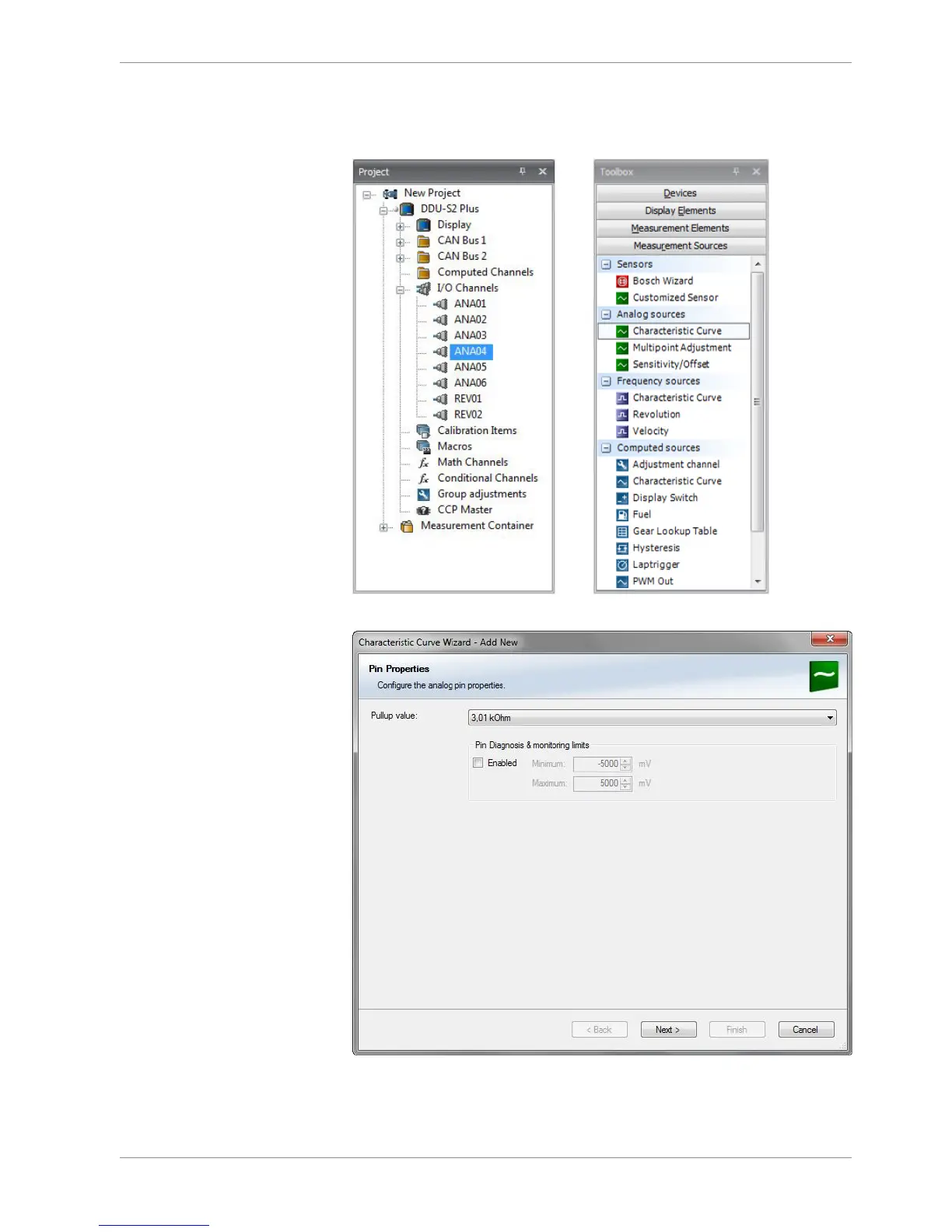

3. Go to ‘Measurement Sources’ in the toolbox and select the ‘Characteristic Curve’ un-
der ‘Analog sources’. Drag and drop it on the selected analog input channel in the
project tree.
4. Select ”Pull-up value:” 3.01 kOhm and click on ‘Next’.
