Bosch GCM 10 SD - Working Instructions; Floor Moulding Cutting Guide; Ceiling Moulding Cutting Guide

English–141 609 929 F69 • (04.10) PS
Floor Mouldings

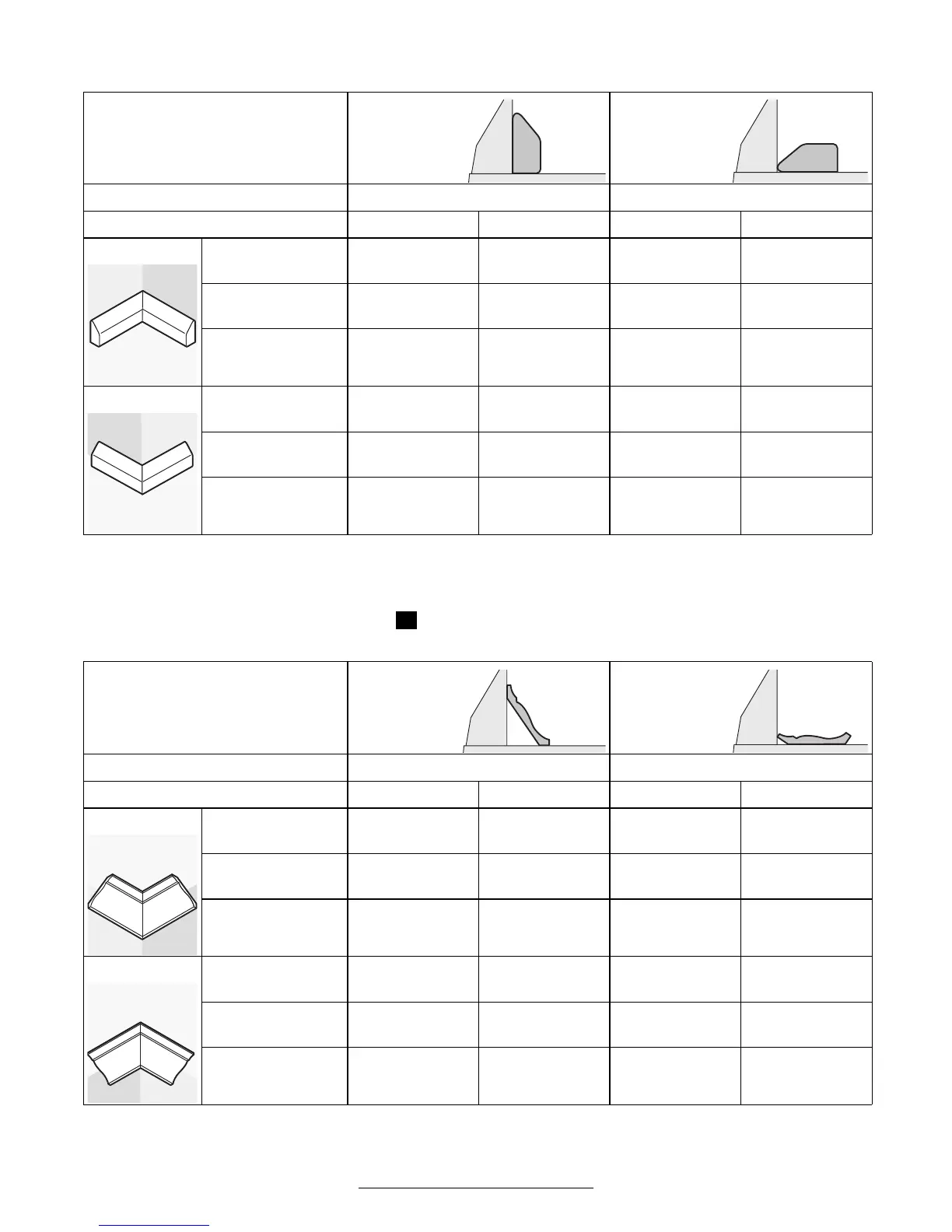

The following table contains instructions for the working of floor mouldings.
Ceiling Moulding (According to US Standard)
When the ceiling moulding is to be work lying flat on the saw table, the standard mitre angle of 31.6° (horizontal)
and 33.9° (vertical) must be set. (see Figure )
The following table contains instructions for the working of ceiling mouldings.
Setting Placed
Against the
Fence
Lying Flat
on the Saw
Table
Vertical Bevel Angle 0° 45°
Floor Moulding Left Side Right Side Left Side Right Side
Inner Corner Horizontal Mitre
Angle
45° Left 45° Right 0° 0°
Positioning of the
Work Piece
Lower edge on
the saw table
Lower edge on
the saw table
Upper edge on
the fence
Lower edge on
the fence
The finished work
piece is located …
… to the left of
the cut
… to the right of
the cut
… to the left of
the cut
… to the left of
the cut
Outer Corner Horizontal Mitre
Angle
45° Right 45° Left 0° 0°
Positioning of the
Work Piece
Lower edge on
the saw table
Lower edge on
the saw table
Lower edge on
the fence
Upper edge on
the fence
The finished work
piece is located …
… to the right of
the cut
… to the left of
the cut
… to the right of
the cut
… to the right of
the cut
U
Setting Placed
Against the
Fence
Lying Flat
on the Saw
Table
Vertical Bevel Angle 0° 33,9°
Ceiling Moulding Left Side Right Side Left Side Right Side
Inner Corner Horizontal Mitre
Angle
45° Right 45° Left 31.6° Right 31.6° Left
Positioning of the
Work Piece
Lower edge on
the fence
Lower edge on
the fence
Upper edge on
the fence
Lower edge on
the fence
The finished work
piece is located …
… to the right of
the cut
… to the left of
the cut
… to the left of
the cut
… to the left of
the cut
Outer Corner Horizontal Mitre
Angle
45° Left 45° Right 31.6° Left 31.6° Right
Positioning of the
Work Piece
Lower edge on
the fence
Lower edge on
the fence
Lower edge on
the fence
Upper edge on
the fence
The finished work
piece is located …
… to the right of
the cut
… to the left of
the cut
… to the right of
the cut
… to the right of
the cut
