10 | Horizontal configurability SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2013/1) Subject to change without prior notice
.

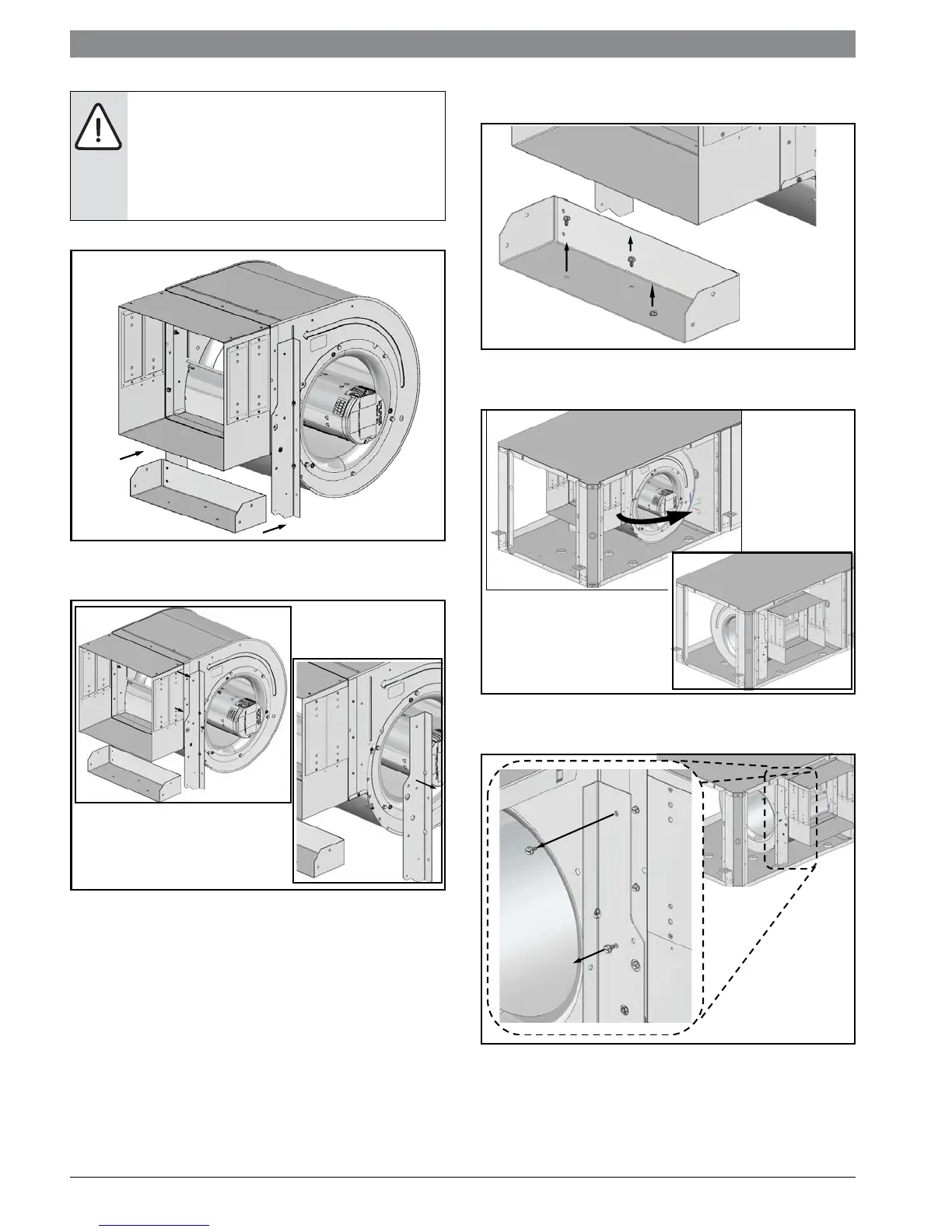

Figure # 25
5. Remove and retain (1) vertical bracket by
removing (2) screws. (Figure #26)
Figure # 26
6. Remove and discard horizontal blower bracket
by removing (3) screws. (Figure #27)
Figure # 27
7. Rotate the blower into its new
position.(Figure#28)
Figure # 28
8. Remove and retain remaining vertical blower
bracket by removing (2) screws. (Figure #29)
Figure # 29
9. Remove the blower assembly by sliding it
forward. (Figure #30)
Air coil is in close proximity to the blower.
Air coil fins are easily damaged. Great care
must be taken during this step to avoid coil
damage. Shipping cardboard can be used as
protection during blower removal and
installation.
