24 | Vertical configurability SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2013/1) Subject to change without prior notice

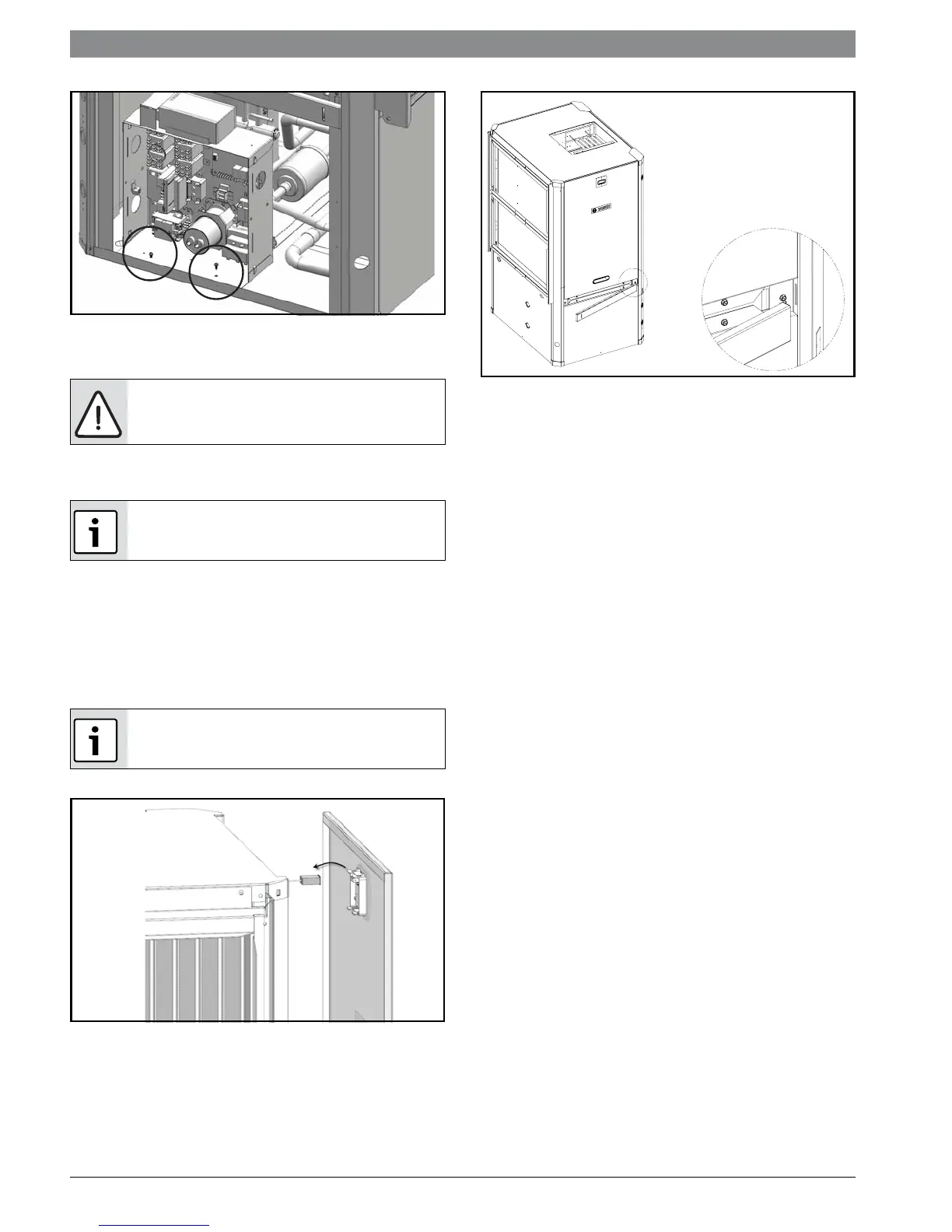

Figure # 84
6. Reconnect all the wiring disconnected in Step
#1.
7. Identify and re-route LCD wiring harness to the
new location.
8. Swap FRONT panel (containing LCD) to the
BACK
Reinstall All Panels
1. Re-route the LCD wiring to the new location
and reconnect LCD screen wiring. Reinstall
panels. (Figure #85)
Figure # 85
2. Reinstall belts. (Figure#86)
Figure # 86
Ensure all connectors are properly oriented
and are fully engaged.
Panel containing LCD always mounts on the
same side as E-Box.
Panel containing LCD and Bosch Logo must be
installed on the same side as Electrical Box.
