6 | Configurability SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2013/1) Subject to change without prior notice
CONFIGURABILITY
HORIZONTAL CONFIGURABILITY

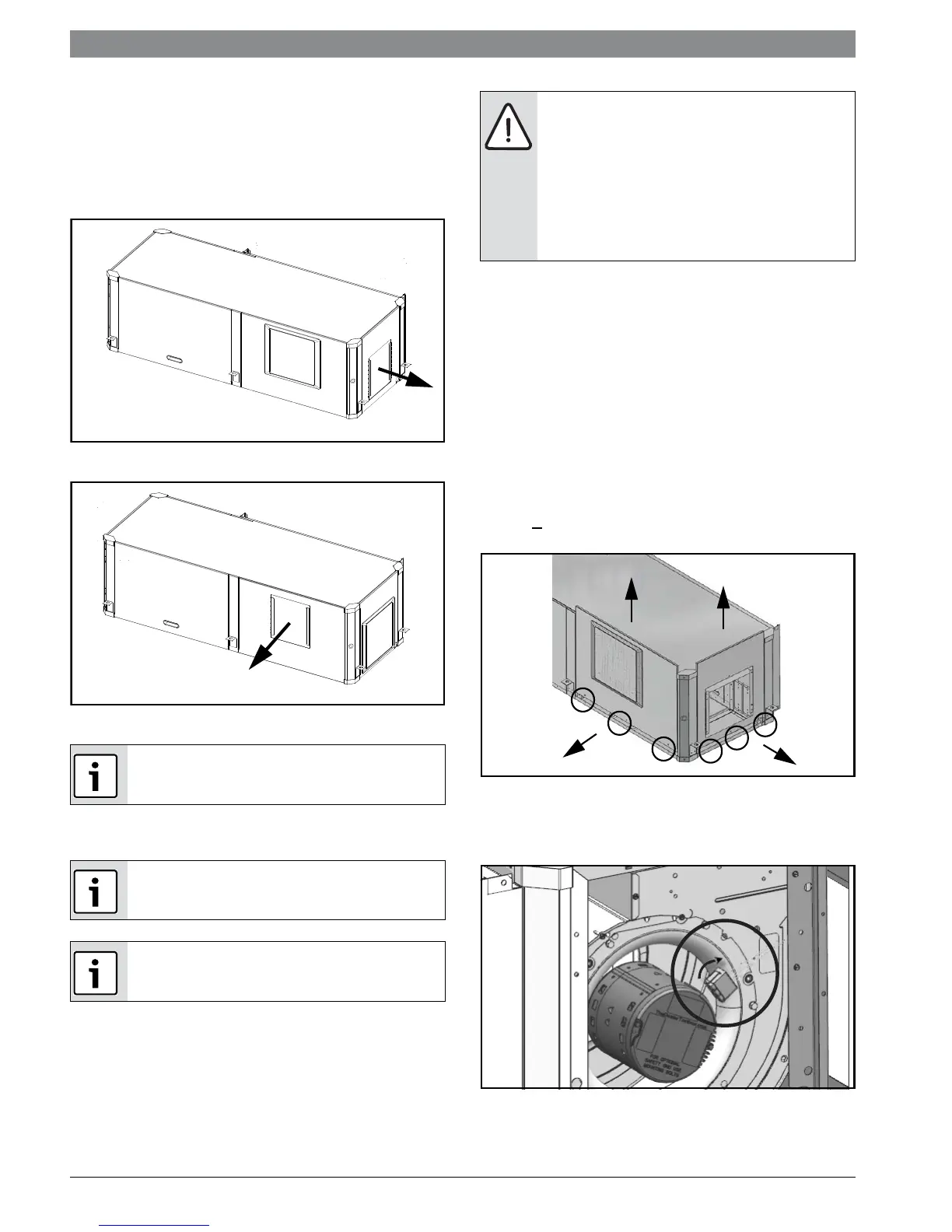

The Horizontal Configuration water source heat
pump is designed to have a field configurable
blower orientation: end blow (default) and straight
through. (Figure #4 and #5)
Figure # 4
Figure # 5
Left- Hand unit instructions refer to Pg#6 and
Right-Hand unit instructions refer to Pg#9.
Required Tools
• 5/16" hex head driver
• 3/8" hex head driver
• 7/16" hex head driver
• Flat screw driver
• Phillips screw driver
• 1/4" hex head driver
• Needle nose pliers
• 5/16”-1/4” ratchet wrench
Instructions - Left-Hand Unit (SM0**-
1HZ-*
L*-**)
1. Remove and retain end and side panels.(Figure
#6)
Figure # 6
2. Disconnect blower motor wiring and ground
wire fastened to blower housing.(Figure#7)
Figure # 7
Left-Hand and Right-hand Horizontal (HZ) units
have different Blower Configuration instructions.
Internally mounted electric heat is only available
in End Blow configuration.
Blower configuration changes should be done
prior to unit being installed in the final location.
If unit is equipped with optional Electric
Heat and Blower re-configuration is
required: Electric Heat components, blower
collar, and Electric Heat associated wiring
will need to be removed. Additionally,
overall unit wiring will need to be
reconfigured for single power connection.
Contact Bosch After Sales for guidance.
1
1
2
2
