Vertical configurability | 13SM Series Heat Pump
6 720 220 406 (2013/1)SM Series Heat Pump

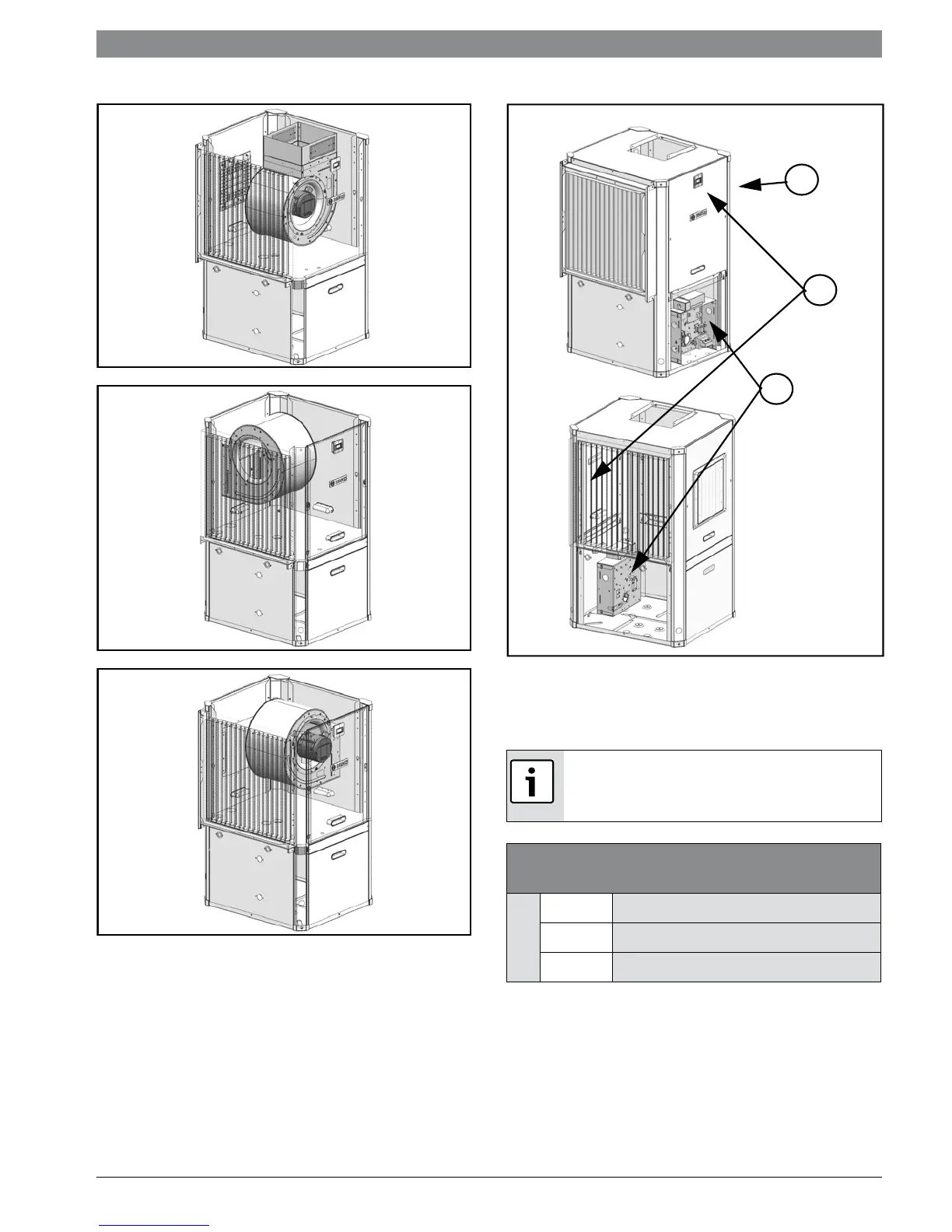

Figure # 38 Top Discharge (Default)
Figure # 39 Back Discharge
Figure # 40 Side Discharge
Figure # 41
[1] Logo/Front Panel
[2] Electrical Box
[3] Default Configuration
Internally mounted electric heat is only available
in Top Discharge configuration. See table below
for details
Blower Orientation and Electric Heat
Compatibility
Blower
Up Yes Internally or Duct Mounted
Back
Duct Mounted
Side
Duct Mounted
1
2
3
