Vertical configurability | 15SM Series Heat Pump
6 720 220 406 (2013/1)SM Series Heat Pump

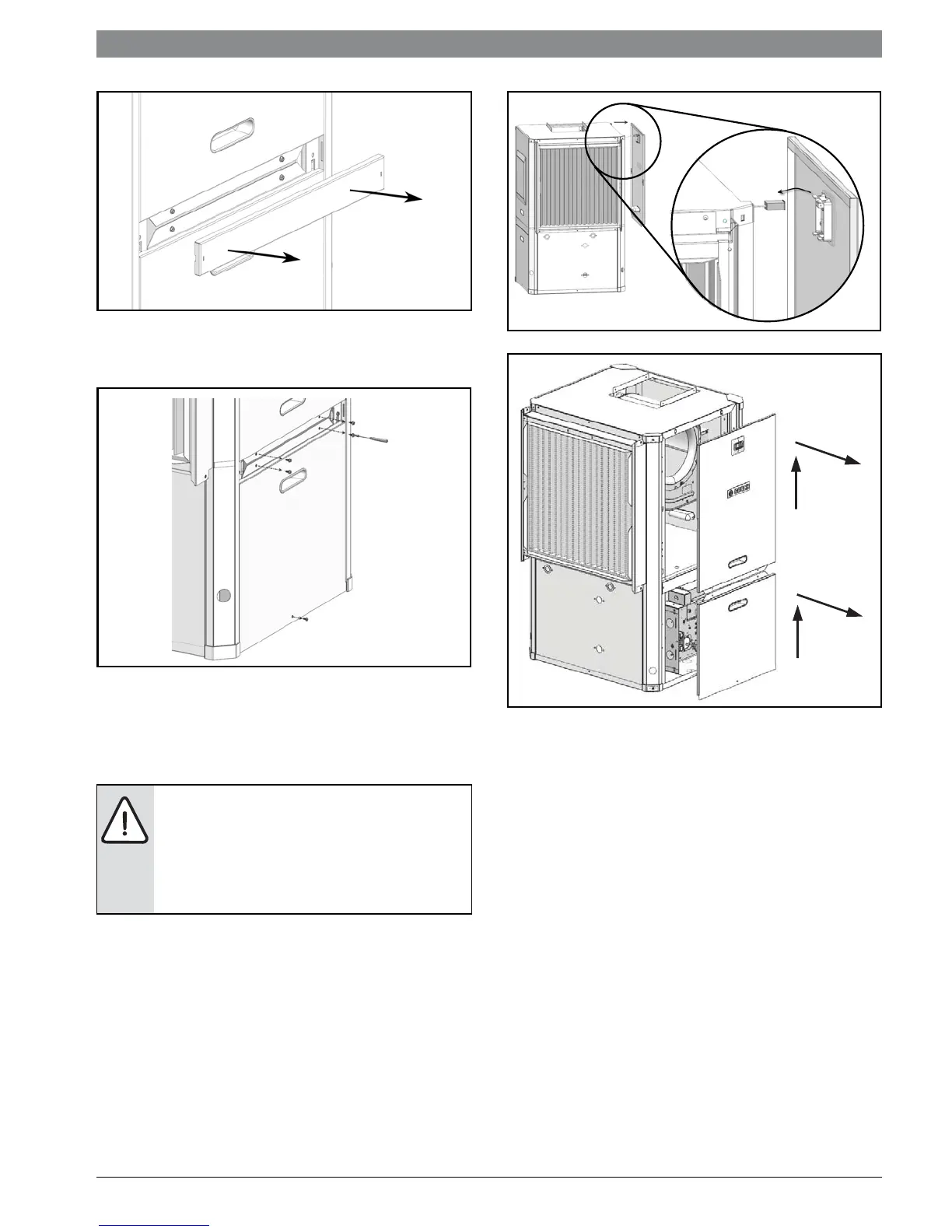

Figure # 43
2. Remove and retain Condensing Section access
panels (bottom panel) by removing (3) screws.
(Figure #44)
Figure # 44
3. Remove and retain Air Handler Panel by lifting
up and out as shown in Figure #46. Remove
panel about 12" away from the cabinet and
unplug LCD screen wiring. (Figures #45
and#46)
Figure # 45
Figure # 46
4. Repeat steps 1–3 for all three sides.
The unit panel mounted diagnostic display
is connected to the heat pump controls with
a wire harness. Use care when removing the
display panel and carefully disconnect and
reconnect the harness when repositioning
the panel.
1) UP
2) AWAY
1) UP
2) AWAY
