Vertical configurability | 17SM Series Heat Pump
6 720 220 406 (2013/1)SM Series Heat Pump
Figure # 51

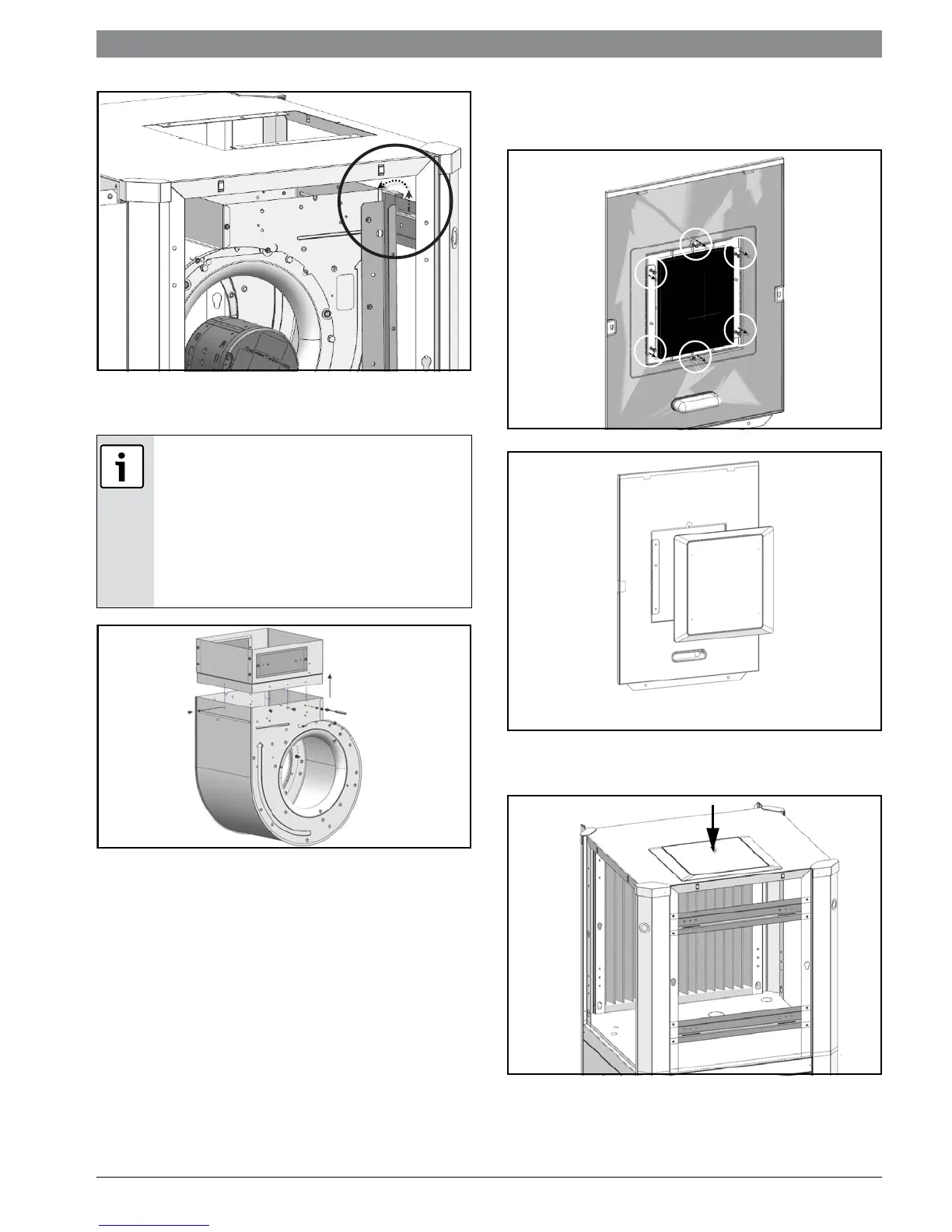

6. Remove and discard blower collar. (Figure
#52)
Figure # 52
7. Remove and retain side panel blower opening
cover by removing (6) phillips head screws.
(Figures #53 and #54)
Figure # 53
Figure # 54
8. Reinstall blower opening cover in the TOP
panel. (Figure #55)
Figure # 55
If unit is equipped with optional Electric Heat
and Blower re-configuration is required: Electric
Heat components, blower collar, and Electric
Heat associated wiring will need to be removed.
Additionally, overall unit wiring will need to be
reconfigured for single power connection.
Contact Bosch After Sales Department for
guidance.
1
2
FRONT OF THE PANEL VIEW
