44 | Application considerations SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2013/1) Subject to change without prior notice
installation easy. Anti-freeze solutions are utilized
when low evaporating conditions are expected to
occur. Refer to the GLP installation manuals for
more specific instructions. (Figure #107)

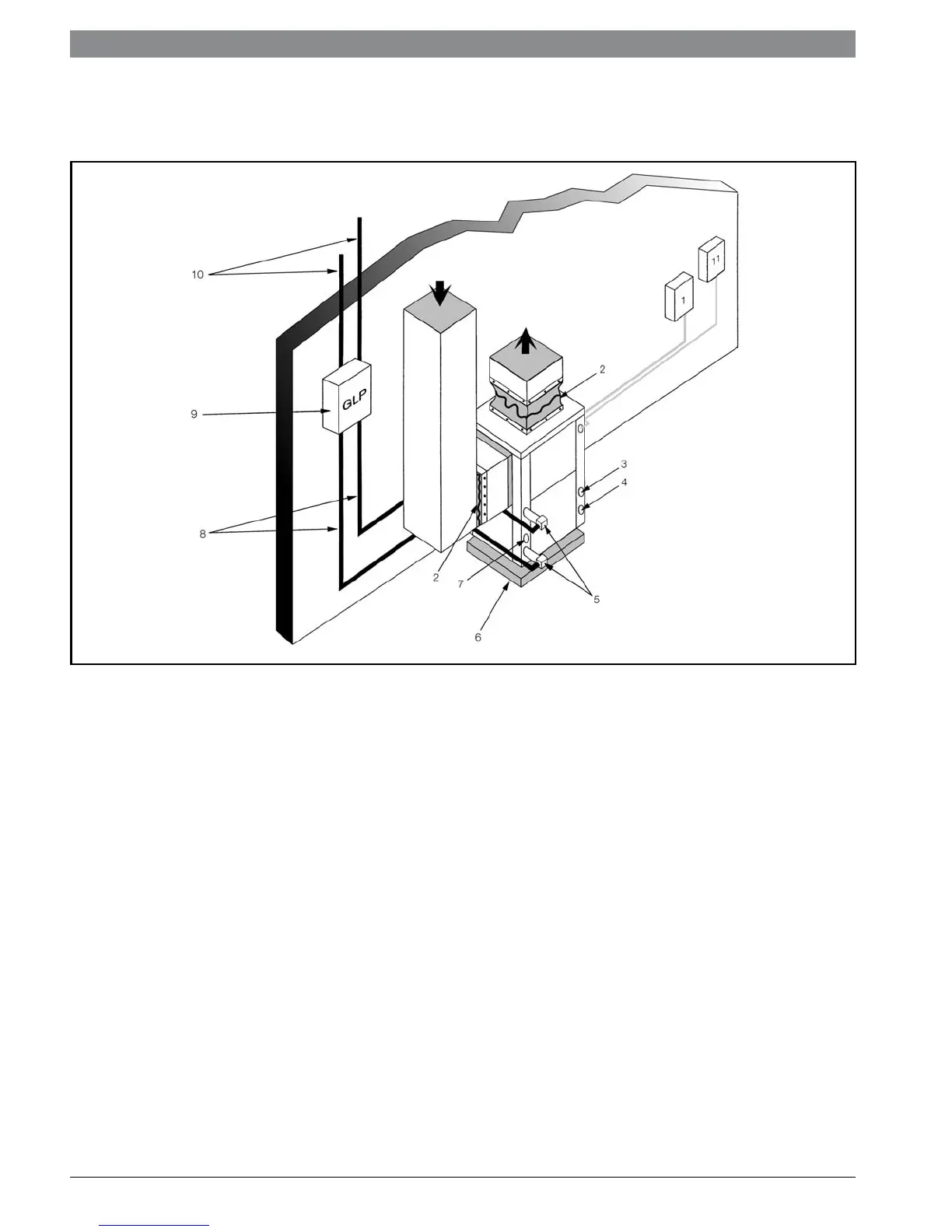

Figure # 107
[1] Line voltage disconnect (unit)
[2] Flex duct Connection
[3] Low voltage control connection
[4] Line voltage connection (unit)
[5] P/T ports
[6] Vibration pad
[7] Condensate drain connection
[8] Ground loop connection kit
[9] Ground loop pumping package
[10] Polyethylene with insulation
[11] Line voltage disconnect (electric heater)
