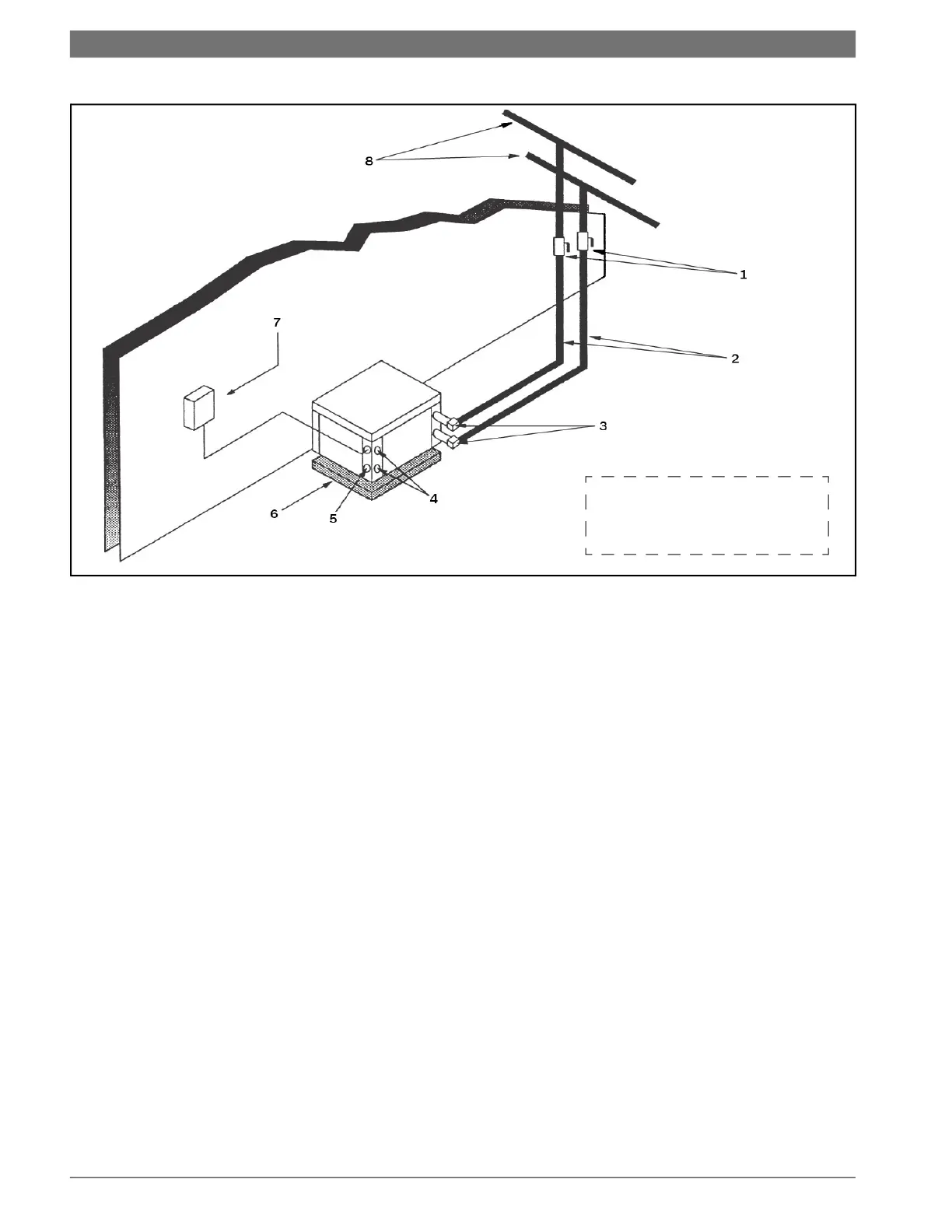

Fig. 6 Typical Cooling Tower and Boiler System Setup
[1] Ball Valves
[2] Hose Kits
[3] P/T Plugs
[4] Load-Side Connections
[5] Low-Voltage Control Connections
[6] Vibration Pad
[7] Line-Voltage Disconnect
[8] Supply and Return Line of Central System
This diagram shows a typical
installation and is for illustration
purposes only. Ensure access to
Heat Pump is not restricted.
