Geothermal Systems
Closed-loop and pond applications require
specialized design knowledge. No attempt at these
installations should be made unless the dealer has
received specialized training. Using the Ground
Loop Pumping Package (GLP), makes the
installation easy. Anti-freeze solutions are utilized
when low-evaporating conditions are expected to
occur. Refer to the GLP installation manuals for
specific instructions.

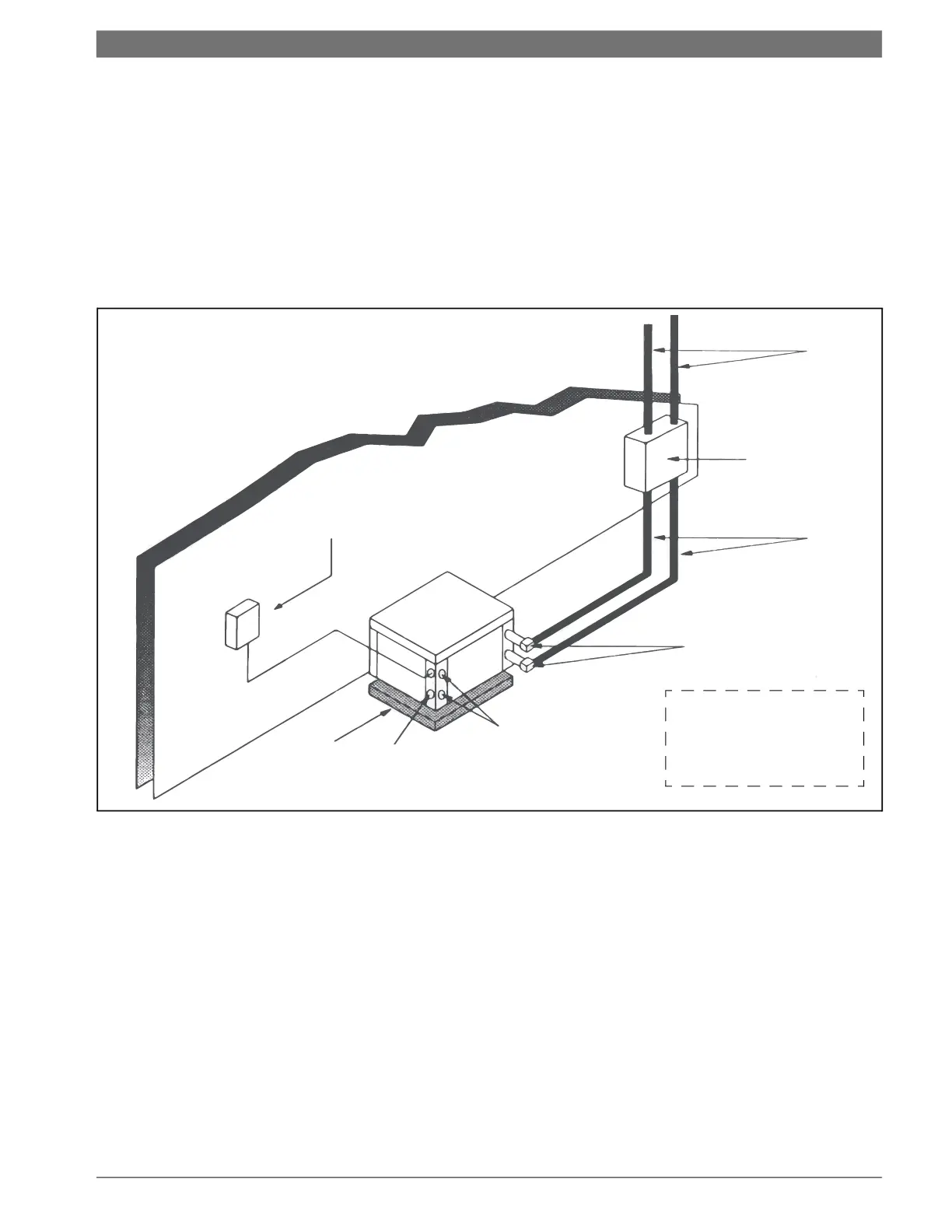

Fig. 7 Typical Geothermal System Setup
[1] Polybutylene or Polyethelene with insulation
[2] Ground loop pumping package (GLP)
[3] Ground loop connection kit
[4] P/T ports
[5] Load-side connection
[6] Low-voltage control connection
[7] Vibration pad
[8] Line voltage disconnect
This diagram shows a
typical installation and is
for illustration purposes
only. Ensure access to Heat
Pump is not restricted.
