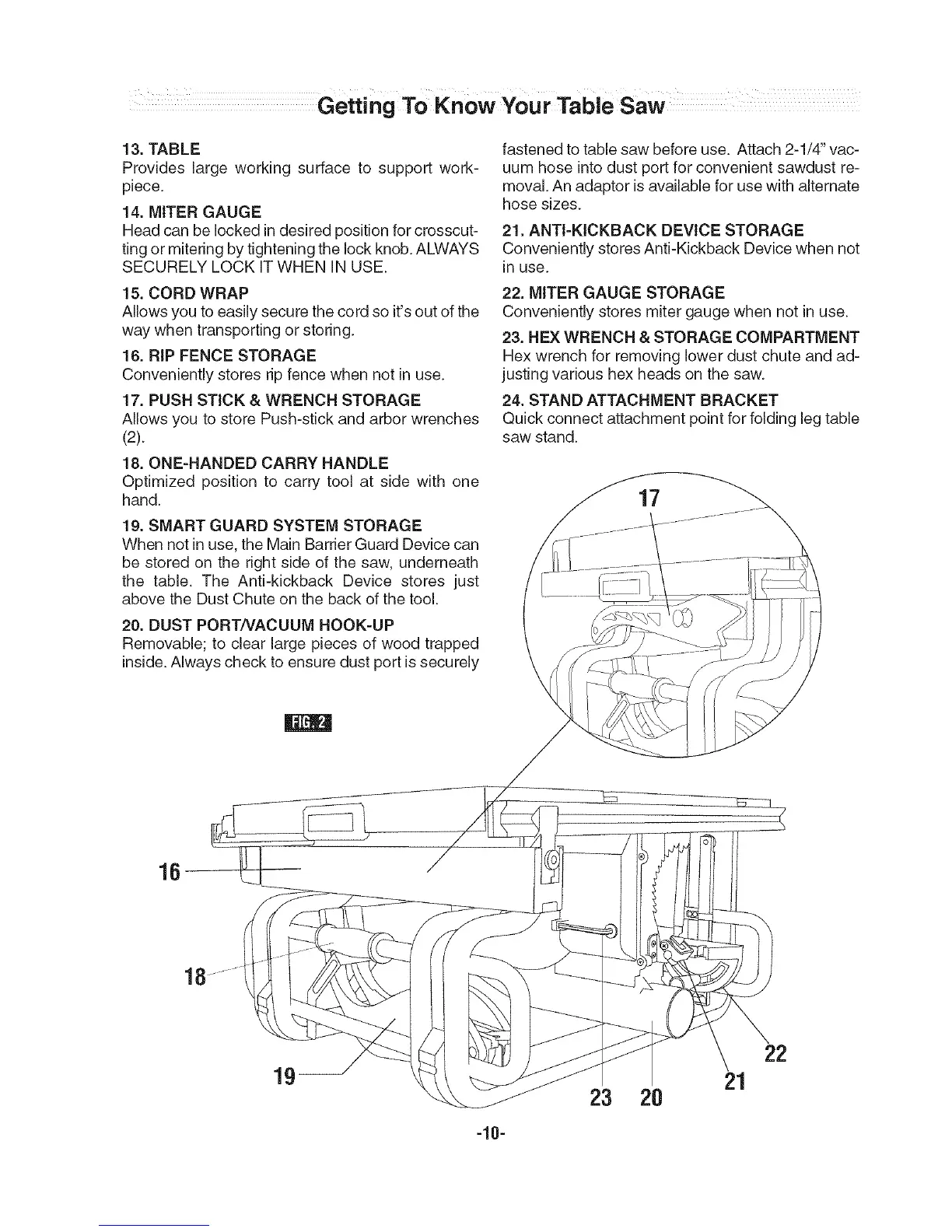

Getting To Know Your Table Saw
13. TABLE
Provides large working surface to support work-
piece.
14. MITER GAUGE
Head can be locked in desired position for crosscut-
ting or mitering by tightening the lock knob. ALWAYS
SECURELY LOCK IT WHEN IN USE.
15. CORD WRAP
Allows you to easily secure the cord so it's out of the
way when transporting or storing.
16. RiP FENCE STORAGE
Conveniently stores rip fence when not in use.
17. PUSH STICK & WRENCH STORAGE
Allows you to store Push-stick and arbor wrenches
(2).
18. ONE-HANDED CARRY HANDLE
Optimized position to carry tool at side with one
hand.
19. SMART GUARD SYSTEM STORAGE
When not in use, the Main Barrier Guard Device can
be stored on the right side of the saw, underneath
the table. The Anti-kickback Device stores just
above the Dust Chute on the back of the tool.
20. DUST PORT/VACUUM HOOK-UP
Removable; to clear large pieces of wood trapped
inside. Always check to ensure dust port is securely
fastened to table saw before use. Attach 2-1/4" vac-
uum hose into dust port for convenient sawdust re-
moval. An adaptor is available for use with alternate
hose sizes.
21. ANTI-KICKBACK DEVICE STORAGE
Conveniently stores Anti-Kickback Device when not
in use.
22. MITER GAUGE STORAGE
Conveniently stores miter gauge when not in use.
23. HEX WRENCH & STORAGE COMPARTMENT
Hex wrench for removing lower dust chute and ad-
justing various hex heads on the saw.
24. STAND ATTACHMENT BRACKET
Quick connect attachment point for folding leg table
saw stand.
17
19
-10-
23 20
22
21
