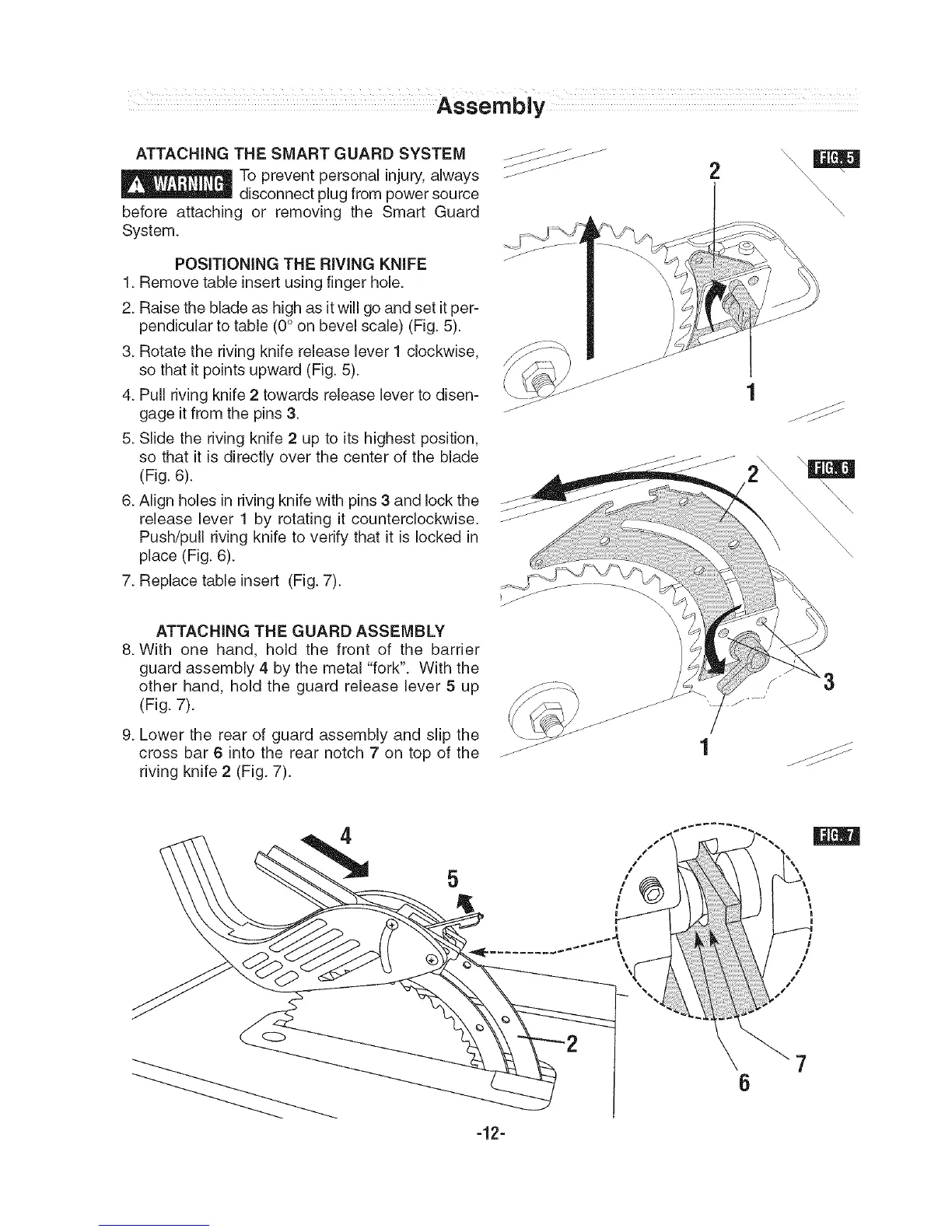

Assembly
ATTACHING THE SMART GUARD SYSTEM __J
To prevent personal injury, always //_
disconnect plug from power source
before attaching or removing the Smart Guard
System.
POSITIONING THE RIVING KNIFE
1. Remove table insert using finger hole.
2. Raise the blade as high as it will go and set it per-
pendicular to table (0 ° on bevel scale) (Fig. 5).
3. Rotate the riving knife release lever 1 clockwise,
so that it points upward (Fig. 5).
4. Pull riving knife 2 towards release lever to disen-
gage it from the pins 3.
5. Slide the riving knife 2 up to its highest position,
so that it is directly over the center of the blade
(Fig. 6).
6. Align holes in riving knife with pins 3 and lock the
release lever 1 by rotating it counterclockwise.
Push/pull riving knife to verify that it is locked in
place (Fig. 6).
7. Replace table insert (Fig. 7).
2
I
1
ATTACHING THE GUARD ASSEMBLY
8. With one hand, hold the front of the barrier
guard assembly 4 by the metal "fork". With the
other hand, hold the guard release lever 5 up
(Fig. 7).
9. Lower the rear of guard assembly and slip the
cross bar 6 into the rear notch 7 on top of the
riving knife 2 (Fig. 7).
-12-
