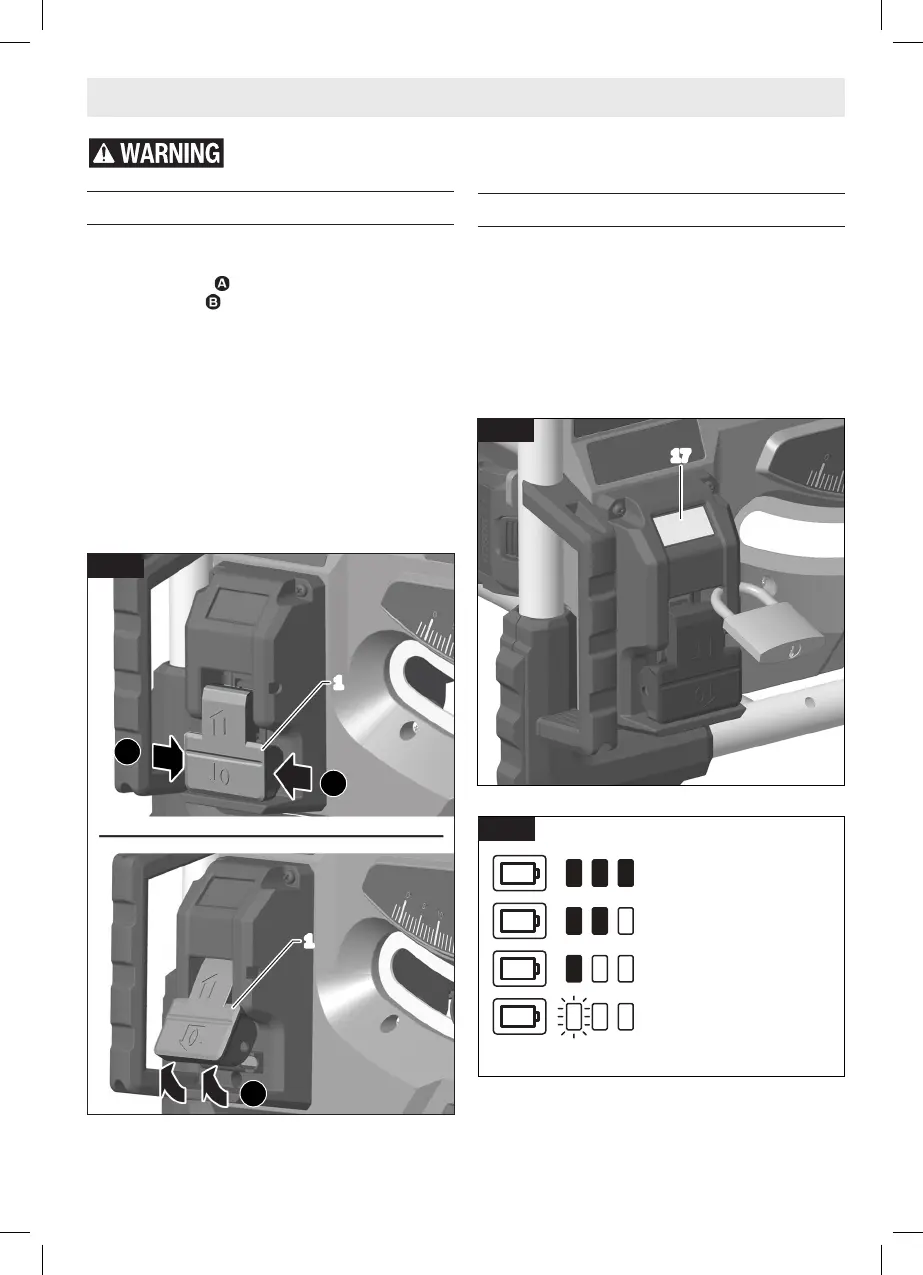

Fuel Gauge
(Fig. 57, Fig. 58)
The Fuel Gauge 17 is an LED display that indi-
cates the approximate level of charge remaining
in the Battery Pack 29.
The Fuel Gauge 17 will illuminate when a battery
pack is inserted and the saw is turned on.
The Fuel Gauge 17 will stay illuminated for 3 sec-
onds after the saw has been turned off.
Power Switch
(Fig. 56, Fig. 57)
To turn the saw on, pinch the side walls of the
Power Switch 1 and lift the Power Switch 1,
by pulling it up .
To turn the saw off, push the Power Switch 1
lever down to its original position.
To prevent unauthorized use, the Power Switch
1 can accommodate a padlock with a 1/4”
(6.3 mm) diameter shackle (not provided with
the table saw).
The Fuel Gauge 17 will illuminate when a battery
pack is inserted and the saw is turned on.
The Fuel Gauge 17 will stay illuminated for 3 sec-
onds after the saw has been turned off.
Basic Table Saw Operations
To prevent personal injury, always disconnect the Battery Pack before per-
forming any assembly, adjustment, or repair.
17
Fig. 57
60% to 100% charged
30% to 60% charged
5% to 30% charged
0% to 5% charged
* flashing
*
Fig. 58
1
1
A
A
B
Fig. 56
