Bosch HP270-2 - Troubleshooting - Codes E13 & E15; E13 - Lock Out Error (Top NTC Position); E15 - Lock Out Error (Circulation Pump)

Page 55 from 56 6-720-821-364 SM HP270 – 250 - 200 2016/12 en

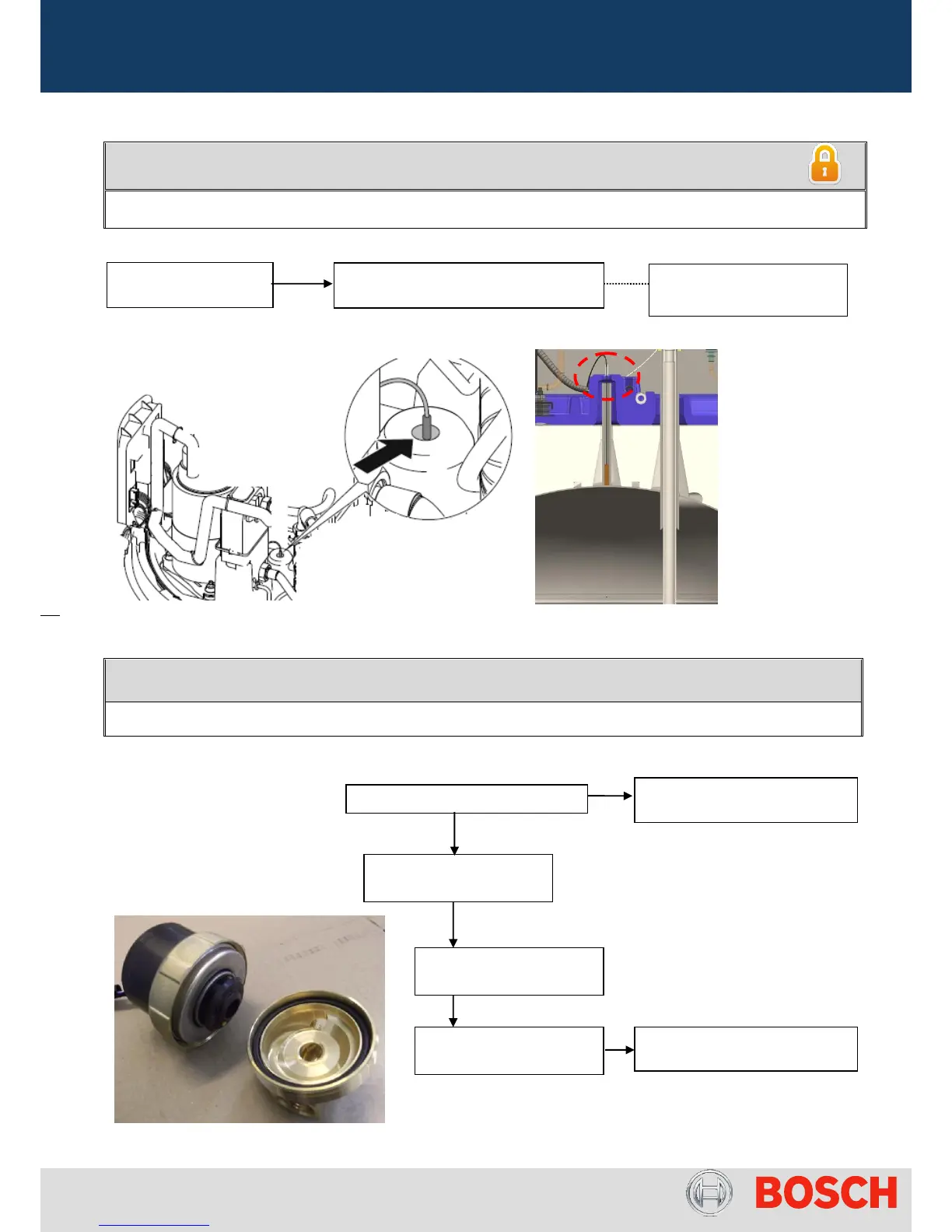

Code E13 – Lock Out Error (reset by pressing OK for more than 3 sec) (HP 200_250-1 / 270-3)
Incorrect position of Top NTC temperature sensor (reading of tank top temperature)
Note: detection done by NTC T dis > T top +30ºC during 3 min)
Code E15 – Lock Out Error (reset by pressing OK for more than 3 sec) (only HP 270-3)
Circulation pump with insufficient rotation
Sensor out of
position?
Correct position and ensure enter +/-
30 cm (until white sticker)
Note: due to new bottom sensor
position, it is possible to detect if
top NTC is correctly placed
Measure input signal to pump:
Brown – White: 8 – 24 V dc
Pump is blocked?
Open pump by removing
motor from housing
Yes
Remove dirtiness from
pump blades
Check parameter 10d:
expected value > 50 Hz
Measure feedback signal:
Yellow – white: 100 Hz
