Bosch IMSA Prototype Classes Scrutineering System User Manual

13 | Online Measurement
102/148 DDU 9 Bosch Motorsport

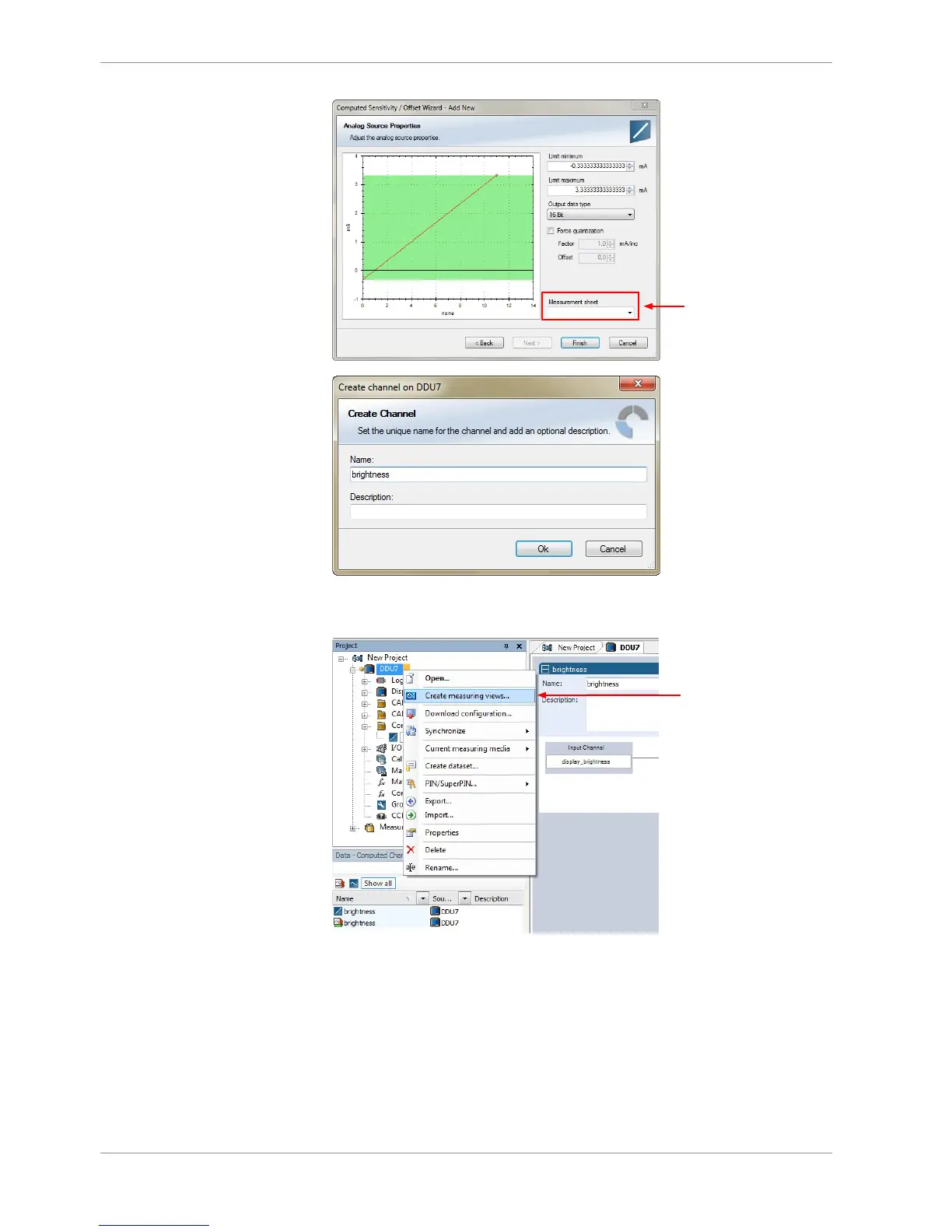

Select existing sheet
from list or enter name
of new sheet
2. To create the sheets, right-click on DDU 9 and select ‘Create measurement views…’
from the DDU 9 context menu.
Click to create
measurement sheets
The automatically created sheet is inserted in the Project Tree under ‘Measurement
Container’ and ‘Device Channels’. If the DDU 9 is connected to RaceCon and the
status is green, live values of the channels are shown.
13.1.2 Using the measurement sheets
1. When RaceCon is online, press the ‘F11’ key to switch from ‘Design Mode’ into ‘Race
Mode’. The measurement sheet is extended to full screen. The button for offset calib-
ration is active.
