10.5 Math and condition channels
10.5.1 Math channels
Math channel
– Arithmetic and logical operations on up to 4 measurement channel(s)
– Numerical result
– Result can be used as input source for various display elements (numeric elements,
alarms, Bargraphs) and further calculations in the whole RaceCon project
Conditional function
– Arithmetic and logical operations on one or more measurement channel(s)
– If-Else structure with reset
– Numerical result
– Result can be used as input source for various display elements (numeric elements,
alarms, Bargraphs) and further calculations in the whole RaceCon project
All math channels can be used globally in the whole DDU 9 project.
10.5.2 Creating a new math channel

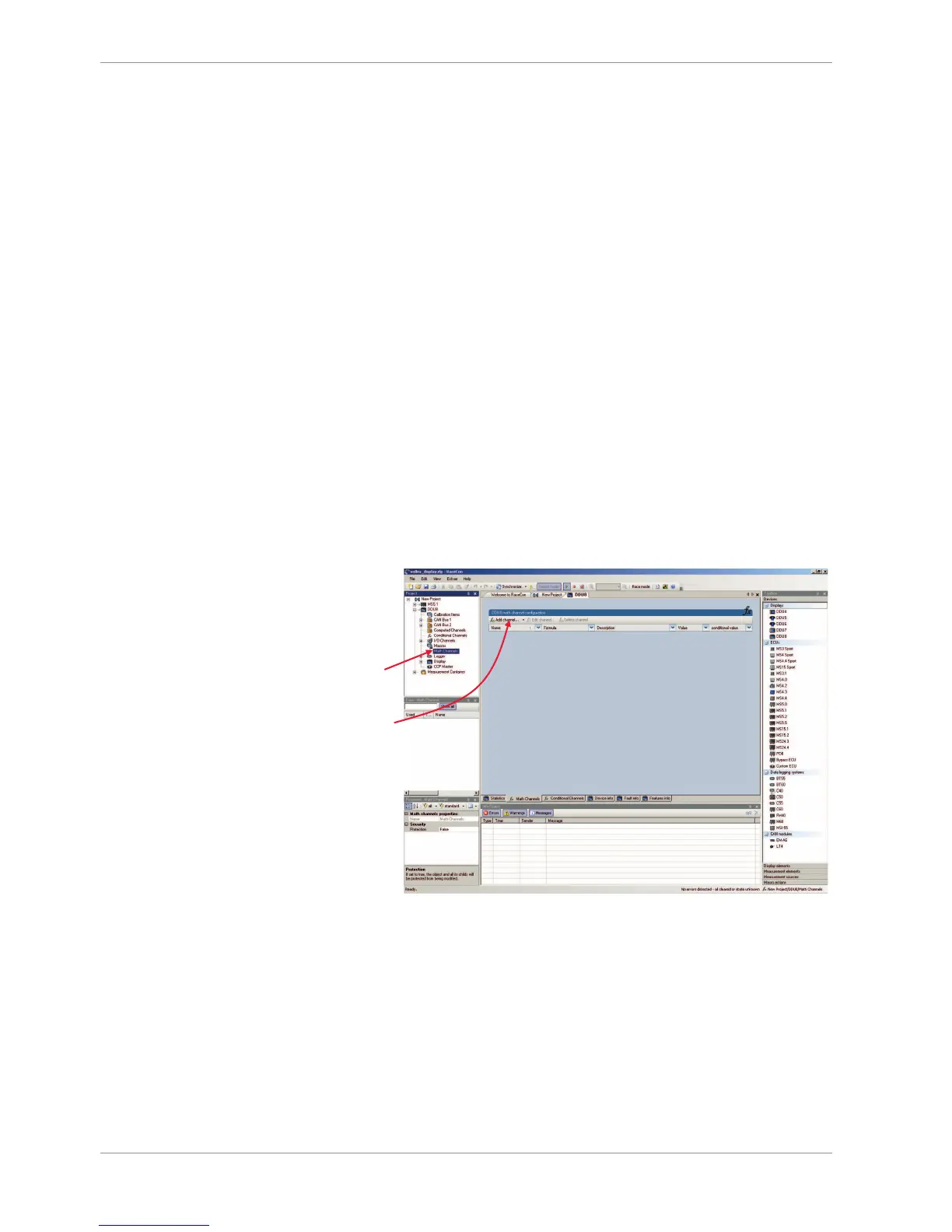

1. Follow the steps shown in the screenshot.
1
st
: Double-
click on ‘Math
Channels’ in
DDU 8 Project
Tree
2
nd
: Click on
‘Add channel’
The ‘create/edit math channel’ window appears.
Create/Edit Math Channel Window
1. Define the math channel using the following configuration possibilities:
