Bosch IMSA Prototype Classes Scrutineering System User Manual

14 | Recording
110/148 DDU 9 Bosch Motorsport
14 Recording
14.1 Features
– Synchronized recording of DDU 9 analog and digital input channels, DDU 9 internal
measurement channels, ECU data, Data from external sensor interfaces
– Up to two independent recordings
– Measurement rate 1 ms to 1 s
– Two global start conditions (thresholds)
– Up to 16 measurement conditions (fast-slow-switches)
14.2 Configuration of recordings

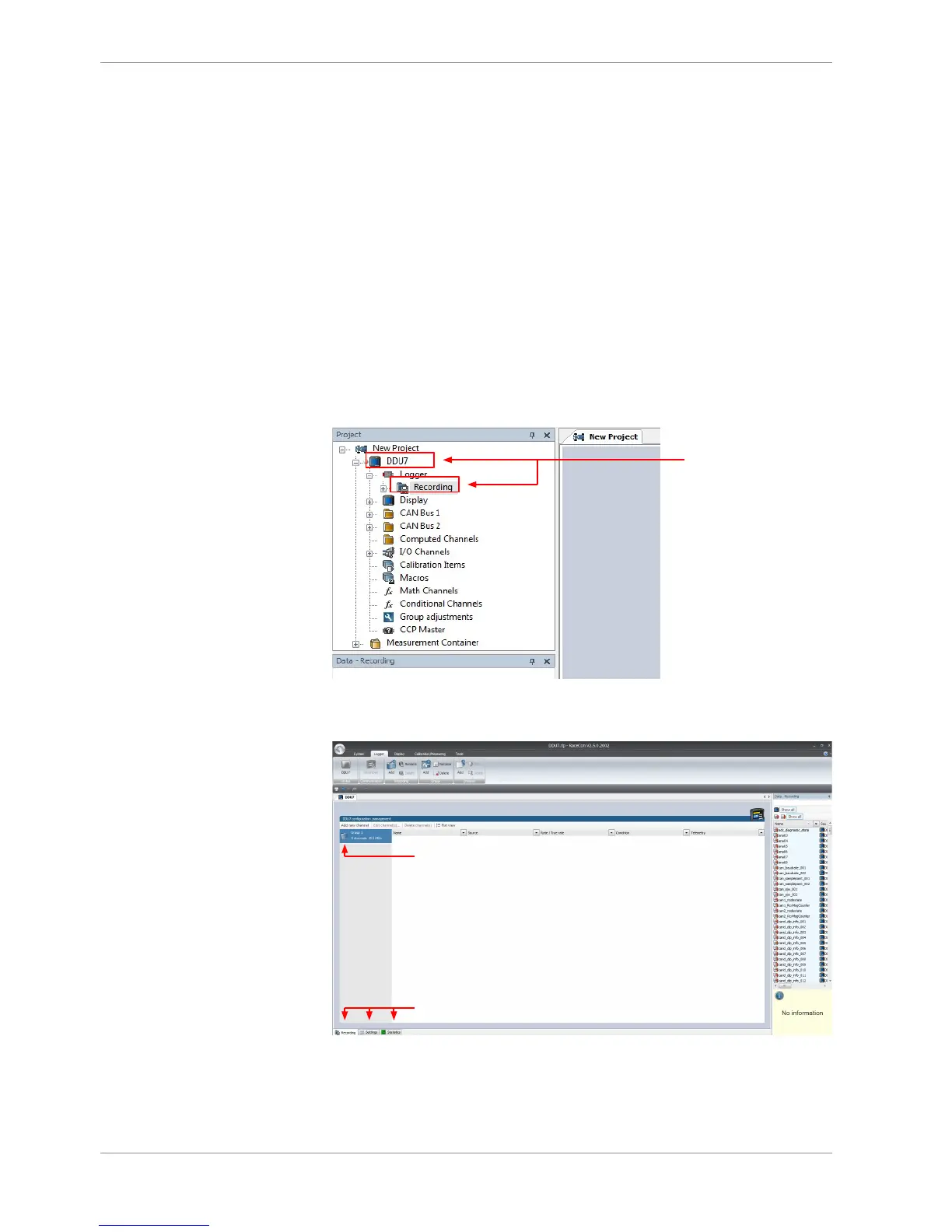

1. Expand the list of ‘Loggers’ by clicking on ‘+’ in the DDU 9 Project Tree.
Double-click to display
the configuration
(automatically change
to "Logger"
2. Double-click on ‘Recording’ in DDU 9 Project Tree. The recording configuration is dis-
played in the Main Area.
Variables can be grouped
Tabs to access conditions, settings and statistics
3. To add measurement channels to a recording, click ‘DDU 9’ in the DDU 9 Project Tree.
In the Data Area, the measurement channels are displayed.
4. Drag and drop desired measurement channels into recording group.
