Online Measurement | 13
Bosch Motorsport DDU 9 105/148
13.3 Group adjustment
Group adjustment is the simultaneous online calibration of several channels. This is useful
e.g. to set all wheel forces and damper positions to ‘0’ when the vehicle is positioned on a
flat patch.
13.3.1 Configuration of group adjustment
Group adjustment consists of two components:
– An input channel which triggers the adjustment event
– A group of input channels linked to the group adjustment event
13.3.2 Setting up the group adjustment trigger channel

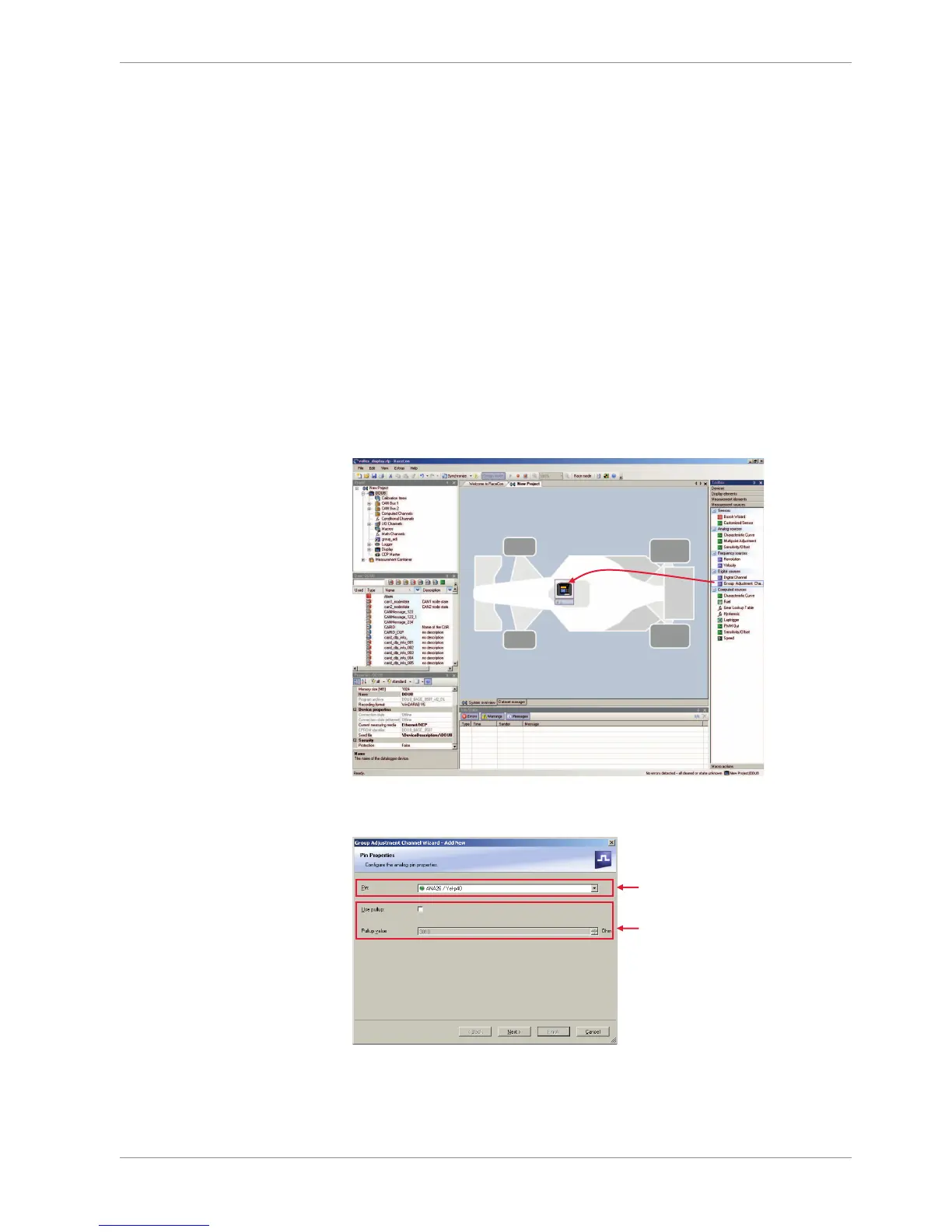

1. Click ‘Measurement Sources’ in the Toolbox.
2. Drag the ‘Group Adjustment Channel’ element from the Toolbox and drop it on the
DDU 9
Drag +
drop
A ‘Group Adjustment Channel Wizard’ opens.
Check the box to activate
the internal DDU 8 pullup-
resistor and set the resistor
value
Select the pin to which
the sensor shall be
connected
