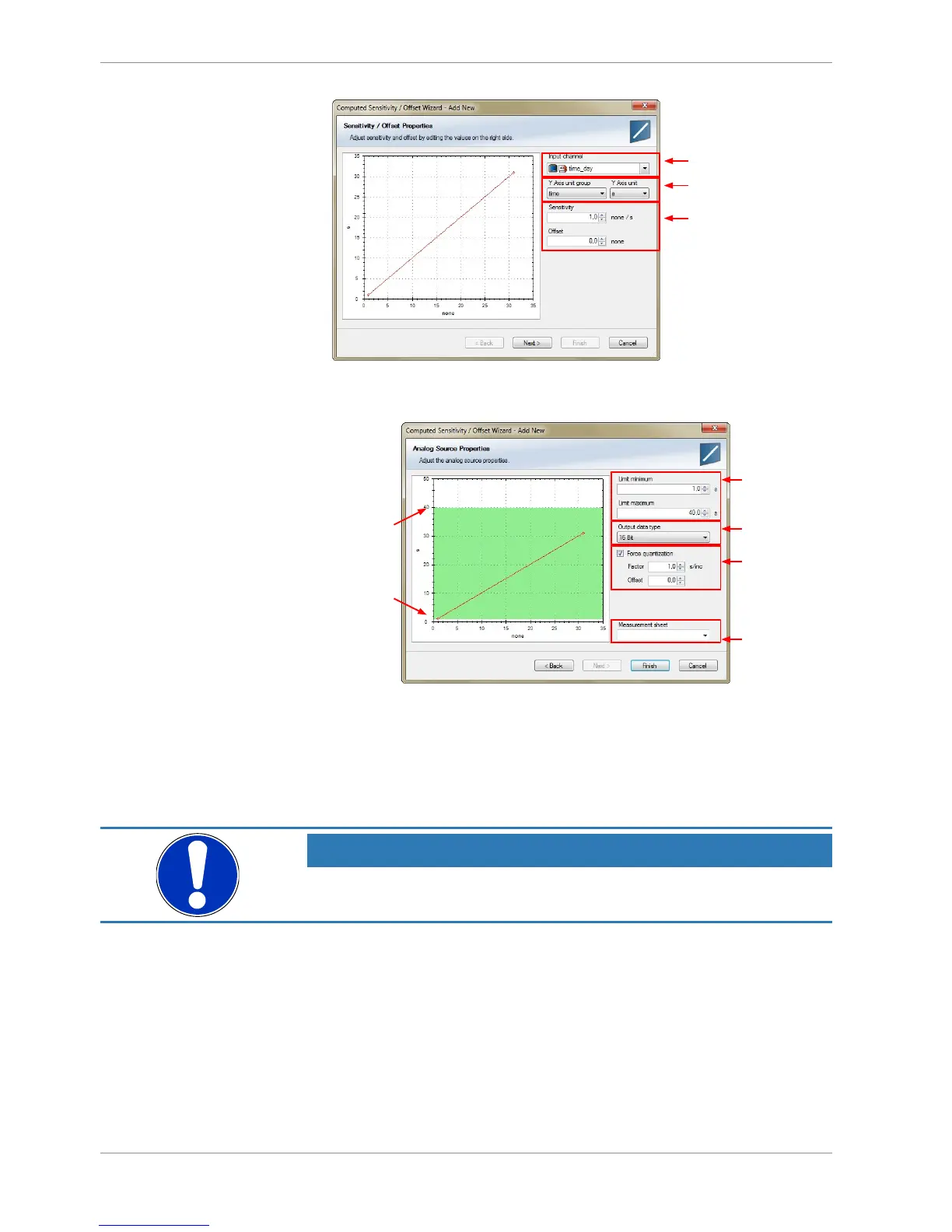

Choose input channel
Choose unit group and
unit of output
Enter sensivity and offset
of conversion formula
3. Click ‘Next’ when done.
The second part of the ‘Computed Sensitivity/Offset Wizard’ opens.
Physical limits
of channel
Enter physical limits
of the channel
Choose data type of
the measurement
variable
Check the box to
force the channel's
quantization if the
quantization should
be a fixed value in
the whole CAN
system.
Enter name to auto-
matically create a
new measurement
sheet.
4. Click ‘Finish’ when done.
5. Enter channel name and description.
6. Click ‘OK’ when done.
The channel is inserted into the DDU 9 Project Tree.
NOTICE
Working with automatically created measurement sheets is ex-
plained in chapter ‘Setting up an online measurement’.
12.4 Hysteresis
The hysteresis function avoids the high-frequent switchover of the measurement channel
value. The hysteresis can be adjusted for each input measurement channel individually
and can be used for further processing.
1. Click ‘Measurement Sources’ in the Toolbox.
2. Drag the ‘Hysteresis’ computed source from the Toolbox and drop it on ‘Computed
Channels’ in the DDU 9 Project Tree.
A ‘Hysteresis Wizard’ opens.
