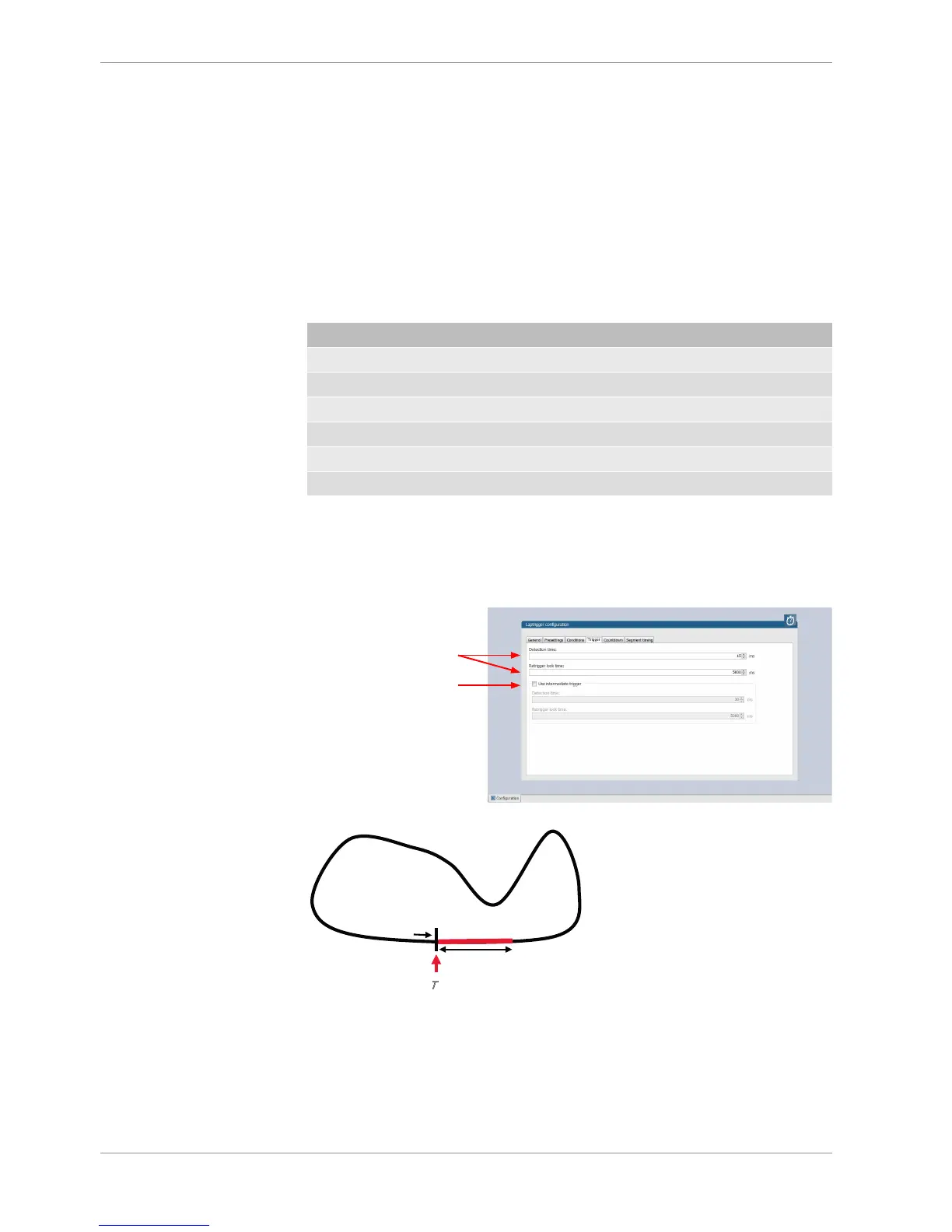

15.3 Lap timing
There are different possibilities to adjust the lap trigger to the timing situation.
The detection time defines the minimum time the input signal changes its state. E.g. a low
active signal needs to be below the threshold for min. 15 ms to release the trigger.
Channels for display
To display lap times use the following channels:
Channel Function
Laptrigger_lapctr_dls Number of completed laps
Laptrigger_laptime_dls Running laptime
Laptrigger_laptime_best_dls Laptime of best lap
Laptrigger_laptimeold_dls Laptime of last lap completed
Laptrigger_laptimeseg_dls Segment time of last segment
Laptrigger_lapctr_dls Number of completed laps
15.3.1 Time based retrigger protection
Trigger is locked for 5 s after main trigger was received.
To deactivate time based retrigger protection, set ‘Retrigger lock time’ to 0 ms.
Define settings for lap timing
(main trigger).
Define settings for sub trigger.
Not applicable with a GPS lap trigger.
5000ms
Main Trigger
15.3.2 Distance based retrigger protection
Trigger is locked until configured min distance (i.e. 80 % → 3200m) of track distance (i.e.
4000m) has been covered. To deactivate distance based retrigger protection, set min dis-
tance to 0 %.
