7. Enter the physical value in the value column of the desired calibration point (e.g. 745
N).
8. Press the ‘Calibrate’ button of the desired calibration point.
9. Repeat for all curve points.
10. Click ‘Close’ when done.
The calibration curve is displayed in the online view.

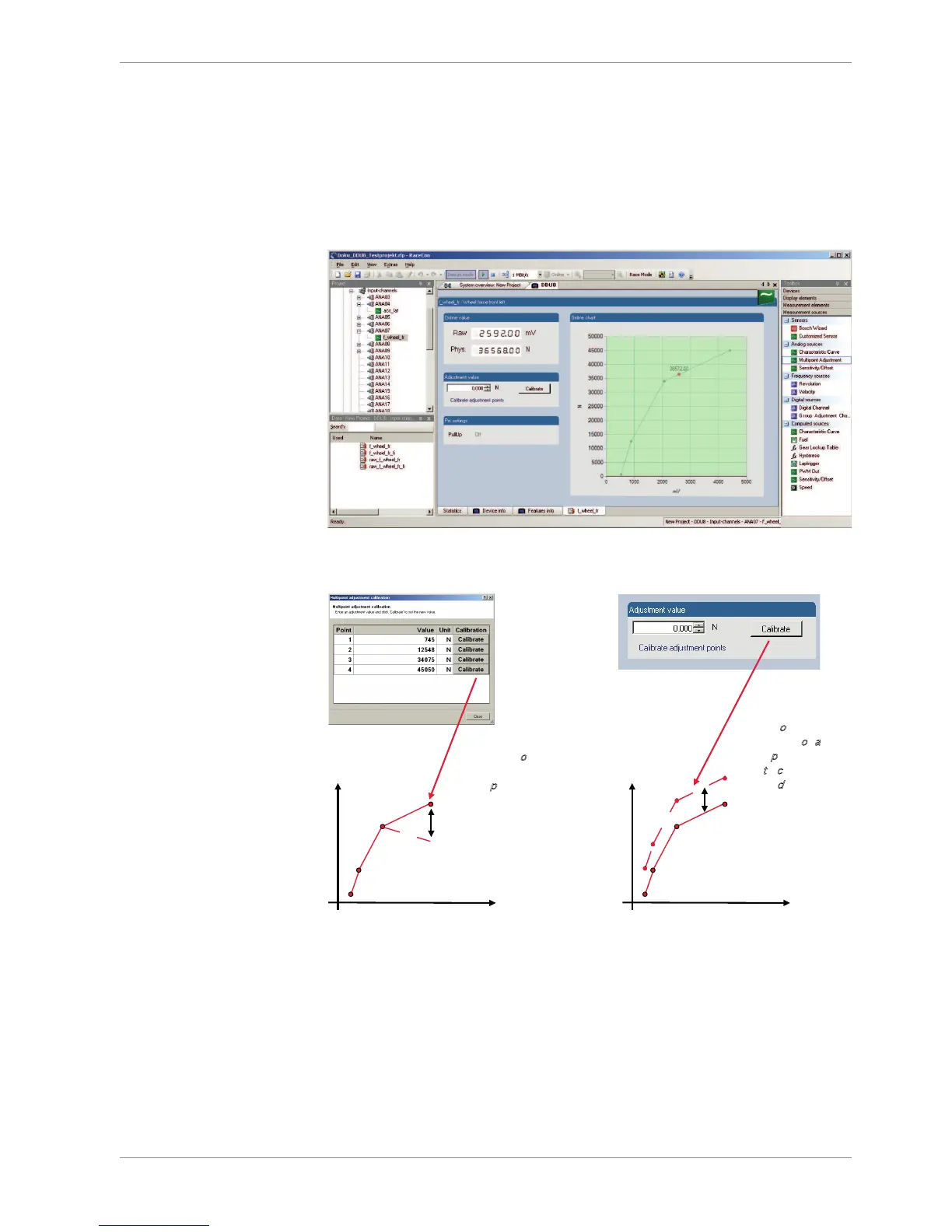

Adjustment points vs. offset adjustment
U
IN
F
wheel_FR
Calibration of
i
ndividual
c
urve points
U
IN
F
wheel_FR
Overall offset
a
djustment of all
c
urve points.
E
.g. to compensate
s
ensor drift
