Bosch IMSA Prototype Classes Scrutineering System User Manual

14 | Recording
116/148 DDU 9 Bosch Motorsport

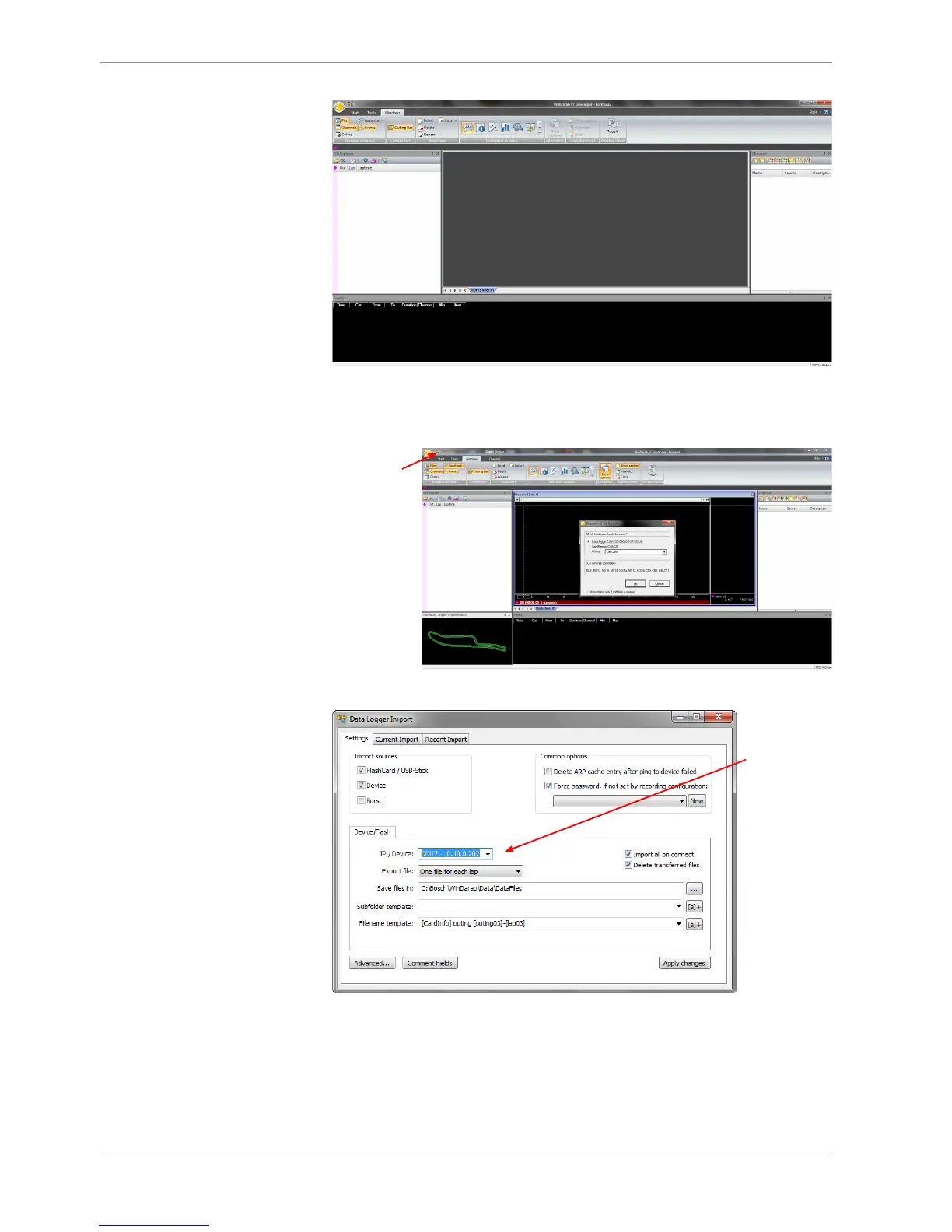

9. Click on the ‘Import/Export’ icon.
10. Select ‘Data logger CXX/DDUX/MSX and click ‘OK’ when done. The ‘Read measure-
ment data’ dialog opens.
Click
'read data from
logging device'
11. Click on ‘Settings’ tab and select the option ‘Flash Card/USB Stick’.
Choose your DDU
from dropdown list
12. Activate ‘Apply changes’.
Insert the USB device into the PC. Data transmission from device starts automatically.
Measurement files are stored automatically in the base folder.

Bosch IMSA Prototype Classes Scrutineering System Specifications

General

Brand	Bosch
Model	IMSA Prototype Classes Scrutineering System
Category	Monitor
Language	English
