Bosch IMSA Prototype Classes Scrutineering System User Manual

Lap Trigger | 15
Bosch Motorsport DDU 9 125/148

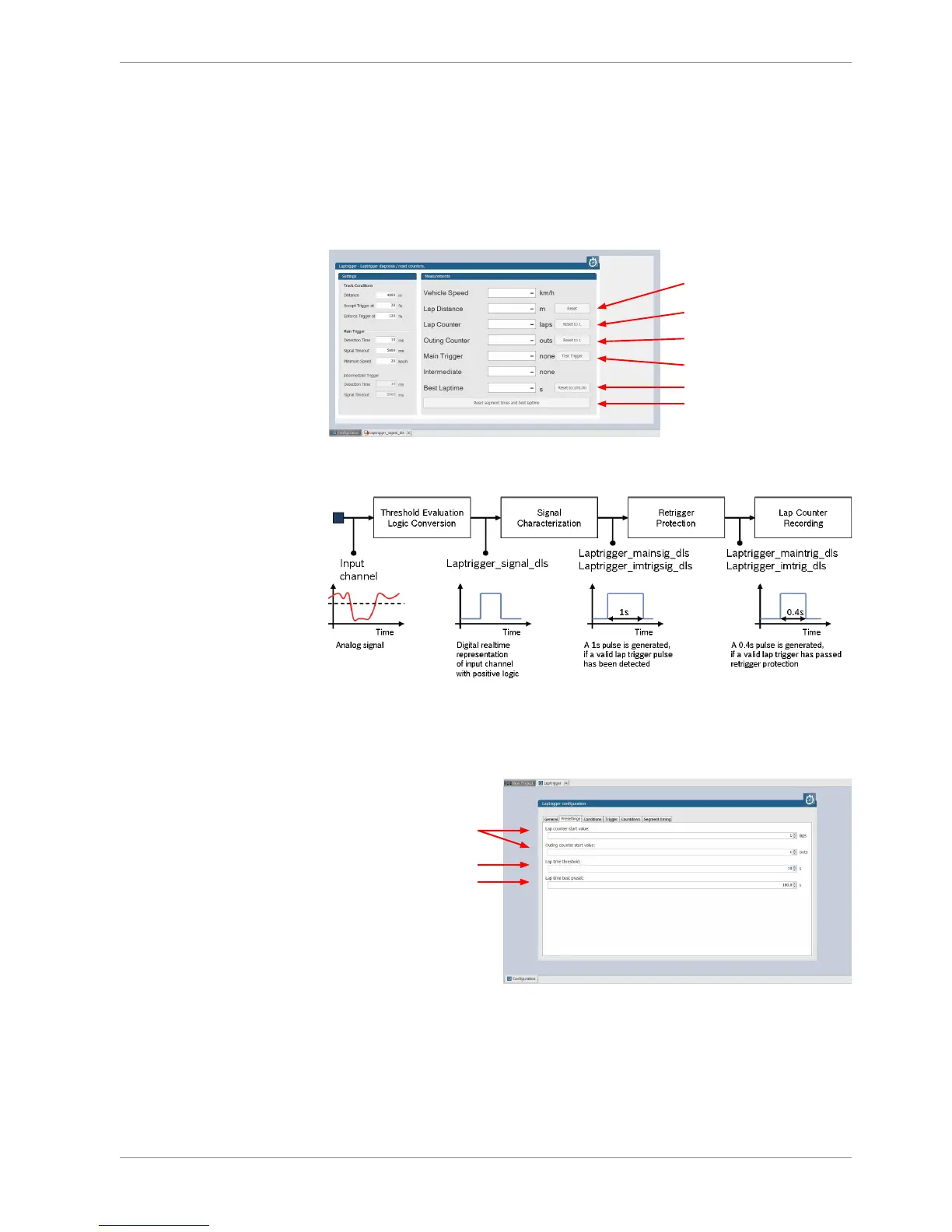

15.1.5 Lap trigger channel diagnosis/counter reset
To display a quick lap trigger channel diagnosis and to reset counters use the diagnosis
page in RaceCon. Any ‘Laptrigger_xxx’ channel can be displayed.
Double-click on any ‘Laptrigger_xxx’ channel in the Data Area. Example: ‘laptrigger_lap-
dist_dls’
A diagnosis window opens in Main Area.
Button to reset lap distance to 0
Button to reset lap counter
Button to reset outing counter
Button to generate trigger signal
Button to reset best lap time
Button to reset best lap time and
distance-based segmentation
Lap trigger diagnosis scheme
15.1.6 Lap trigger presettings
When the reset buttons on the diagnosis page are activated, these values are used.
Preset values for lap counter
and outing counter
Minimum laptime that a new
'best laptime' is accepted
Preset value for 'best laptime'
15.1.7 GPS Lap trigger
The GPS lap trigger uses a GPS signal to trigger the lap timer. To function this timer an ex-
ternal GPS sensor (see GPS Sensor) has to be connected to the device and a detection
point with a detection range has to be defined in RaceCon.
