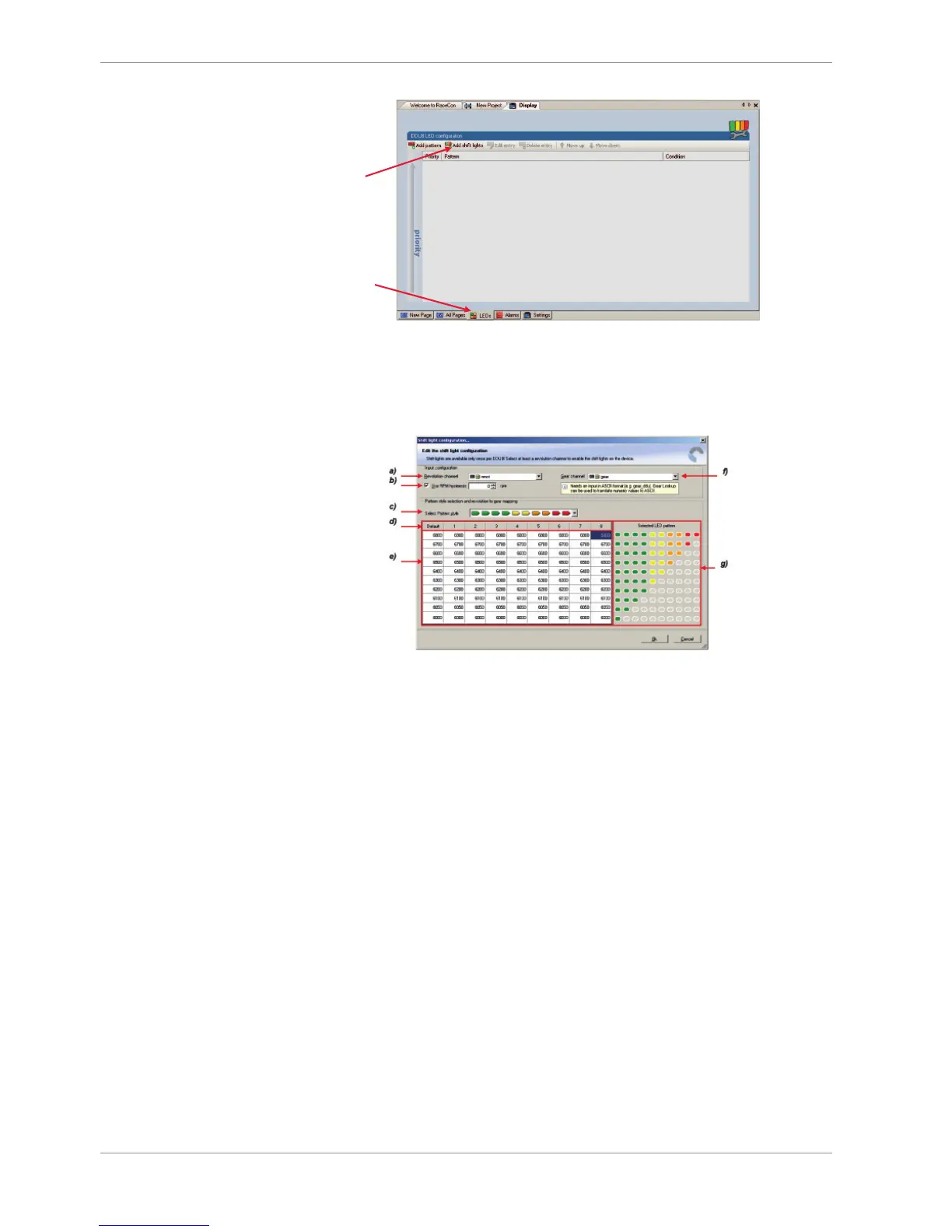

The shift light configuration window appears.
Shift Light Configuration
1. Set up the shifting lights using the following configuration possibilities:
a) Choose the measurement channel for ‘Revolution’. Revolution must have 1/min quantization.
b) Enter the limit value when the RPM hysteresis function is active. The RPM hysteresis function avoids
the high-frequent switchover of the measurement channel value.
c) Choose a predefined Pattern style.
d) Define the gear (must be ASCII quantization). Only if gear channel is used.
e) Define the RPM-limits individually for each LED and each gear.
f) Choose the measurement channel for ‘Gear’. Gear must have an ASCII quantization (1st gear=‘1’= 49,
2nd gear=‘2’= 50, …). (ASCII quantization is standard for the ‘gear’ channel of Bosch ECUs. If you get the
gear information of a different control unit as the Bosch ECU (e.g. a gearbox control unit), use the Gear
Lookup Table to translate numeric values to ASCII format. For more information see chapter
'Converting a gear channel to ASCII representation'.)
g) Choose the number and color of the LEDs corresponding to the RPM-limits shown in the table.
You can choose the number and color of each LED individually by right-clicking.
2. Click ‘OK’ when done.
The configuration is displayed in the DDU 9 LED Configuration window.
10.3.2 Converting a gear channel to ASCII representation
If you get the gear information of a different control unit as the Bosch ECU (e.g. a gearbox
control unit), use the Gear Lookup Table to translate numeric values to ASCII format.
1. Click on the Measurement Sources button in the Toolbox.
2. Drag the ‘Gear Lookup Table’ symbol and drop it in the ‘Computed Channels’ folder.
