Bosch IMSA Prototype Classes Scrutineering System User Manual

12 | Analog and Frequency Inputs
82/148 DDU 9 Bosch Motorsport

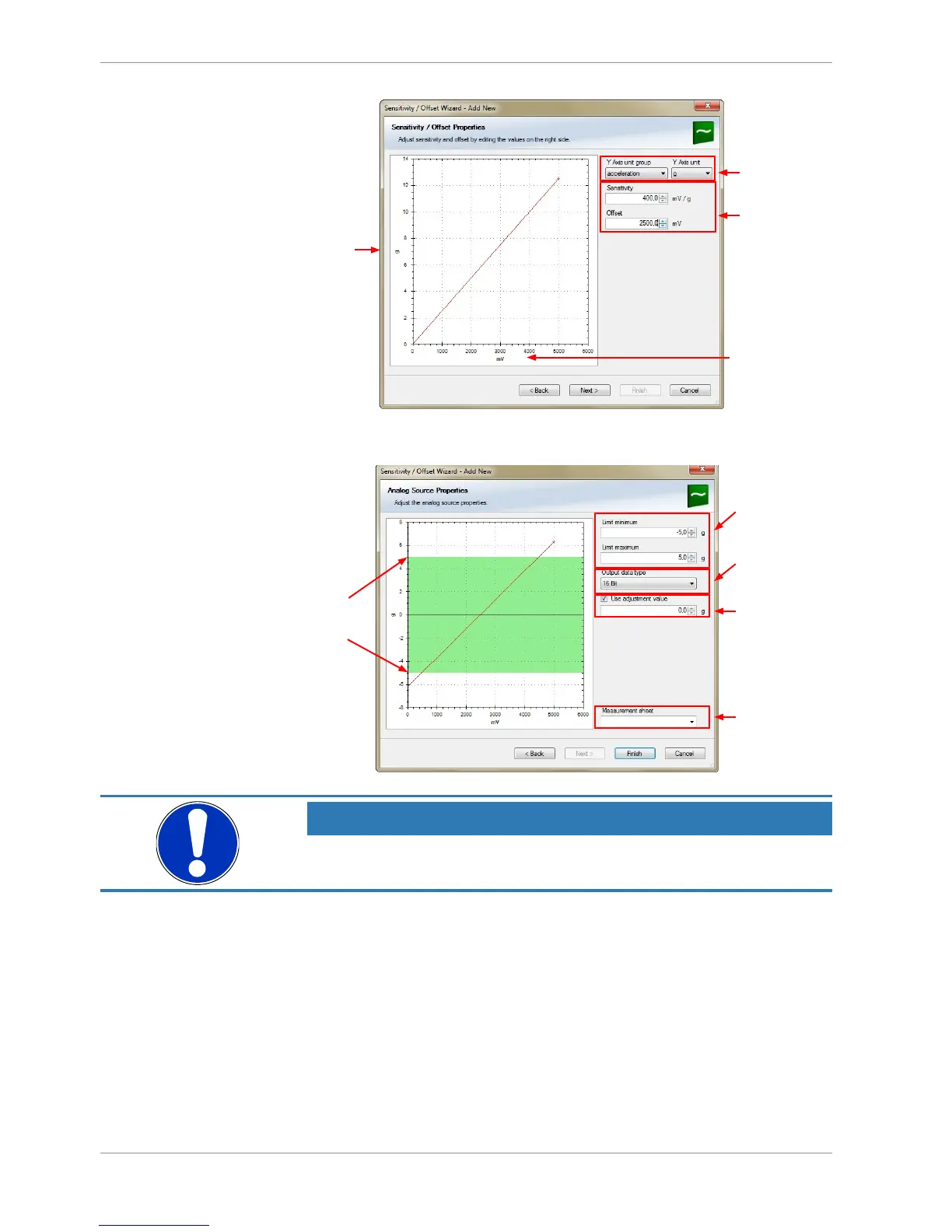

Physical
(channel)
value
Choose unit
group and unit of
physical value
Enter values from
sensor datasheet
Electrical (pin) value
6. Click ‘Next’ when done.
The third part of the “Sensitivity/Offset Wizard” opens.
Physical limits
of channel
Enter physical
limits of the sensor
Choose data type
of the measurement
variable
Check box to enable
online calibration of
offset and enter
desired physical
offset value
Enter name to
automatically create
a new measurement
sheet
NOTICE
Working with automatically created measurement sheets is ex-
plained in chapter ‘Setting up an online measurement [
}
98]’.
7. Click ‘Finish’ when done.
8. Enter a channel name and a description.
9. Click ‘OK’ when done.
The channel is inserted into the DDU 9 Project Tree.
