Bosch IMSA Prototype Classes Scrutineering System User Manual

12 | Analog and Frequency Inputs
92/148 DDU 9 Bosch Motorsport

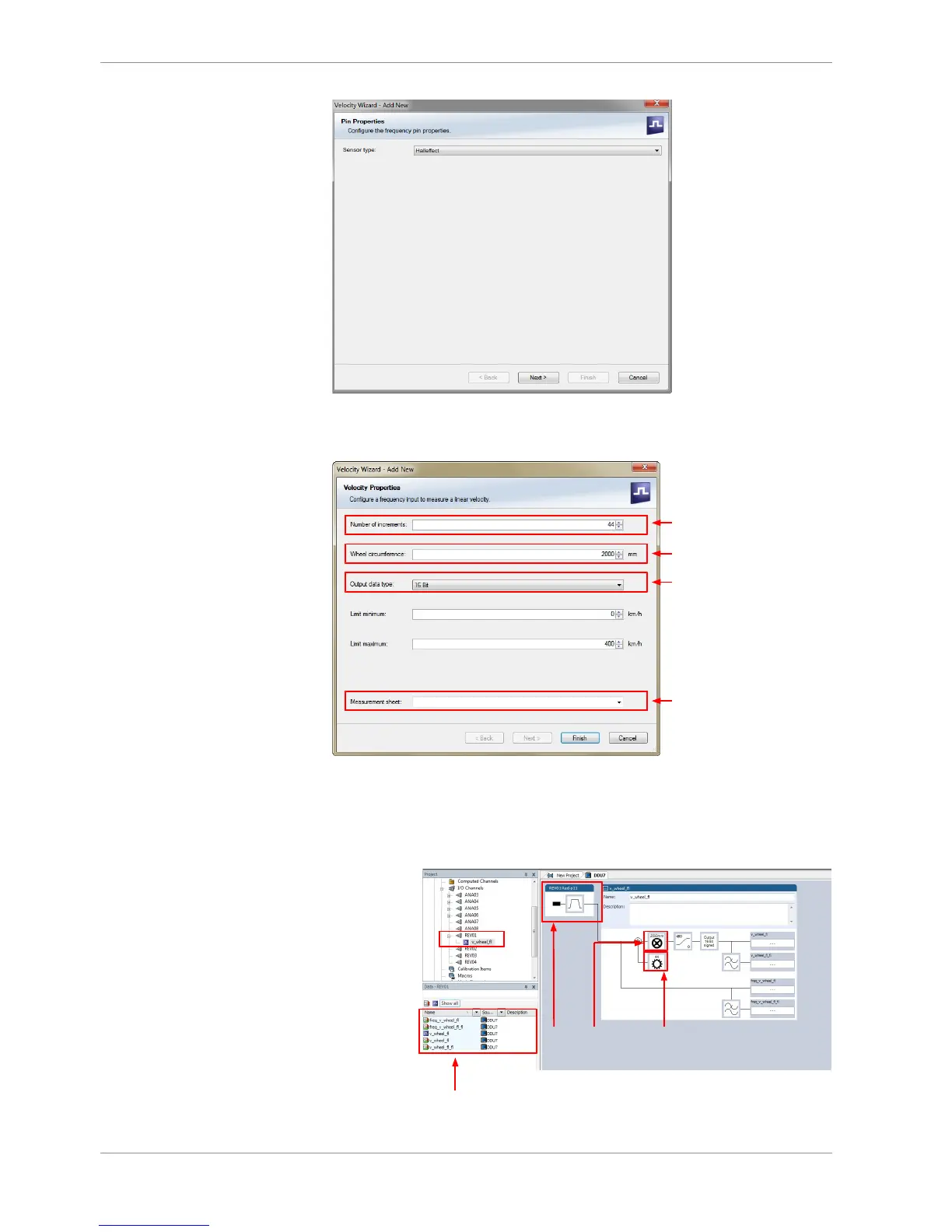

5. Click ‘Next’.
6. Define the settings for the sensor.
Number of teeth on the
pulse wheel
Circumference of wheel
for speed calculation
Choose data type of the
measurement variable
Enter name to automatically
create a new measurement sheet
7. Click ‘Finish’ when done.
8. Enter the channel name and description.
9. Click ‘OK’ when done.
The channel is inserted into the DDU 9 Project Tree.
Channel is linked
to REV01
Input pin
has hall
interface
Number of
teeth
Wheel
circumference
Available measurements for channel:
