1. Before hoisting the product, note the weight ! Catalog.
2. Hoist the product as shown in the figure using suitable load hoisting equipment.

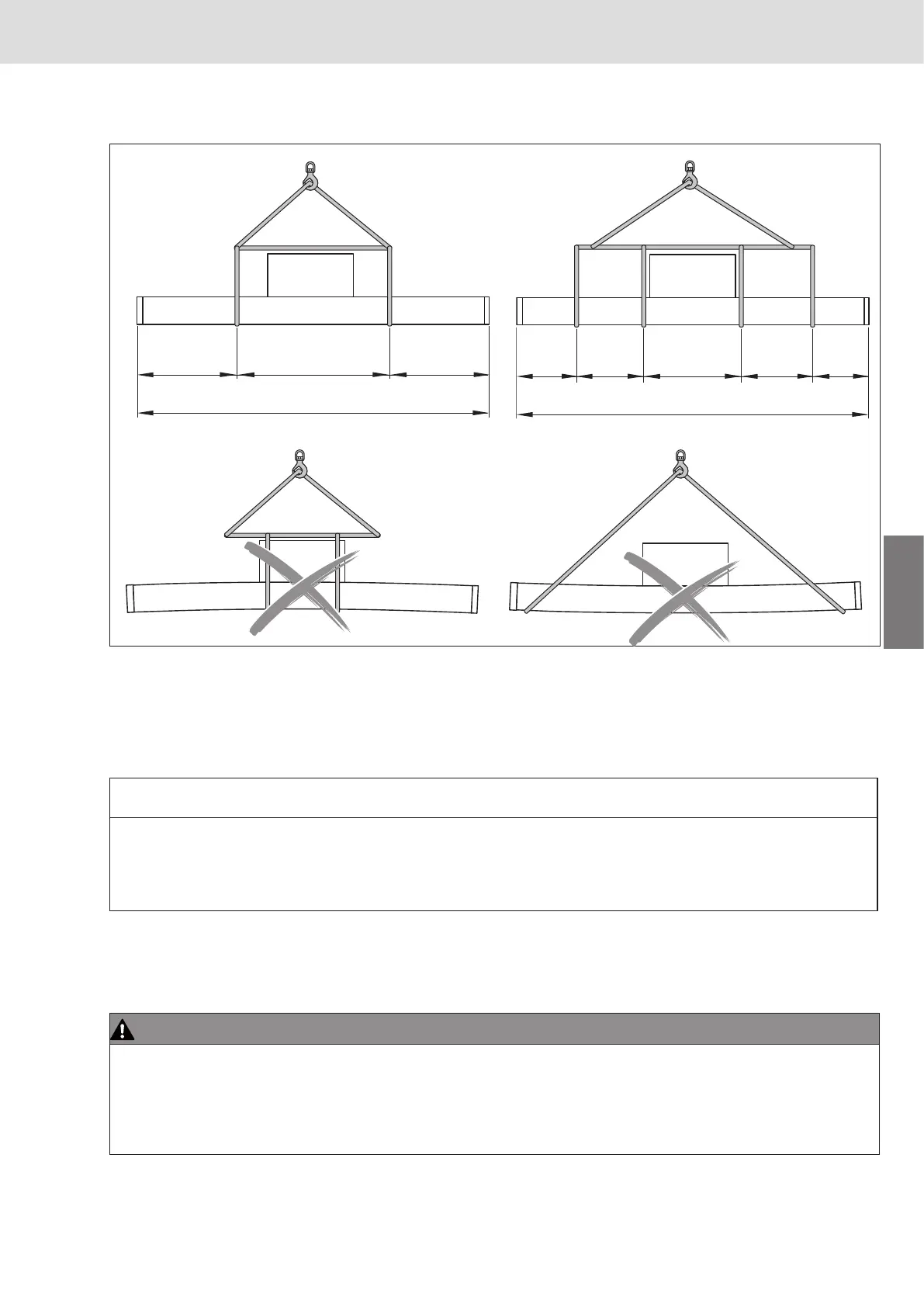

Fig�5: Hoisting the linear module
5.2 Storing the product
NOTES
Risk of damage due to improper storage!
Potential corrosion of product parts.
f Store the product only in dry, covered areas.
f Protect the product from humidity and corrosive agents.
L
LLL
LL
1
/
9
1
/
9
2
/
9
3
/
9
2
/
9
L ≤ 2,000 mm L > 2,000 mm
6 Mounting
X Dimensions and material numbers of the individual components ! Catalog.
WARNING
Danger of uncontrolled movements of the carriage due to lack of arrestor devices in vertical or slanting
installations!
Death or severe injury.
f In vertical or slanting linear modules, secure the carriage so that it cannot drop down.
f Do not stand in the fall direction of the carriage.
X Before hoisting the product, note the weight ! Catalog.
