12/62 Bosch Rexroth AG Linear modules MKK/MKR-xxx-NN-3 | R320103169/2020-08
6.3 Mounting conditions
X Take note of the operating conditions ! 17 and the catalog.
X For special operating conditions, please contact us.
X The product can generally be installed in any position.
NOTES NOTICE
Risk of damage due to improper loads!
Damage to the product.
f Do not attach any projecting loads.
6.1 Unpacking the product
1. Before hoisting the product, note the weight ! Catalog.
2. Take the product out of the packaging and remove the packing material.
3. Dispose of the packing material according to the local regulations in your country.
6.2 Required accessories
f Required fastening accessories ! Catalog.
f Use suitable screws for fastening.
NOTES
Risk of product loosening or warping due to improper fastening.
Damage to the product.
f Fasten the product using the recommended fastening elements.
f Do not secure or support the product at the end plates.
f Observe specified tightening torques.
f Observe the maximum permissible deflection f
max
(please refer to the diagrams in the catalog)!
If high system dynamics are required, supports (B) must be provided every 300 mm
.
f When mounting to the frame, keep aminimum distance of 5 mm from the end plates !  Fig.6.

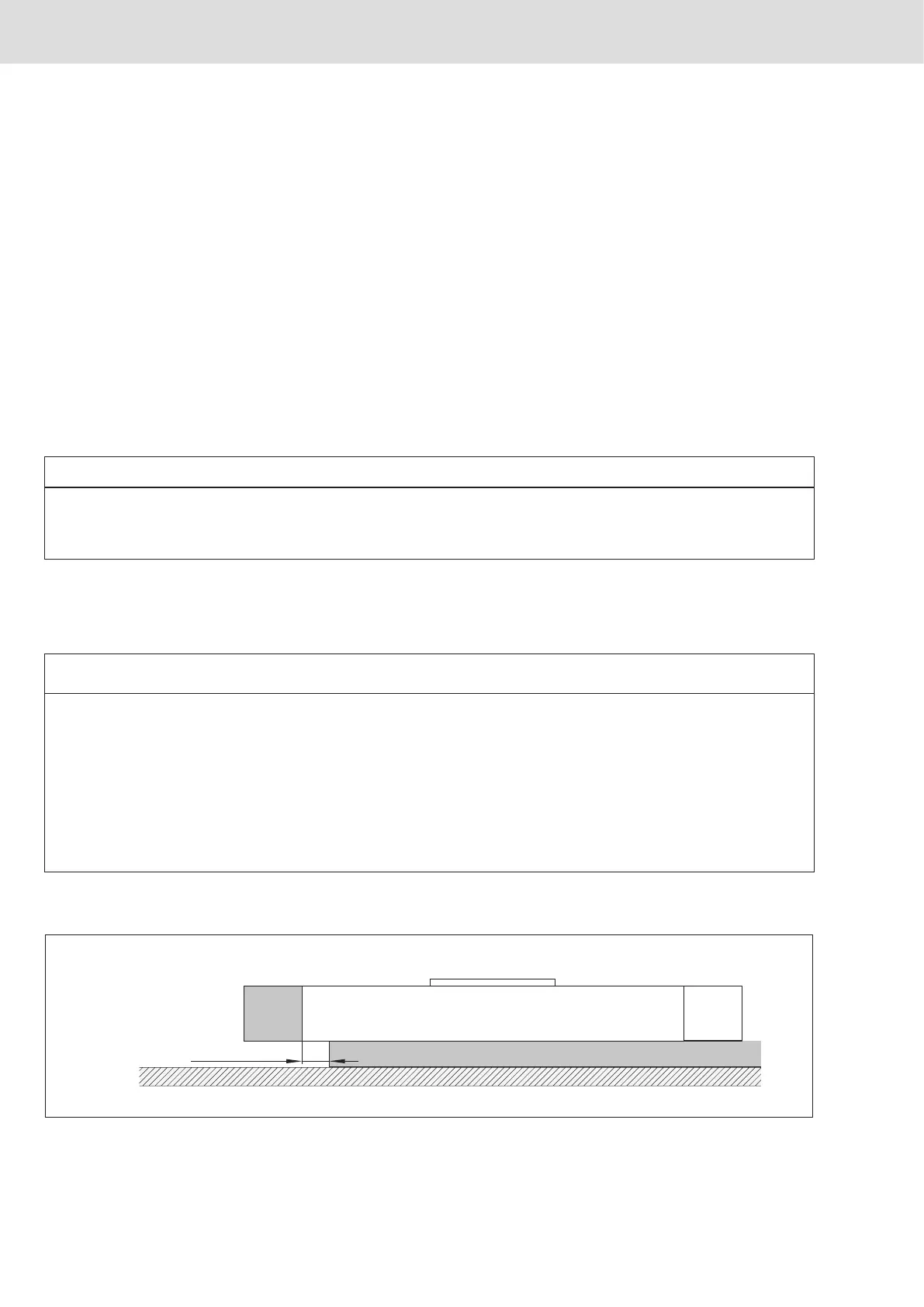

Fig�6: Minimum distance to the end plates / maximum permissible deflection
6.4 Fastening the product to the adjoining structure
A
B
min. 5 mm
f
max
F
300 mm 300 mm 300 mm 300 mm
