8/62 Bosch Rexroth AG Linear modules MKK/MKR-xxx-NN-3 | R320103169/2020-08
4 Product description
4.1 Performance description
Please refer to the notes, technical data, dimensions and descriptions of the products in the catalog.
4.2 Device description linear modules MKK

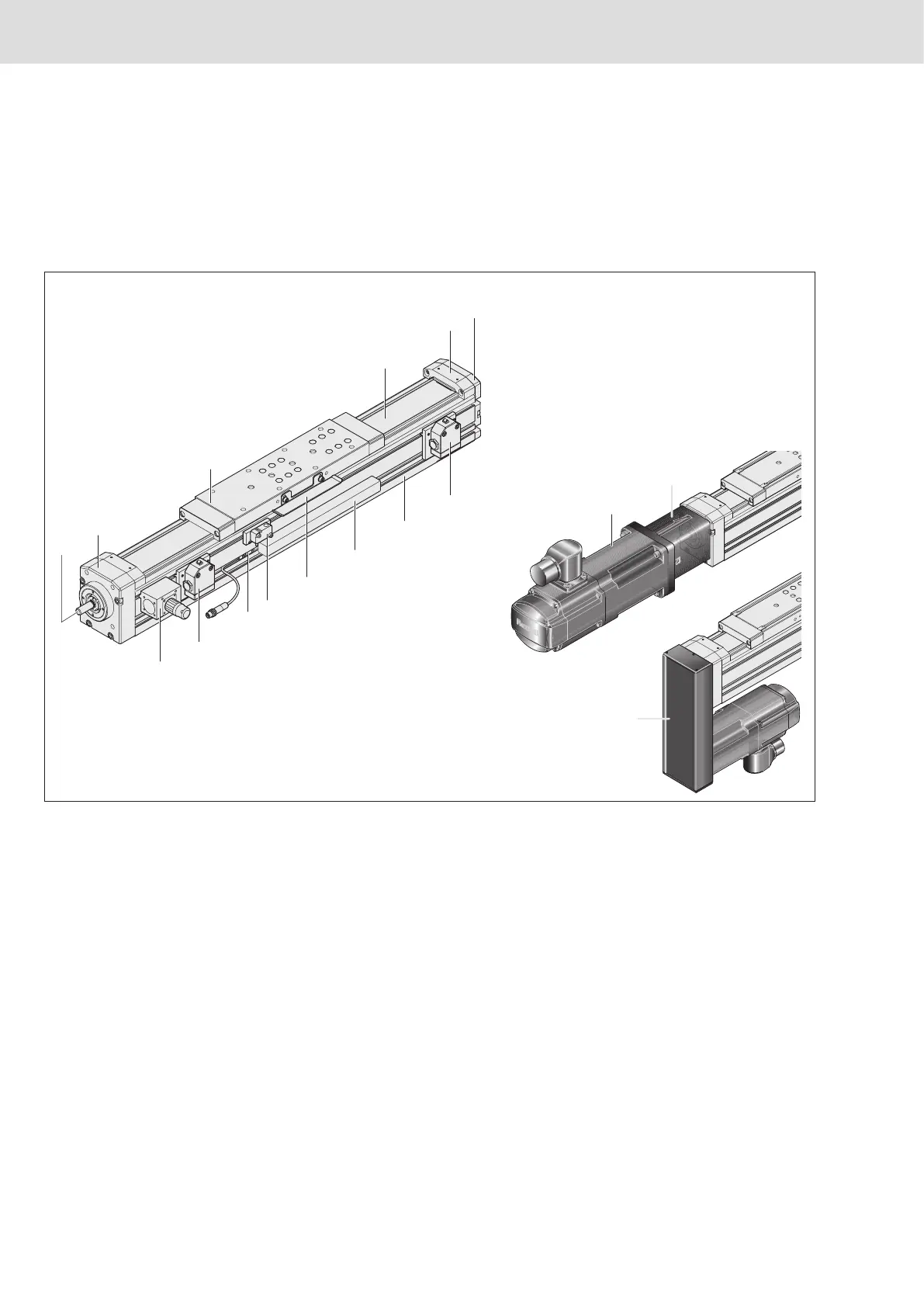

Fig�2: Components of the linear module MKK
5
6
3
4
2
1
10
12
9
13
8
7
11
10
Linear modules MKK feature the following
Components:
1 Ball screw assembly (BASA)
2 End block fixed bearing
3 Cover strip/bellows at size -165-NN2
4 Carriage with runner block
5 Strip fixing
6 End plate floating bearing
7 Frame
Attachments:
8 Switching cam
9 Proximity switch
10 Mechanical switch
11 Cable channel
12 Socket/plug
13 Magnetic field sensor
14 Flange
15 Servo motor
16 Belt side drive
