4.3 Device description linear modules MKR/MLR
Attachments:
8 Cable channel
9 Switching cam
10 Proximity switch
11 Mechanical switch
12 Socket/plug
13 Magnetic field sensor
14 Flange
15 Gearing
16 Servo motor
Linear modules MKR/MLR feature the following
Components:
1 Drive end enclosure
2 Toothed belt (covered)
3 Carriage with runner block
4 Cover strip (type-dependent)
5 Strip fixing (type-dependent)
6 Idler end enclosure
7 Frame
1
2
3
4
5
6
7
8
13
10
11
11
12
9
5

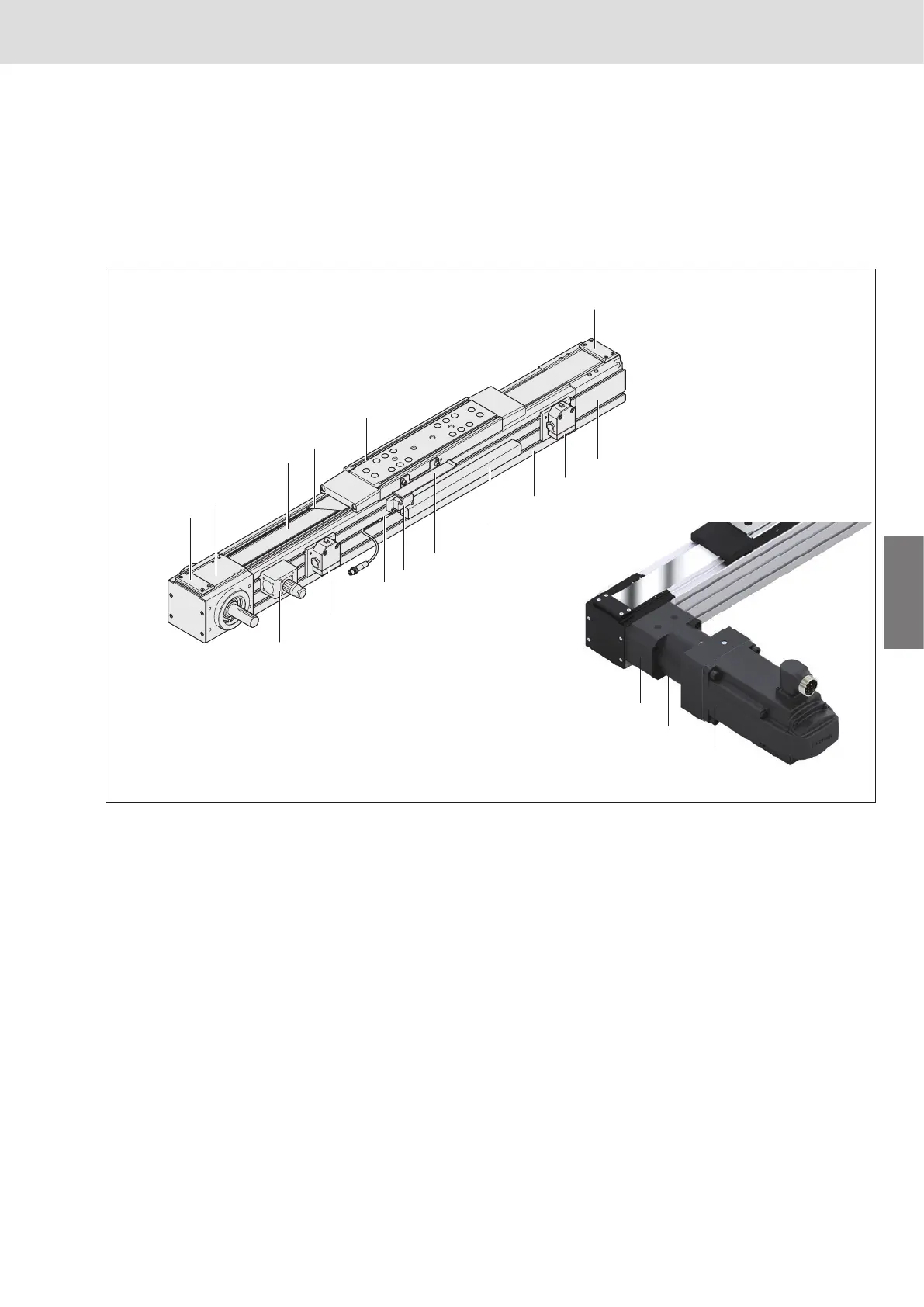

Fig�3: Components of the linear module MKR/MLR
