ENGLISH
1
6
7
1
3
3
2
3
4
5
8
R320103169/2020-08 | Linear modules MKK/MKR-xxx-NN-3 Bosch Rexroth AG 57/62
18.6 Overview of MKR-065/-080/-110/-140-NN-3

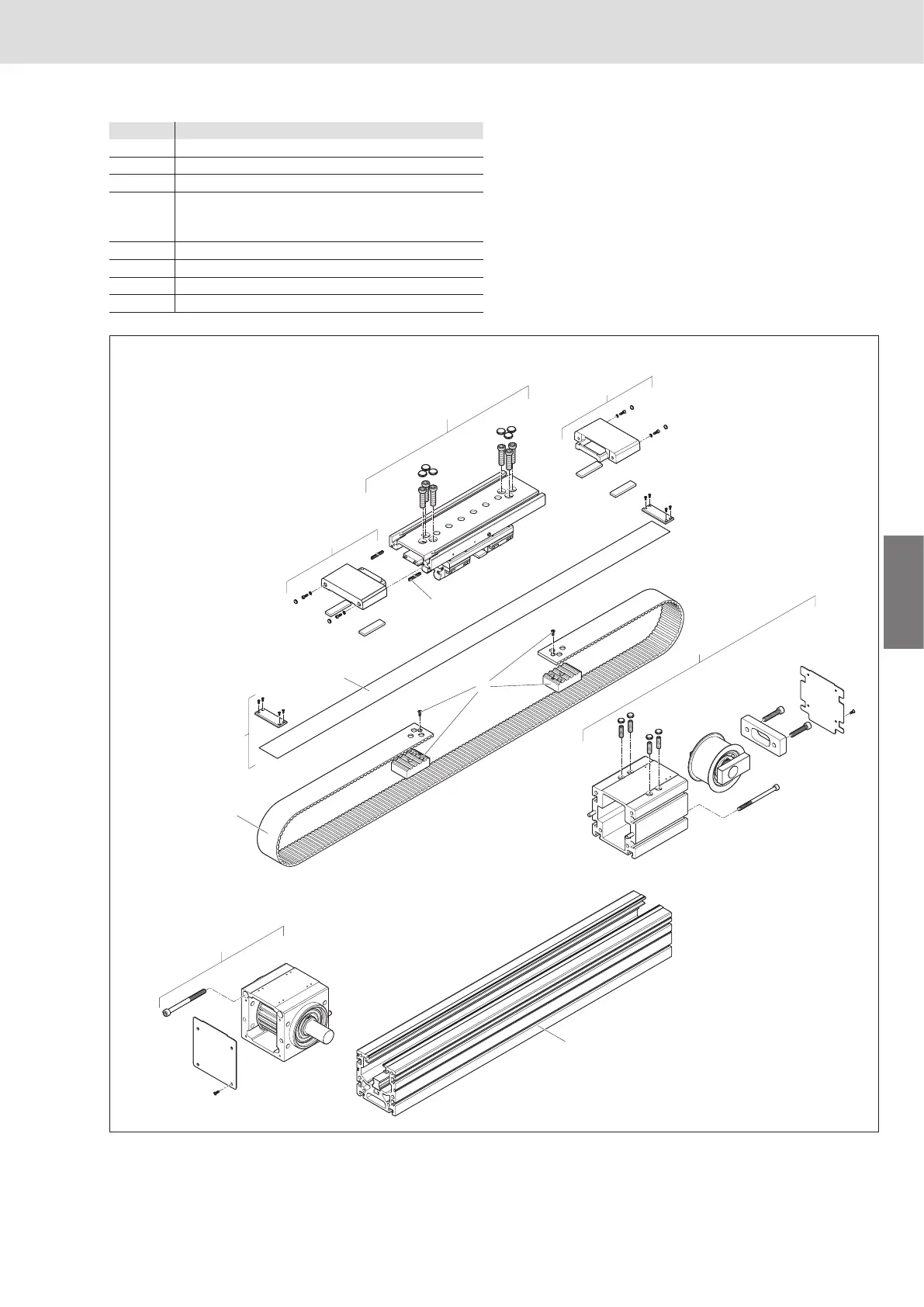

Fig�53: Overview of MKR-065/-080/-110/-140-NN-3
Position Component
1 Carriage with runner block
2 Side sealings
3 Return units
4 Cover strip (size -065: plastic cover strip
Size -080/-110/-140 corrosion-resistant steel cover
strip)
5 Toothed belt
6 Drive end enclosure
7 Idler end enclosure
8 Frame with guide rail
