– Option to copy all data to removable USB stick
Layout restrictions

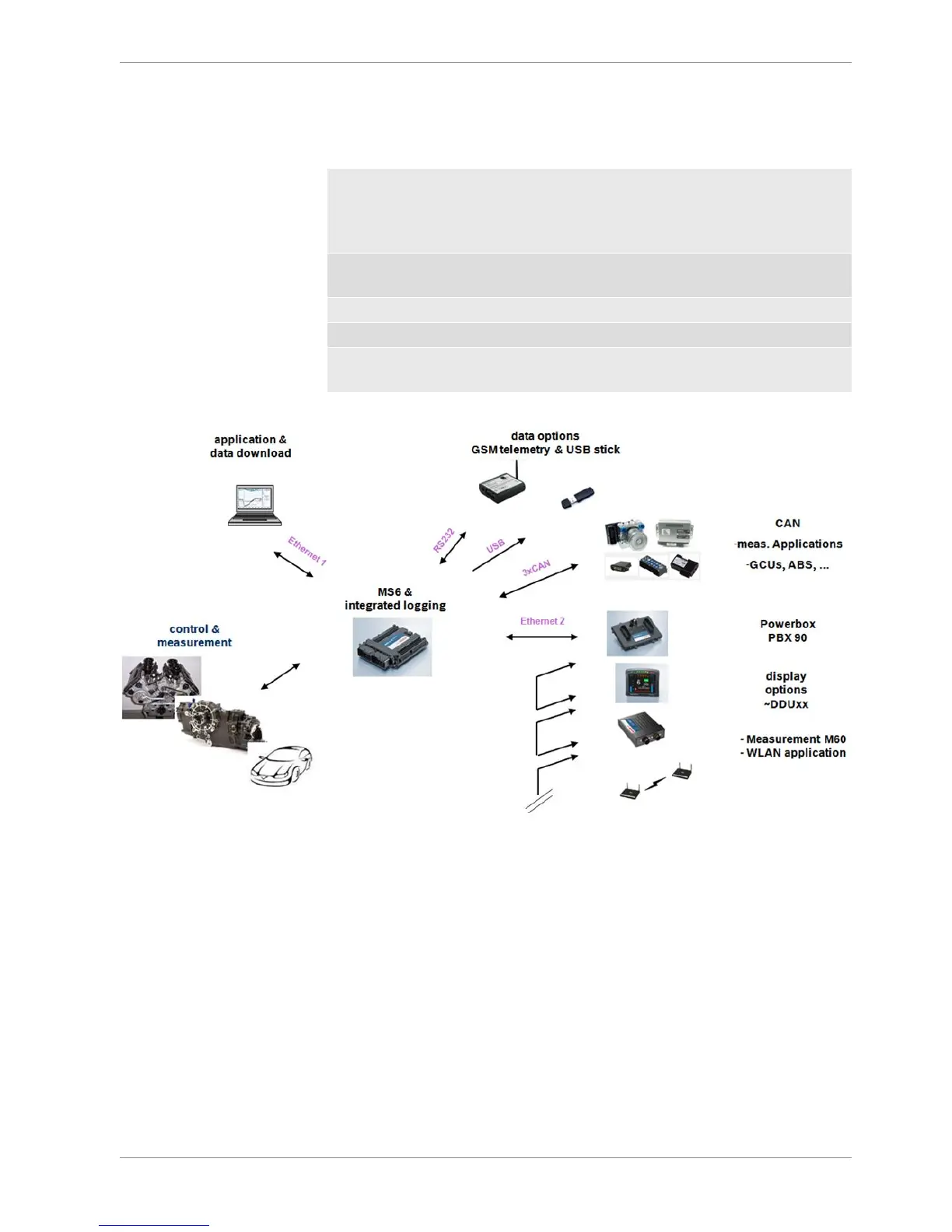

Ethernet Network MS 6, as Time master, permits the extension of two additional
devices. Using MS 6.1 F02UV01961-03, MS 6.2 F02UV01867-06,
MS 6.3 F02UV01963-03 or MS 6.4 F02UV02019-06 permits the
extension of 4 additional devices.
CAN Network Extended number of members and wiring leads extend the risk of
error frames
RS232 Limited to one additional component
USB Limited to additional Bosch Motorsport USB stick
LIN Permitted for the use of Bosch Motorsport preconfigured config-
urations
2.1.1 Structure MS 6 Devices, Licenses and Order
Numbers
To accommodate the wide range of different engine requirements and race track operat-
ing conditions, the MS 6 Motronic system is classified into the main groups high- and low
pressure injection support, subdivided into fully equipped- and functional reduced ver-
sions.
Beside the change from low- to high pressure systems, all limited functions may be activ-
ated later. The license concept is related to the individual device and the requested up-
grading.
