Pack201 | Operator Instructions | Section 3
EN | 12
© Bosch Packaging Technology, Inc.
All rights reserved 2012

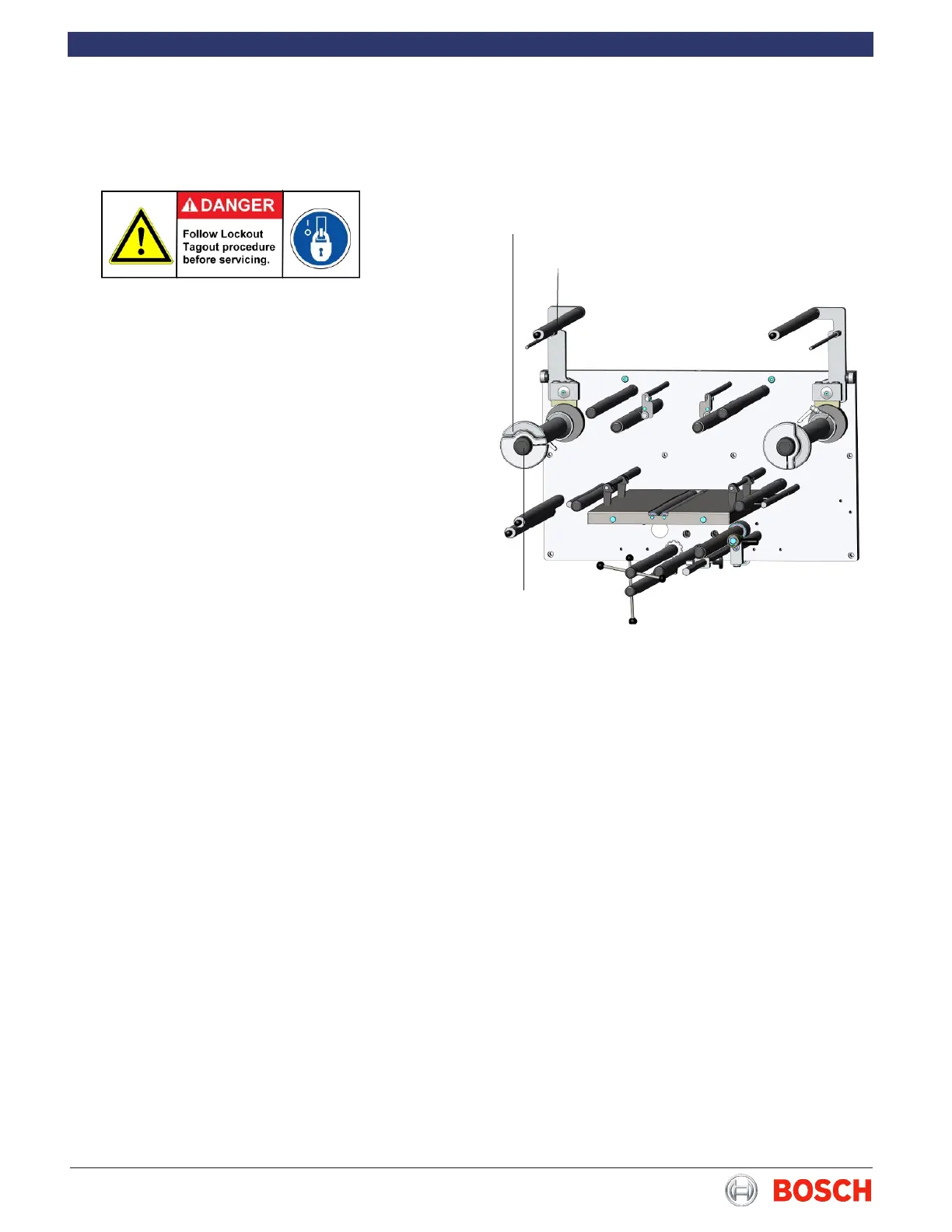

Backstand
When changing to a different type or size of lm:
1� Remove the outer chuck and the roll of lm.
2� Place a new roll of lm on the lm reel holder.
3� Note the direction of unwinding�
4� If necessary, reposition the centering cone on
the lm reel holder.
5� Replace and tighten the outer chuck against the
lm roll.
6� Use the centering knob to ne tune the lm roll
position�
7� If necessary, reposition the inclination arm and/
or roller for proper lm ow.
8� Record settings on the data sheet for future
reference�
When threading the lm:
1� Push the balance arm toward the center of the
backstand until it locks into the down position�
2� Thread the lm according to the diagram.
3� Pull out on the release rod to release the bal-
ance arm�
Chuck
Centering Knob
Balance Arm
