Former/Folding Box
Different sizes of product may require their own for-
mer� Replace the former as a unit�
To set the former wings:
1� Loosen the capscrews and set the former wings
so they are centered on the infeed chain and have
about ± 2mm of clearance for the product�
2� Make sure that the wings are parallel to each
other and to the centerline of the infeed conveyor�
If the wings are not parallel, there will be prob-
lems with the lm ow.
3� Tighten the capscrews�
Note: If product varies slightly in width, set for the
widest product�
Sealing Table/Finseal
To set the sealing table and nseal area:
1� Set the correct sealing temperature for the lm
being run�
2� Set the correct nwheel gap for each of the three
nwheels.
3� Adjust the product guides on the sealing table�
There should be about ± 2mm of clearance for the
product�

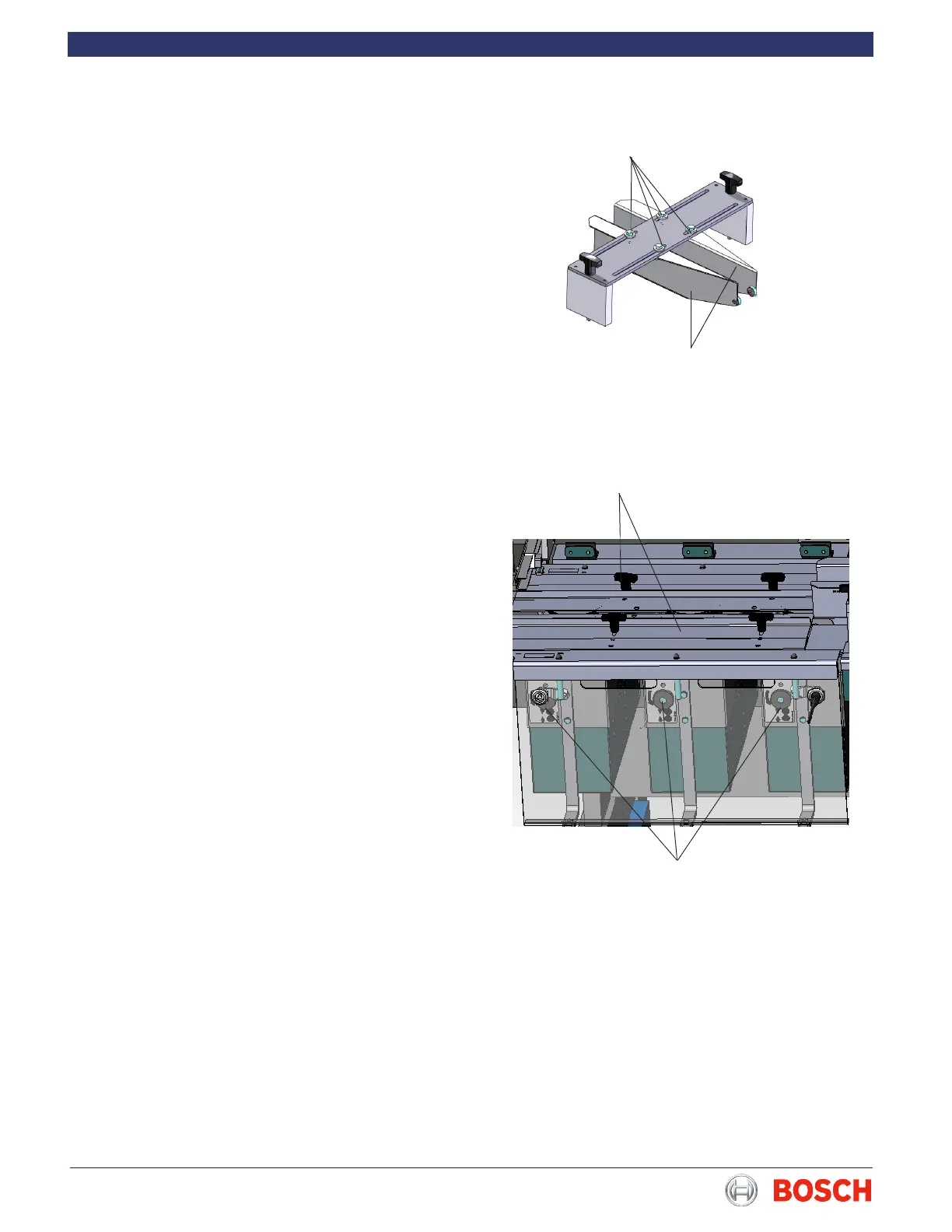

Capscrews
Former Wings
Gap Adjustment Knobs
Product Guides
