5.7 Temperature Controls
Temperature controllers are used to control
the temperature of the heated finwheels
and the crimpers� The controllers are
located inside the electrical enclosure�
The temperature setpoints are adjusted on
the HMI panel�

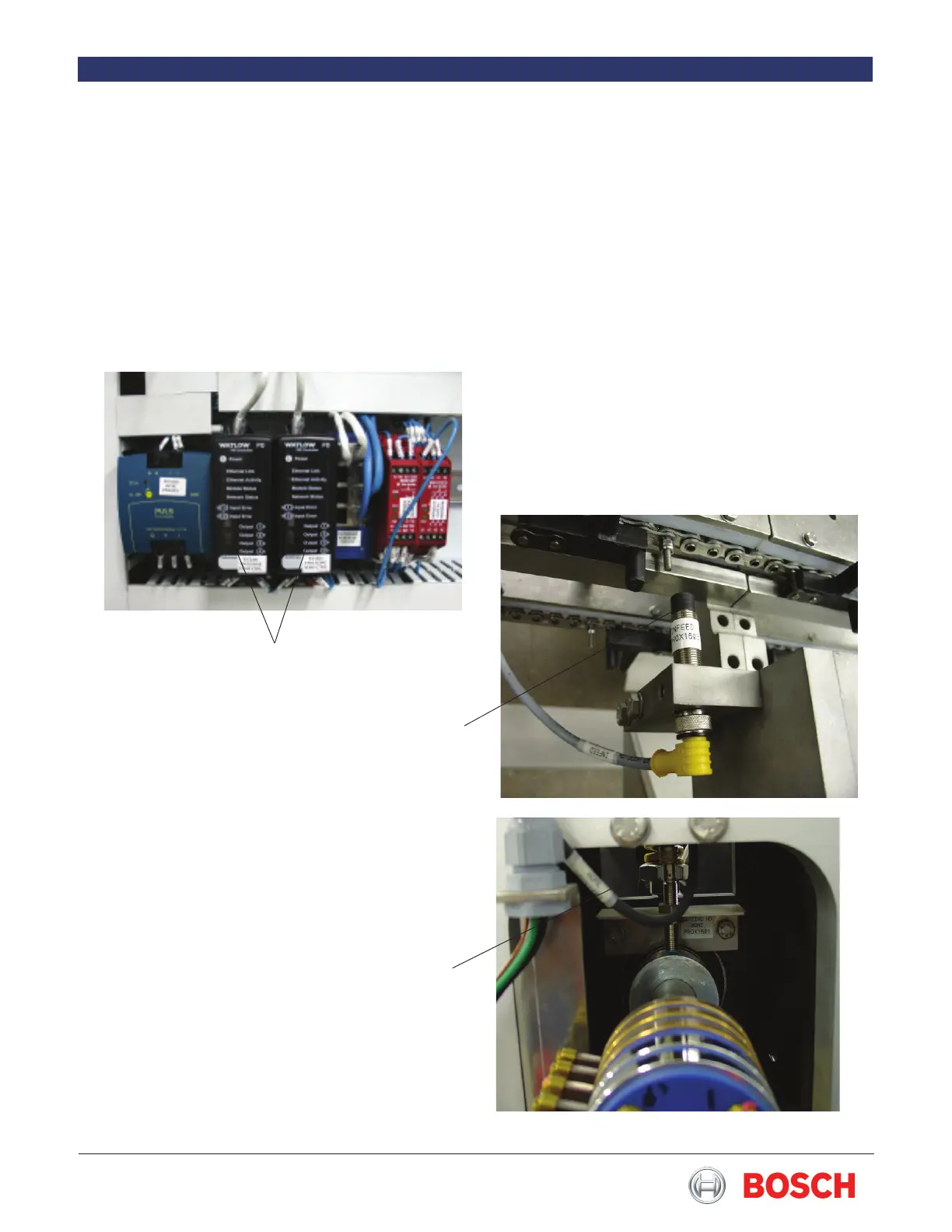

Temperature Controls
5.8 Sensors
The following sensing and monitoring
equipment is in the wrapper:
Film registration - The film registration
photoelectric eye monitors the position of
the printed image on the sealing material
and provides input for any necessary
correction�
Cutting head position - The cutting head
proximity sensor signals the wrapper when
it detects the cutting head flag�
Infeed chain position - The pusher pin
proximity sensor signals the wrapper when
it detects a pusher pin on the infeed chain�
Infeed chain position
sensor
Cutting head position
sensor
